Suzuki GSF650 Service Manual

Body Structure: 9E-1
Body and Acc essories
Body Structure
Repair Instructions

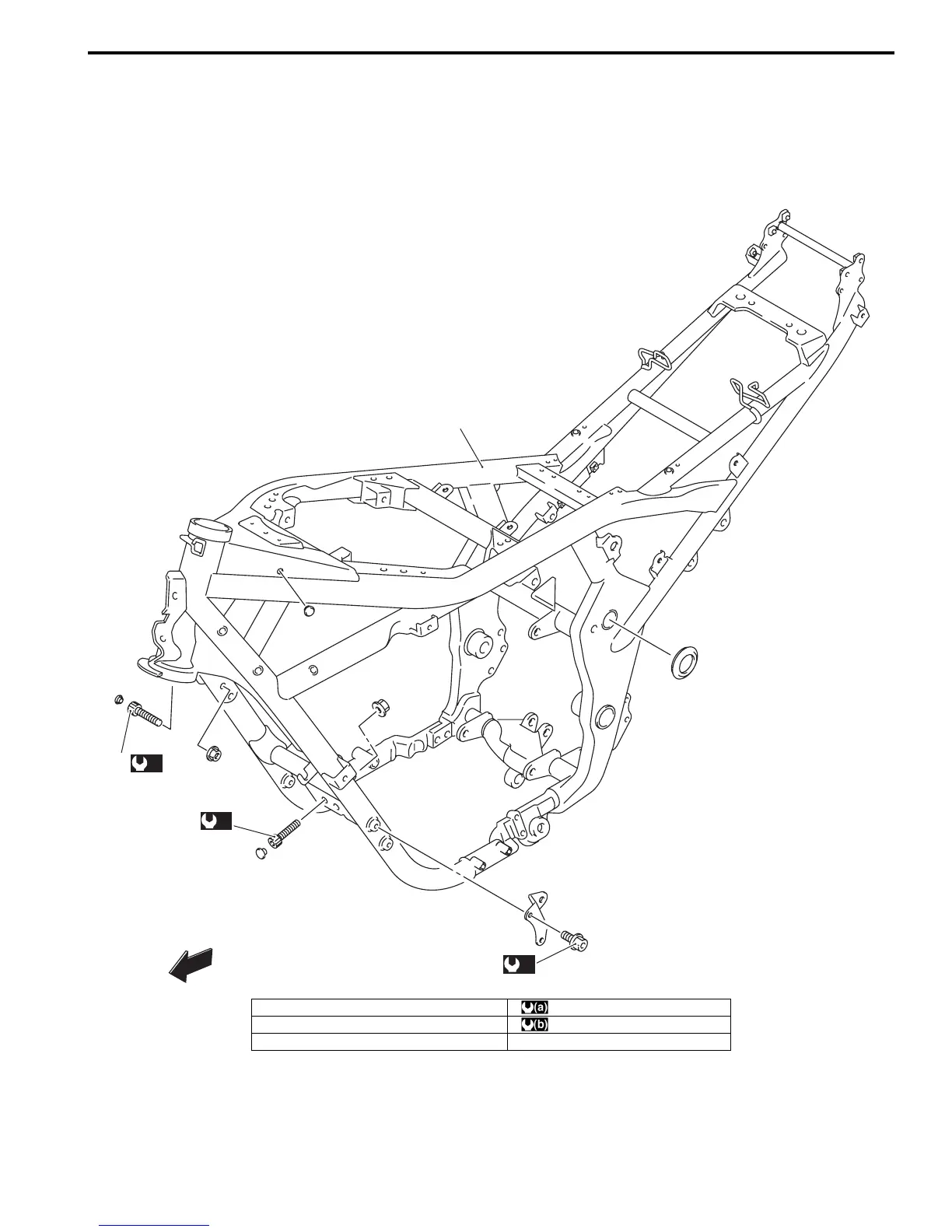

Body Frame Construction
B817H29506001
1
(a)
2
(a)
2
(b)
3
FWD
FWD
I717H1950001-02
1. Frame : 50 N⋅m (5.0 kgf-m, 36.0 lb-ft)
2. Frame down tube bolt : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
3. Engine mount No.1 bracket bolt

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
