4E-33 ABS:
NOTE
• Inspect the rear brake in the same manner of front brake.
• If the ABS does not function, the cause may lie in the ABS control unit/HU.
• In checking the rear brake at the time of pressure reduction drive (4/7), “brake lever” appears on the
screen. This is because the present screen shares with other model having front brake only.
Therefore, in the case of rear brake pedal equipped vehicle, ignore this instruction and operate the
rear brake pedal.
7) Close the SDS tool and turn the ignition switch OFF.
8) Disconnect the SDS tool and install the right frame cover.

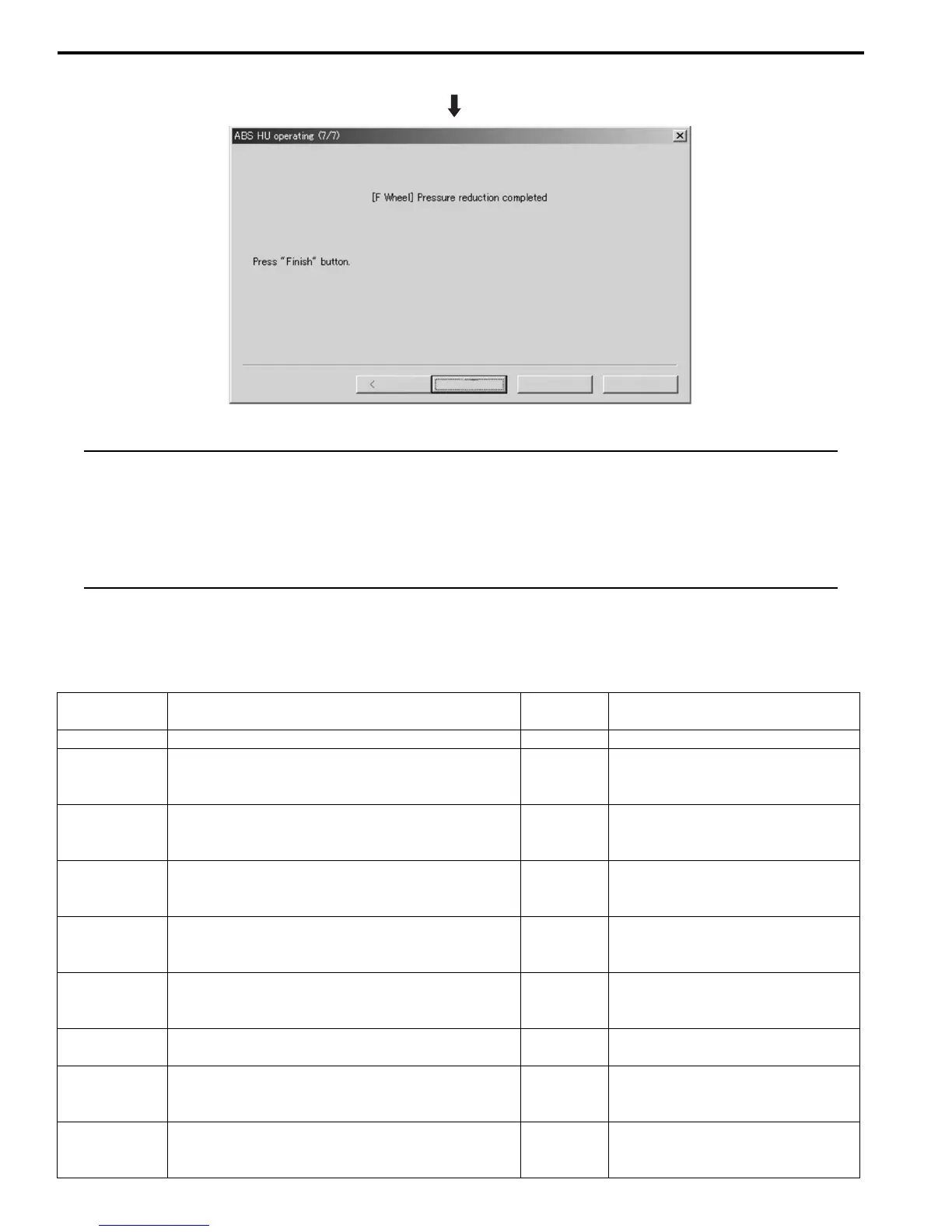

DTC Table
B817H24504008
Return Finish Cancel Help
I718H1450062-01
DTC Malfunction cause
Indicator
status
Reference
None Normal ON *
1
—
13 (C1613) Wheel speed sensor rotor malfunction (F) ON
Refer to “DTC “13” (C1613): Wheel
Speed Sensor Rotor Malfunction (F)
(Page 4E-35)”.
14 (C1614) Wheel speed sensor rotor malfunction (R) ON
Refer to “DTC “14” (C1614): Wheel
Speed Sensor Rotor Malfunction
(R) (Page 4E-37)”.
22 (C1622) ABS actuator circuit malfunction (F) ON
Refer to “DTC “22” (C1622): ABS
Actuator Circuit Malfunction (F)
(Page 4E-39)”.
23 (C1623) ABS actuator circuit malfunction (R) ON
Refer to “DTC “23” (C1623): ABS
Actuator Circuit Malfunction (R)
(Page 4E-40)”.
25 (C1625) Wheel speed sensor related malfunction ON
Refer to “DTC “25” (C1625): Wheel
Speed Sensor Related Malfunction
(Page 4E-42)”.
35 (C1635) ABS motor malfunction ON
Refer to “DTC “35” (C1635): ABS
Motor Malfunction (Page 4E-44)”.
41 (C1641) Wheel speed sensor signal malfunction (F) *
2
ON
Refer to “DTC “41” (C1641): Wheel
Speed Sensor Signal Malfunction
(F) (Page 4E-46)”.
42 (C1642) Wheel speed sensor circuit open (F) *
2
ON
Refer to “DTC “42” (C1642): Wheel
Speed Sensor Circuit Open (F)
(Page 4E-47)”.
