Suzuki GSF650 Service Manual

1I-3 Starting System:
Repair Instructions

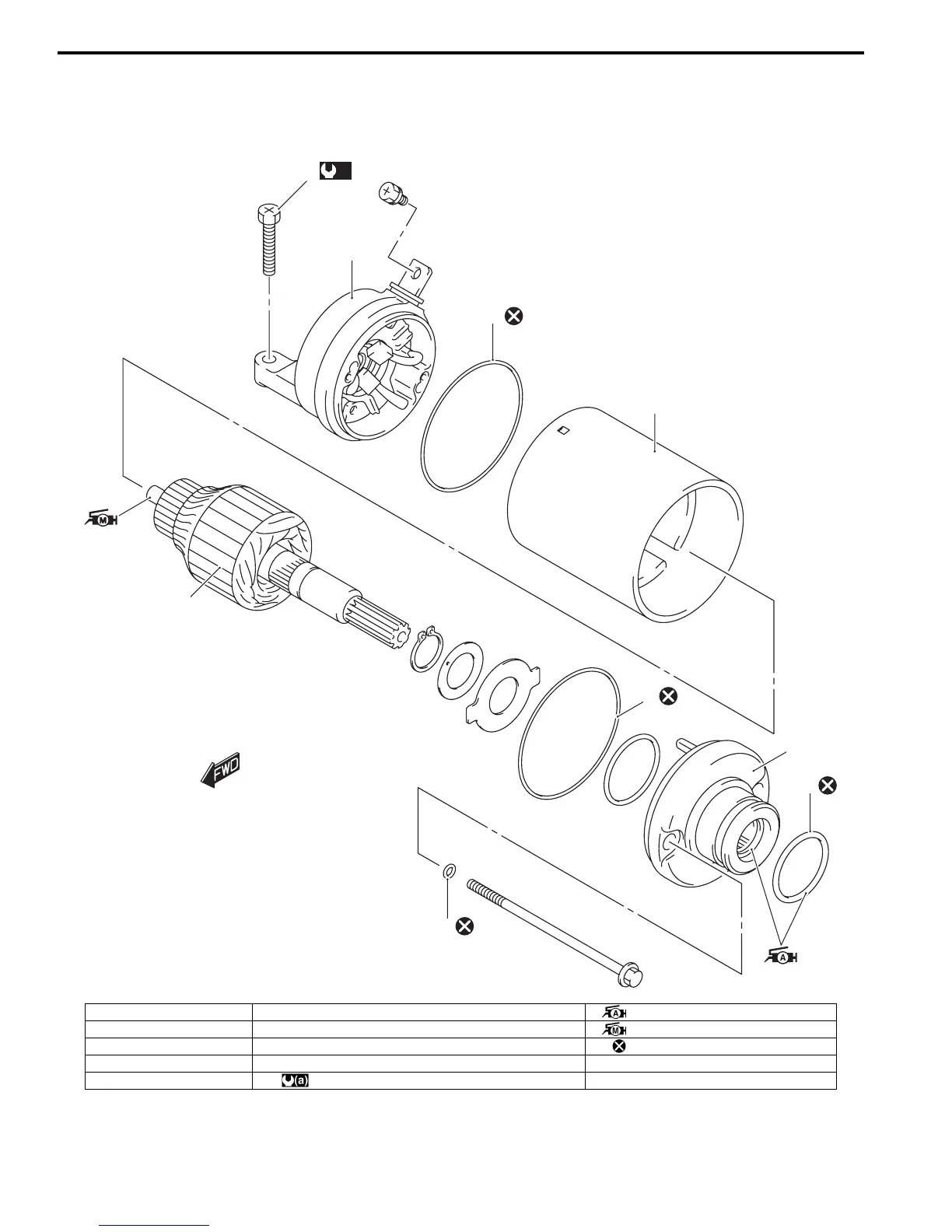

Starter Motor Components
B817H21906001
(a)
9
8
6
1
7
2
3
4
5
I717H1190026-03
1. O-ring 6. Starter motor case : Apply grease to sliding surface.
2. Housing end (Inside) 7. O-ring : Apply moly past to sliding surface.
3. O-ring 8. Housing end assembly (Outside) : Do not reuse.
4. O-ring 9. Starter motor lead wire nut
5. Armature : 5 N⋅m (0.5 kgf-m, 3.5 lb-ft)

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
