Suzuki GSF650 Service Manual

4B-1 Front Brakes:
Brake
Front Brakes
Repair Instructions

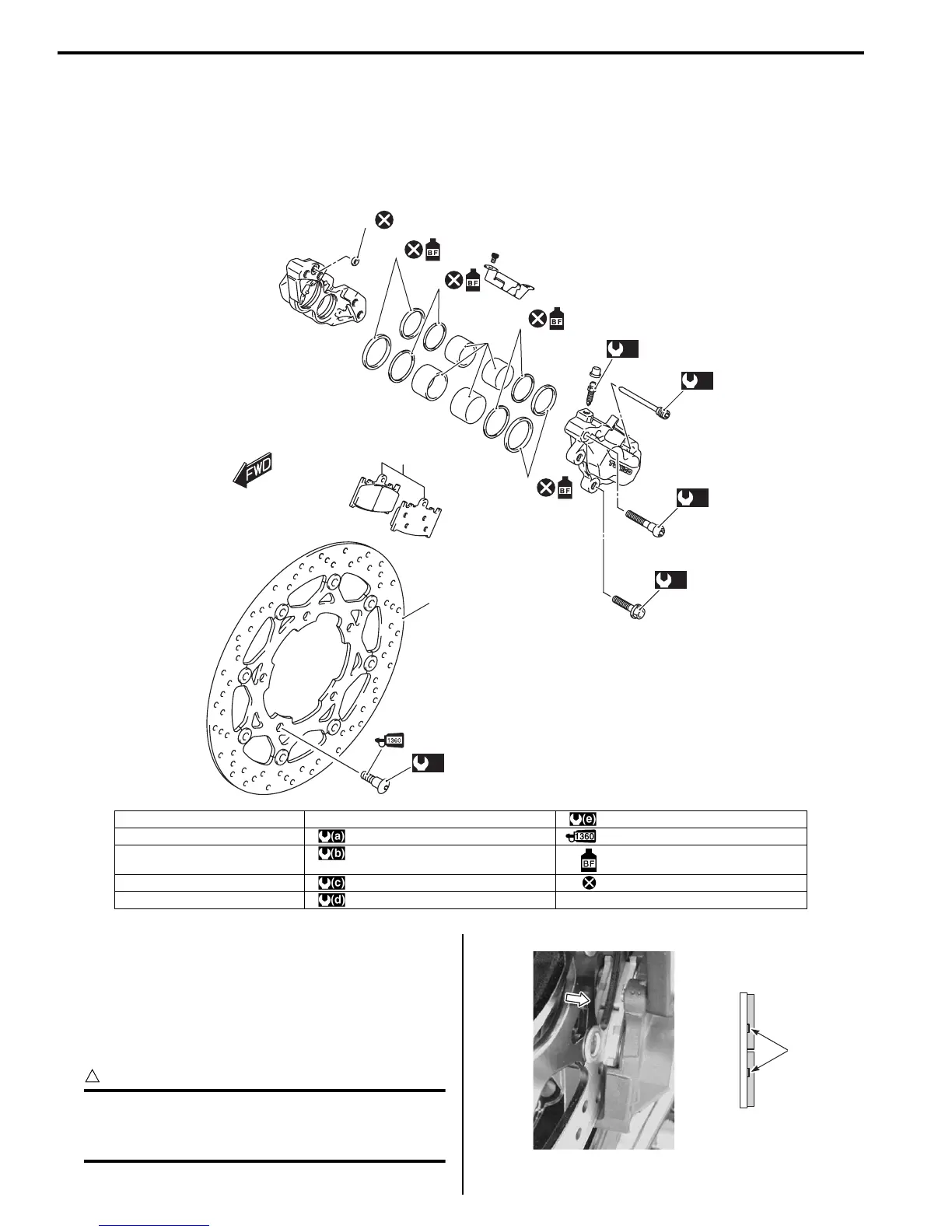

Front Brake Components
B817H24206001
Front Brake Pad Inspection
B817H24206002
The extent of brake pads wear can be checked by
observing the grooved limit line “A” on the pads. When
the wear exceeds the grooved limit line, replace the
pads with new ones. Refer to “Front Brake Pad
Replacement (Page 4B-2)”.
CAUTION
!
Replace the brake pad as a set, otherwise
braking performance will be adversely
affected.
1,
2,
3,
3,
2,
(a)
(b)
(c)
(d)
5
6
(e)
4
I649G1420001-05
1. O-ring 6. Front brake disc : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
2. Piston seal : 8.5 N⋅m (0.85 kgf-m, 6.1 lb-ft) : Apply thread lock to thread part.
3. Dust seal : 16 N⋅m (1.6 kgf-m, 11.5 lb-ft) : Apply brake fluid.
4. Piston : 22 N⋅m (2.2 kgf-m, 16.0 lb-ft) : Do not reuse.
5. Front brake pad set : 26 N⋅m (2.5 kgf-m, 18.0 lb-ft)
“A”
I717H1420002-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
