Suzuki GSF650 Service Manual

Lighting Systems: 9B-6

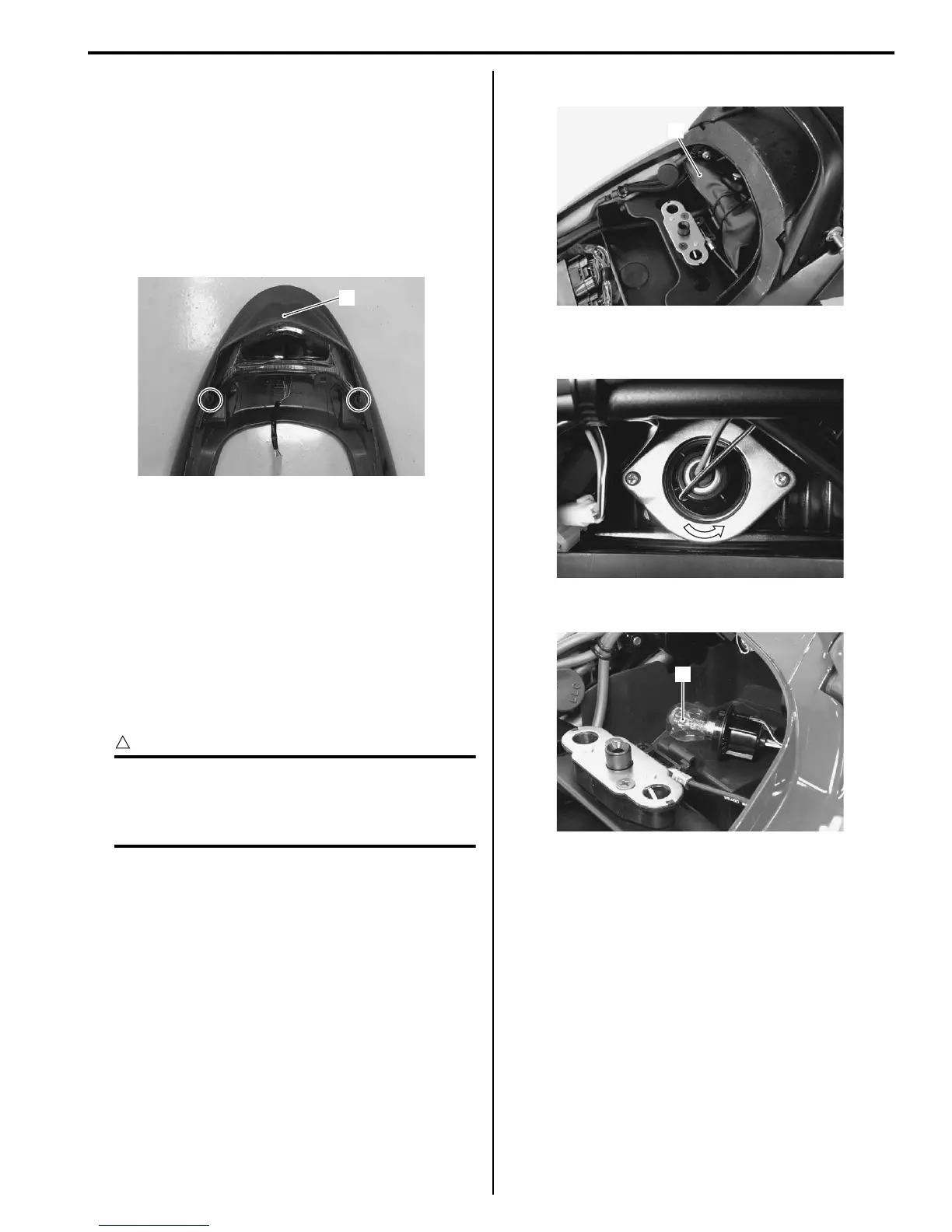

Rear Combination Light Removal and
Installation
B817H29206008
Removal
1) Remove the seat tail cover. Refer to “Exterior Parts
Removal and Installation (GSF650/S/A/SAK7) in
Section 9D (Page 9D-6)”.
2) Remove the rear combination light (1) from the seat
tail cover.
Installation
Install the rear combination right in the reverse order of
removal. Pay attention to the following point:
• Tighten the rear combination light mounting bolts to
the specified torque.
Tightening torque
Rear combination light mounting bolt: 2 N·m (0.2
kgf-m, 1.5 lbf-ft)
Brake Light Bulb / Taillight Bulb Replacement
B817H29206009
CAUTION
!
If you touch the bulb with your bare hands,
clean the bulb with a cloth moistened with
alcohol or soapy water to prevent premature
bulb failure.
1) Remove the seat. Refer to “Exterior Parts Removal
and Installation (GSF650/S/A/SAK7) in Section 9D
(Page 9D-6)”.
2) Remove the tool set (1).
3) Remove the bulb socket by turning it
counterclockwise.
4) Replace the bulb (2).
5) Reinstall the removed parts.
1
I718H1920018-01
1
I717H1920007-01
I718H1920020-01
2
I718H1920021-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
