9D-8 Exterior Parts:
5) Disconnect the turn signal lead wire couplers and
remove the turn signal lead wire clamps and turn
signal lights (4), left and right. Refer to “Front Turn
Signal Light Removal and Installation in Section 9B
(Page 9B-8)”.
6) Remove the cowling (5) along with the lower panel
(6).
7) Remove the lower panel (6) from the cowling (5).
8) Disconnect the headlight and position light couplers.
9) Remove the headlight assembly (7).
10) Remove the cowling brace (8).
Installation
Install the cowling and cowling brace in the reverse order
of removal. Pay attention to the following point:
• After installing, be sure to inspect the headlight beam.
Refer to “Headlight Beam Adjustment (GSF650/S/A/
SAK7) in Section 9B (Page 9B-4)”.
Front Fender
Refer to “Front Fork Removal and Installation in Section
2B (Page 2B-2)”.
Seat Height Adjustment
B817H29406008
Adjust the seat height in the following procedures:
1) Remove the seat assembly. Refer to “Exterior Parts
Removal and Installation (GSF650/S/A/SAK7)
(Page 9D-6)”.
2) Remove the seat height adjust dampers.

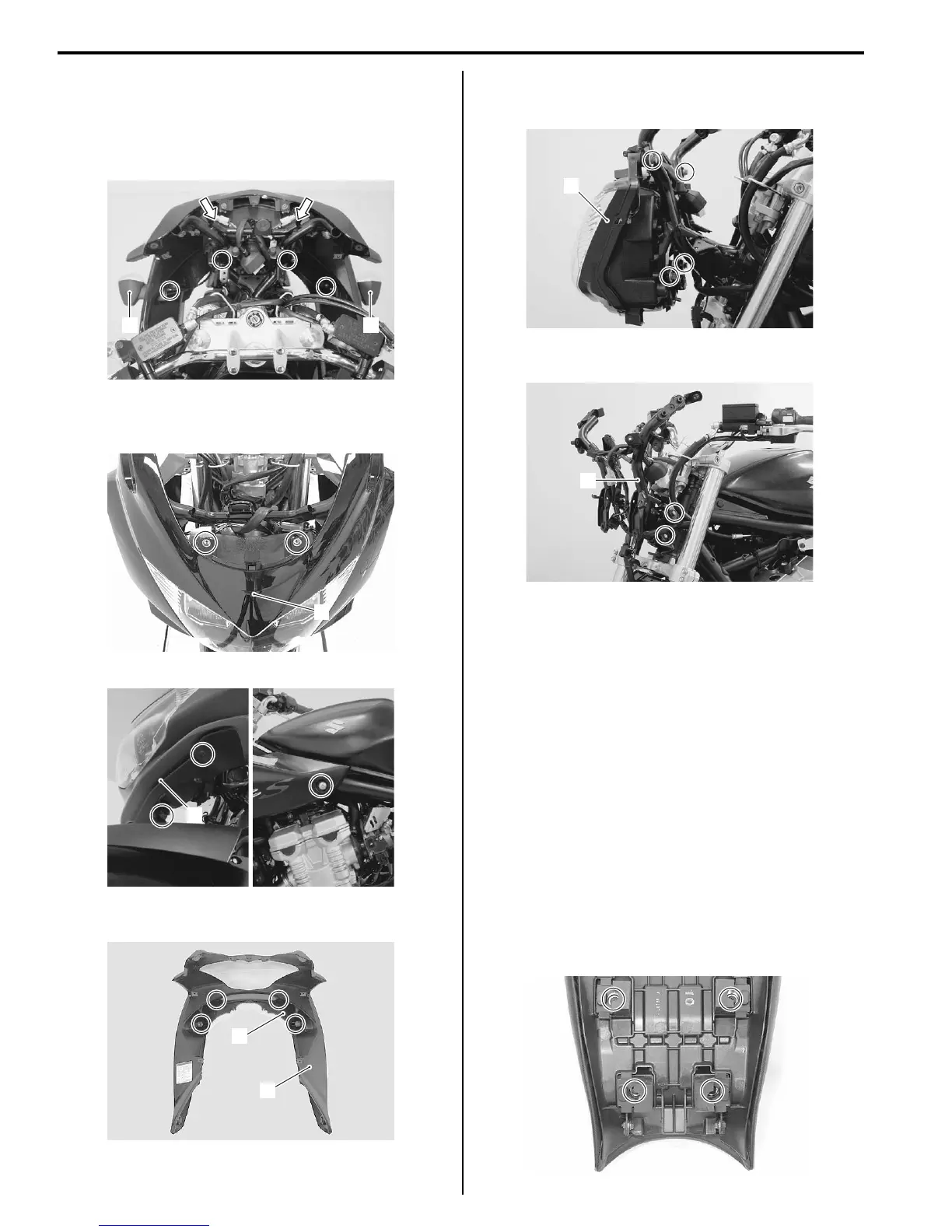

4 4
I717H1940012-01
5
I718H1940015-01
6
I717H1940009-01
6
5
I718H1940017-01
7
I717H1940010-01
8
I717H1940011-01
I718H1940020-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
