4E-35 ABS:
DTC “13” (C1613): Wheel Speed Sensor Rotor Malfunction (F)
B817H24504009
Troubleshooting
Possible Cause
• Front wheel speed sensor rotor distortion
• Faulty front wheel speed sensor or wiring discontinuity, etc.

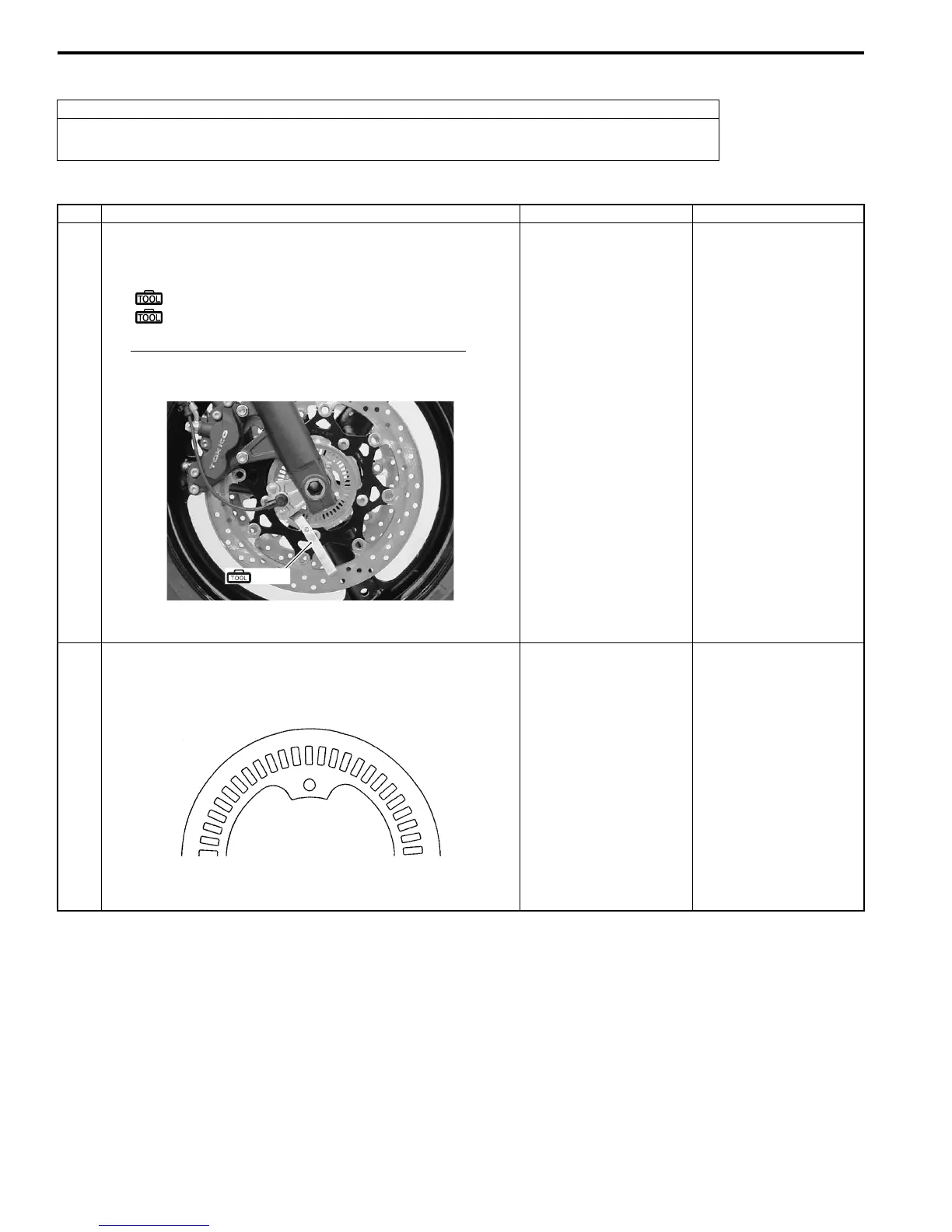

Step Action Yes No
1 1) Inspect the clearance between the front wheel speed
sensor and sensor rotor using the thickness gauge.
Special tool
(A): 09900–20803 (Thickness gauge)
(B): 09900–20806 (Thickness gauge)
Wheel speed sensor – sensor rotor clearance
0.3 – 1.5 mm (0.012 – 0.059 in)
Is the clearance OK?
Go to Step 2. Adjust the clearance.
2 1) Inspect the front wheel speed sensor rotor for damage
and check that no foreign objects are caught in the rotor
openings.
Is the sensor rotor OK?
Go to Step 3. Clean or replace the
sensor rotor.
(A), (B)
I717H2450009-01
I718H1450064-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
