3A-6 Drive Chain / Drive Train / Drive Shaft:
Wheel Damper
Inspect the dampers for wear and damage. Replace the
damper if there is anything unusual.
Drive Chain
Refer to “Drive Chain Inspection and Adjustment in
Section 0B (Page 0B-17)”.
Sprocket Mounting Drum Dust Seal / Bearing
Removal and Installation
B817H23106005
Removal
1) Remove the rear wheel assembly. Refer to “Rear
Wheel Assembly Removal and Installation (GSF650/
S/U/SUK7) in Section 2D (Page 2D-11)”.
2) Remove the rear sprocket mounting drum assembly
from the rear wheel. Refer to “Rear Wheel Dust Seal
/ Bearing Removal and Installation in Section 2D
(Page 2D-13)”.

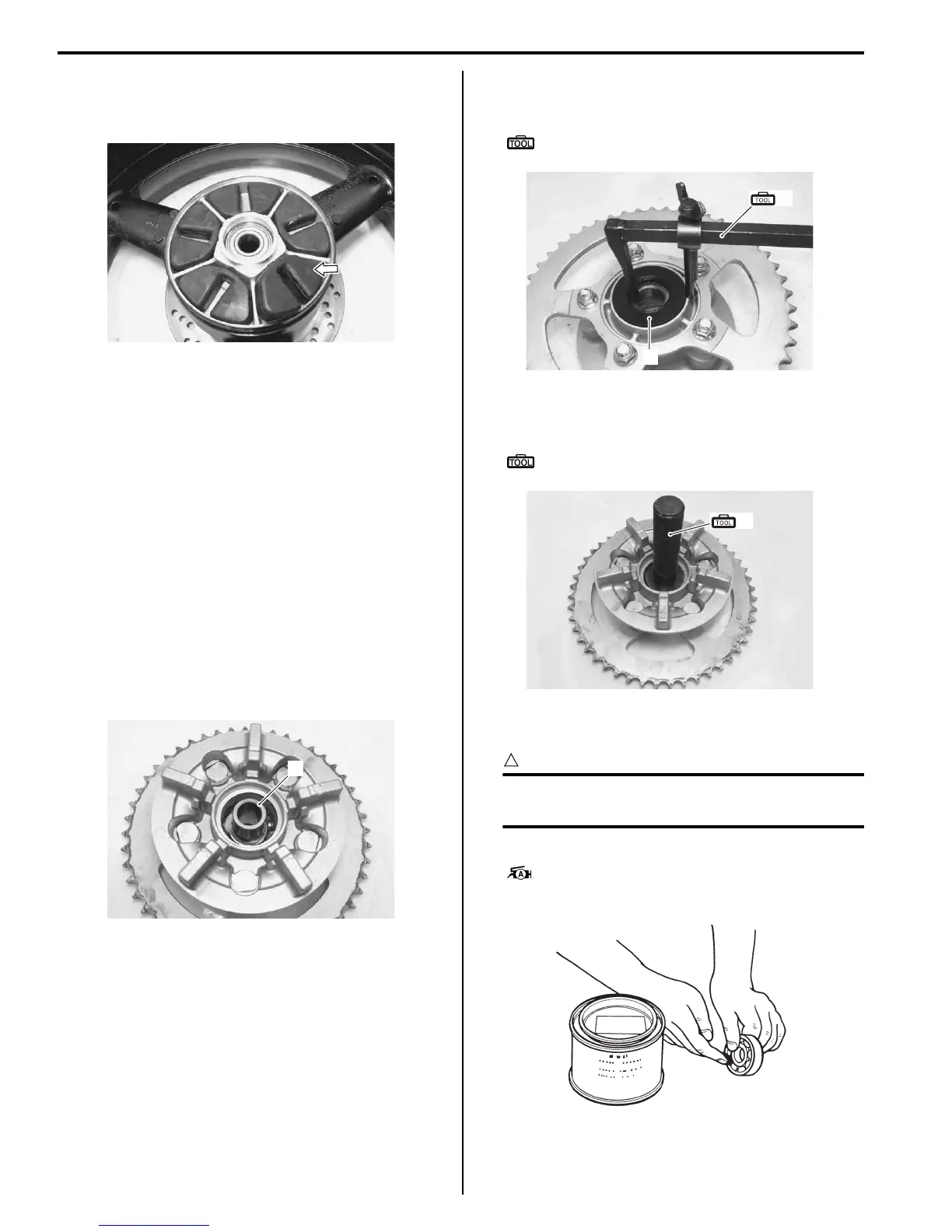

3) Remove the retainer (1).
4) Remove the sprocket mounting drum dust seal (2)
using the special tool.
Special tool
(A): 09913–50121 (Oil seal remover)
5) Remove the sprocket mounting drum bearing using
the special tool.
Special tool
(B): 09913–70210 (Bearing installer set)
Installation
CAUTION
!
The removed dust seal and bearing must be
replaced with new ones.
1) Apply grease to the bearing before installing.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
I717H1310023-01
1
I717H1310024-01
(A)
2
I717H1310025-01
(B)
I717H1310026-02
I649G1310020-02

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
