5C-5 Clutch:

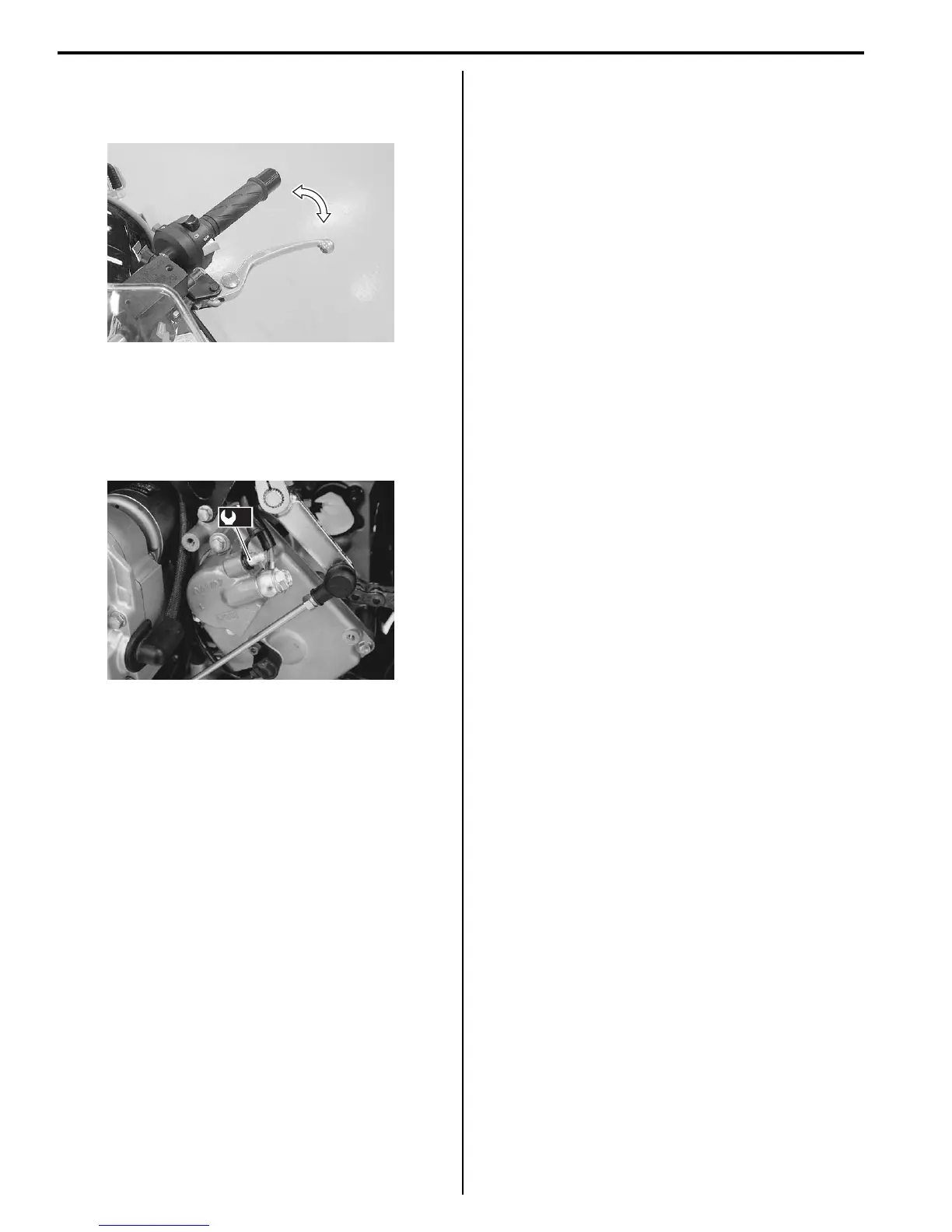

7) Loosen the air bleeder valve and pump the clutch
lever until old clutch fluid flows out of the bleeder
system.
8) Close the air bleeder valve and disconnect a clear
hose.
Tightening torque
Air bleeder valve (Clutch) (a): 6 N·m (0.6 kgf-m,
4.5 lbf-ft)
9) Fill the reservoir with new fluid to the upper mark of
the reservoir.
10) Reinstall the removed parts.
Clutch Hose Removal and Installation
B817H25306006
Removal
1) Drain clutch fluid. Refer to “Clutch Fluid
Replacement (Page 5C-4)”.
2) Remove the fuel tank. Refer to “Fuel Tank Removal
and Installation in Section 1G (Page 1G-9)”.
3) Remove the left frame cover and engine sprocket
outer cover. Refer to “Exterior Parts Removal and
Installation (GSF650/S/A/SAK7) in Section 9D
(Page 9D-6)” and “Engine Sprocket Removal and
Installation in Section 3A (Page 3A-2)”.
4) Remove the clutch hose as shown in the clutch hose
routing diagram. Refer to “Clutch Hose Routing
Diagram (Page 5C-2)”.
Installation
1) Install the clutch hose as shown in the clutch hose
routing diagram. Refer to “Clutch Hose Routing
Diagram (Page 5C-2)”.
2) Bleed air from the clutch system. Refer to “Air
Bleeding from Clutch Fluid Circuit (Page 5C-3)”.
3) Reinstall the removed parts.
I718H1530010-01
(a)
I717H1530029-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
