Suzuki GSF650 Service Manual

1D-58 Engine Mechanical:
Engine Bottom Side Assembly
B817H21406036

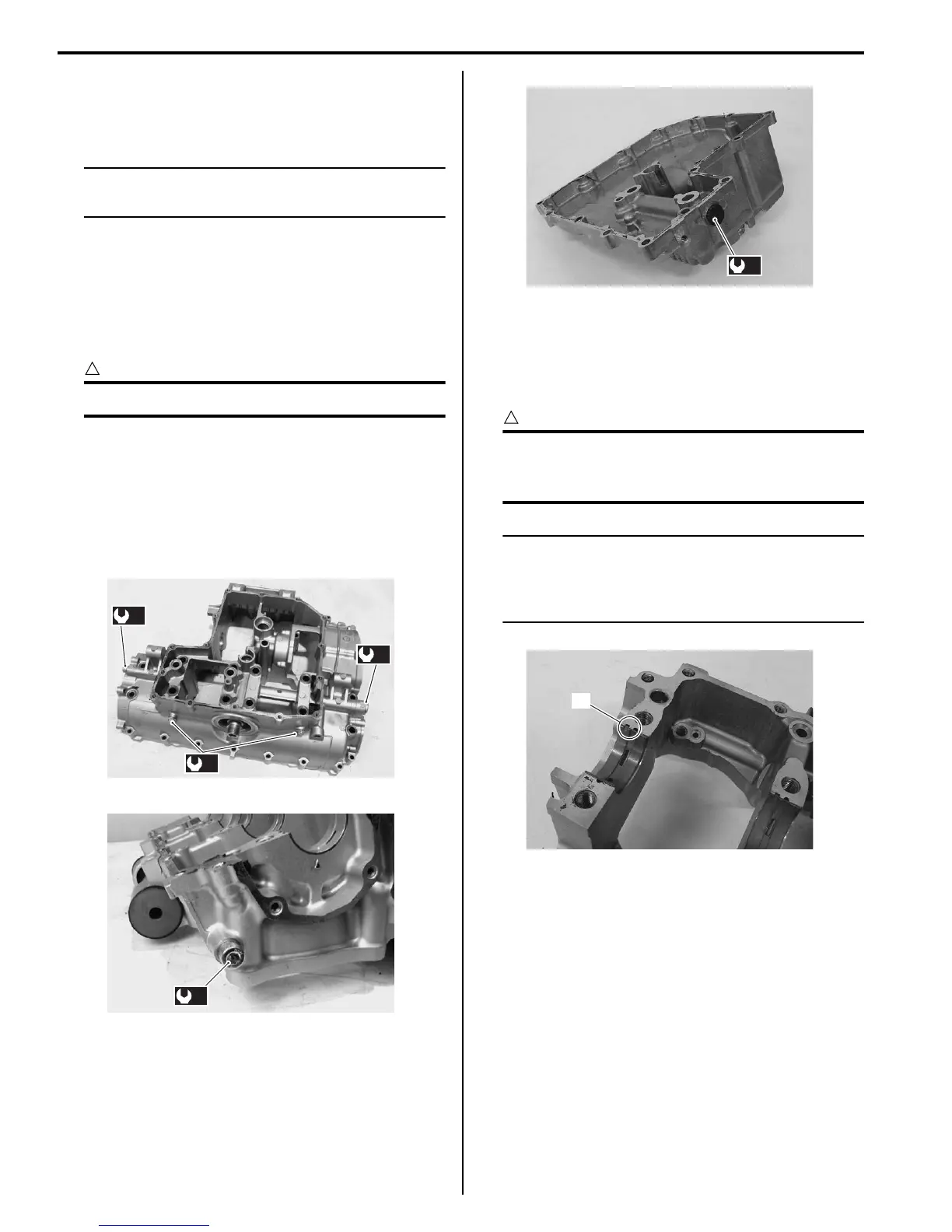

Assembly the engine bottom side in the reverse of
disassembly. Pay attention to the following points:
NOTE
Apply engine oil to each running and sliding
part before reassembling.
Oil Seal / Bearing
• Install the oil seals and bearings. Refer to
“Transmission Installation in Section 5B (Page 5B-5)”.
Oil Gallery Plug
• Tighten each plug to the specified torque.
CAUTION
!
Use each new gasket.
Tightening torque
Oil gallery plug (M6 and M8) (a): 10 N·m (1.0 kgf-
m, 7.0 lbf-ft)
Oil gallery plug (M12) (b): 15 N·m (1.5 kgf-m, 11.0
lbf-ft)
Oil gallery plug (M16) (c): 35 N·m (3.5 kgf-m, 25.5
lbf-ft)
Crankshaft Journal Bearing
• When fitting the crankshaft journal bearings to the
upper and lower crankcases, be sure to fix the stopper
part “A” first and press the other end.
CAUTION
!
Do not touch the bearing surfaces with your
hands. Grasp by the edge of the bearing
shell.
NOTE
Inspect and select the crankshaft journal
bearing if necessary. Refer to “Crankshaft
Journal Bearing Inspection and Selection
(Page 1D-71)”.
(a)
(a)
(c)
I717H1140156-01
(a)
I717H1140157-01
(b)
I718H1140202-01
“A”
I718H1140203-01
