Suzuki GSF650 Service Manual

4C-1 Rear Brakes:
Brake
Rear Brakes
Repair Instructions

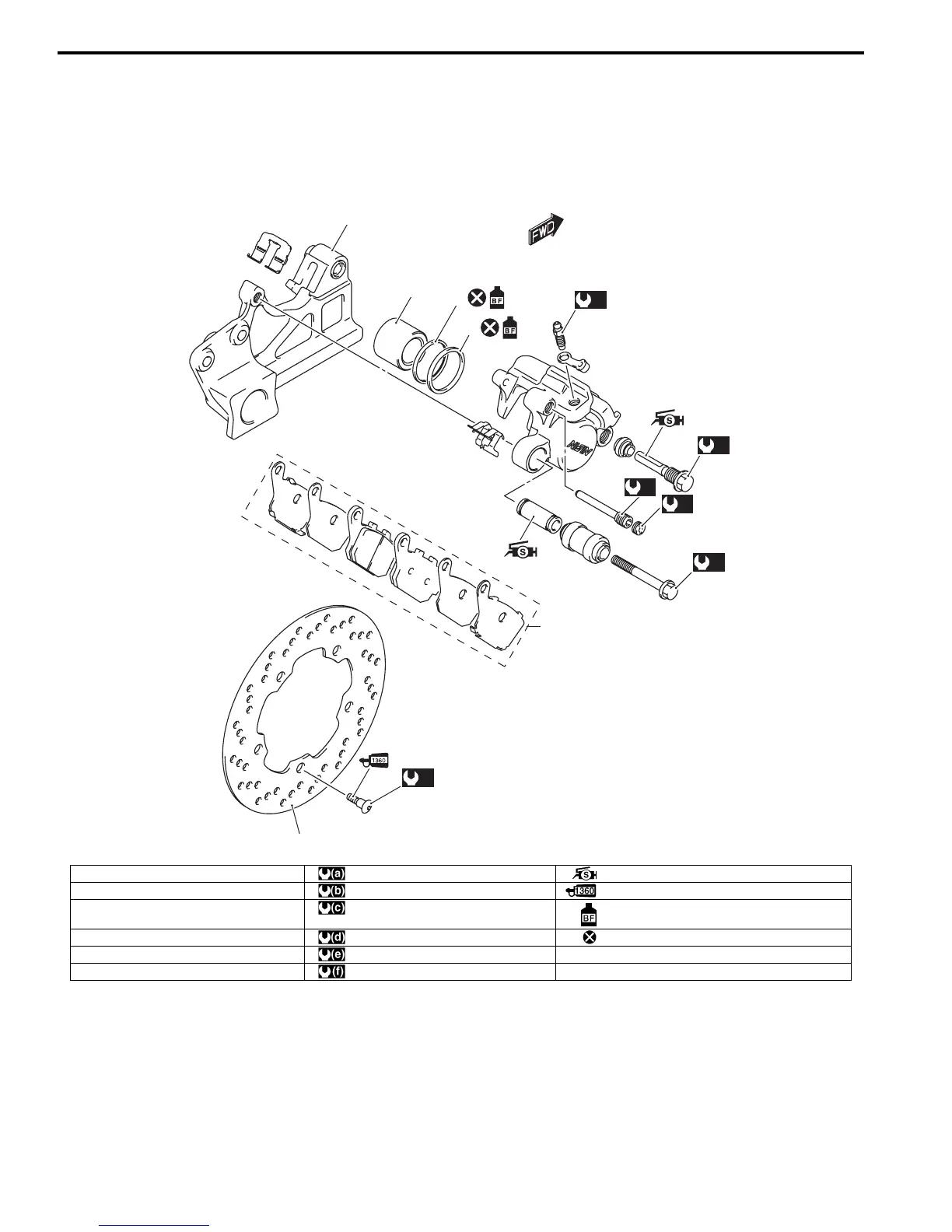

Rear Brake Components
B817H24306001
1
2
4,
3,
(a)
(b)
(c)
(d)
(e)
(f)
6
5
I649G1430001-05
1. Rear caliper bracket : 6 N⋅m (0.6 kgf-m, 4.5 lb-ft) : Apply silicone grease to sliding surface.
2. Piston : 27 N⋅m (2.7 kgf-m, 19.5 lb-ft) : Apply thread lock to thread part.
3. Piston seal : 17 N⋅m (1.7 kgf-m, 12.5 lb-ft) : Apply brake fluid.
4. Dust seal : 2.5 N⋅m (0.25 kgf-m, 1.8 lb-ft) : Do not reuse.
5. Rear brake pad/Shim set : 22 N⋅m (2.2 kgf-m, 16.0 lb-ft)
6. Rear brake disc : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
