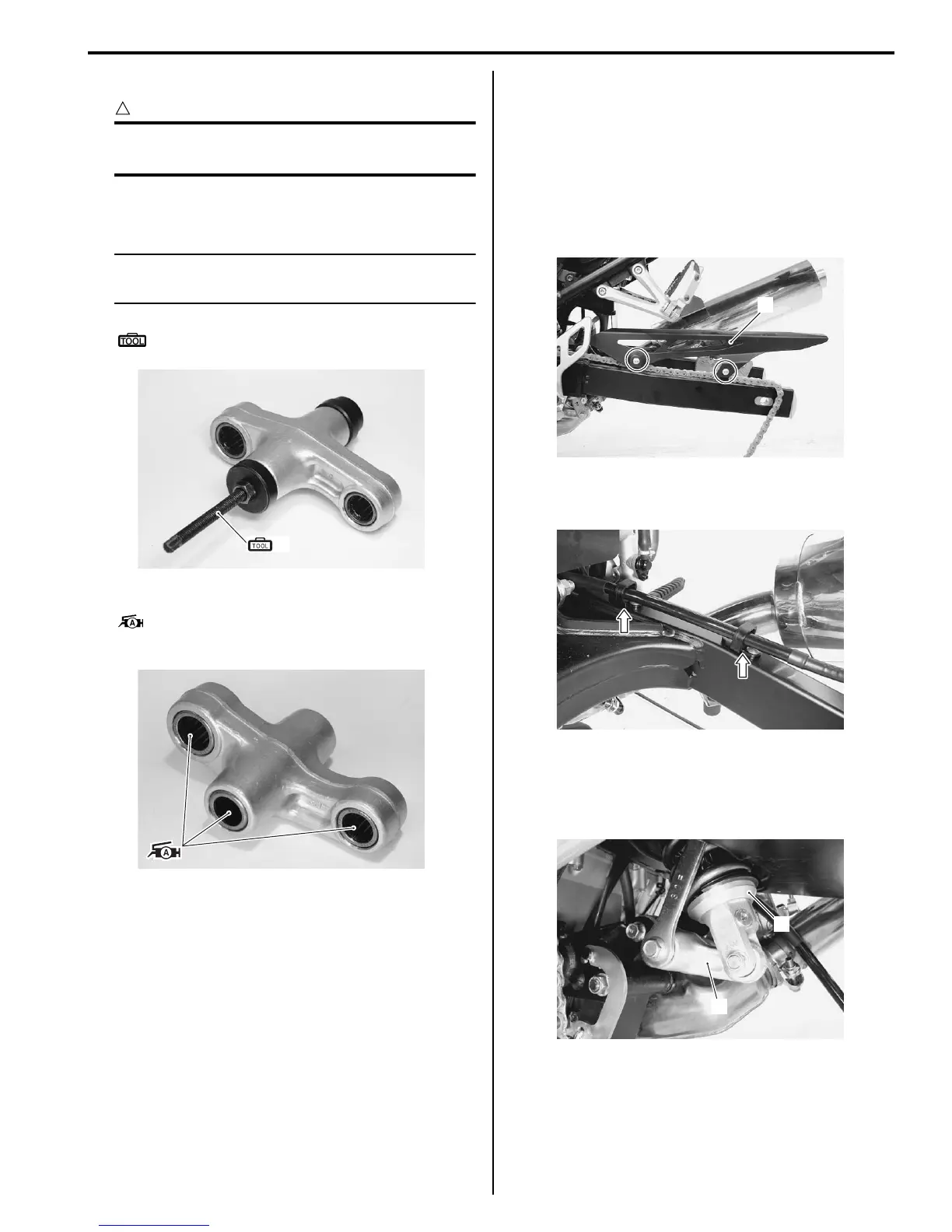

Rear Suspension: 2C-8
Installation
CAUTION
!
The removed bearings must be replaced with
new ones.
1) Press the bearings into the cushion lever with the
special tool.
NOTE
When installing the bearing, stamped mark
on the bearing must face outside.
Special tool
(A): 09924–84521 (Bearing installer set)
2) Apply grease to the bearings.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
3) Install the cushion lever. Refer to “Rear Shock
Absorber Removal and Installation (Page 2C-3)”.
Swingarm / Cushion Rod Removal and
Installation
B817H22306011
Removal
1) Remove the rear wheel assembly. Refer to “Rear
Wheel Assembly Removal and Installation (GSF650/
S/U/SUK7) in Section 2D (Page 2D-11)”.
2) Remove the drive chain cover (1).
3) Remove the brake hose from the brake hose
clamps.
4) Remove the cushion lever (2) and rear shock
absorber (3). Refer to “Rear Shock Absorber
Removal and Installation (Page 2C-3)” and “Cushion
Lever Removal and Installation (Page 2C-6)”.
(A)
I718H1230014-02
I718H1230016-01
1
I717H1230018-01
I717H1230019-01
2
3
I717H1230020-01
