Suzuki GSF650 Service Manual

Lighting Systems: 9B-8

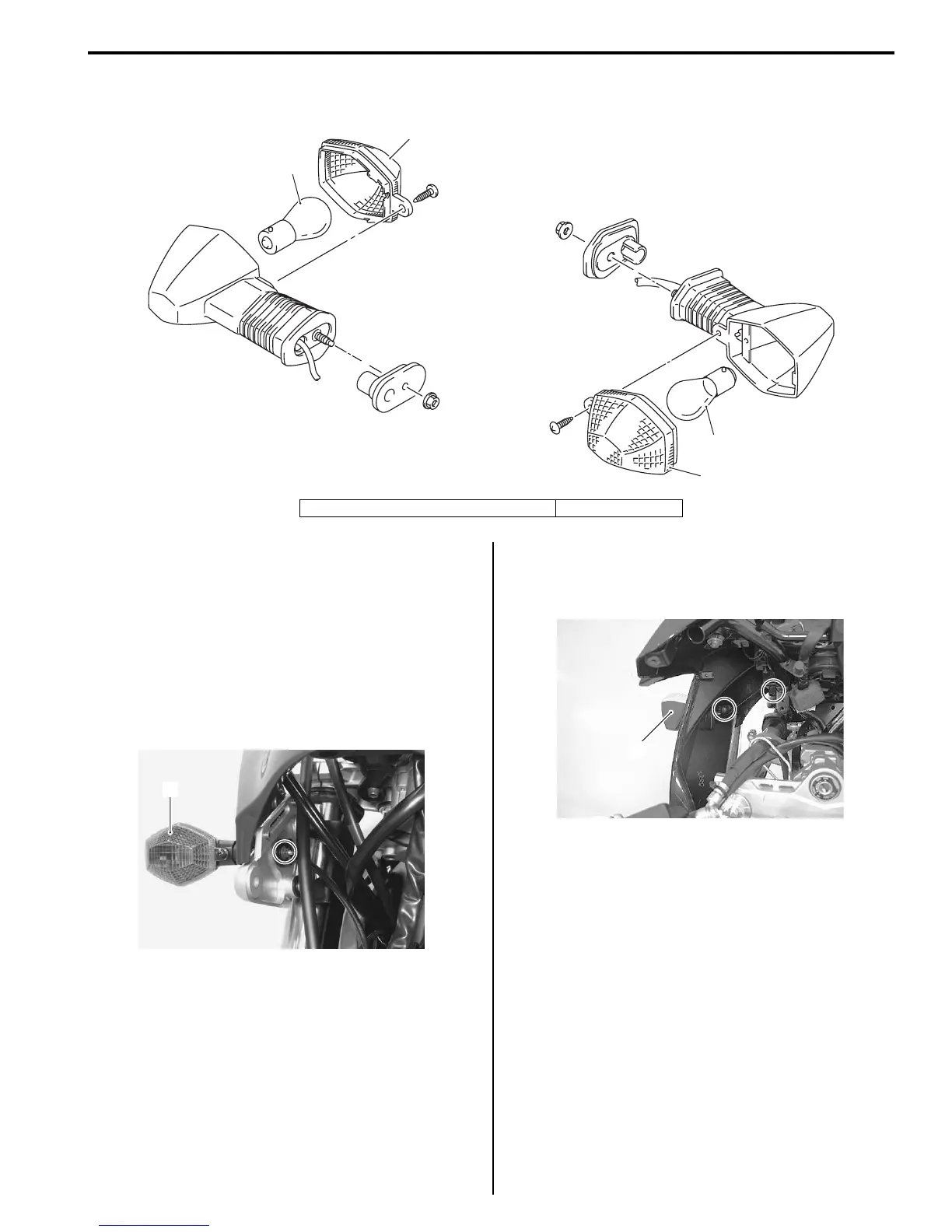

Turn Signal Light Components
B817H29206013
Front Turn Signal Light Removal and
Installation
B817H29206014
GSF650
Removal
1) Remove the headlight housing. Refer to “Headlight
Removal and Installation (GSF650/S/A/SAK7)
(Page 9B-2)”.
2) Remove the front turn signal light (1) by removing
the nut.
Installation
Install the front turn signal light in the reverse order of
removal.
GSF650S
Removal
1) Remove the wind screen and upper panel. Refer to
“Exterior Parts Removal and Installation (GSF650/S/
A/SAK7) in Section 9D (Page 9D-6)”.
2) Disconnect the turn signal light coupler.
3) Remove the front turn signal light (1) by removing
the nut and turn signal lead wire clamp.
Installation
Install the front turn signal light in the reverse order of
removal.
Rear Turn Signal Light Removal and Installation
B817H29206015
Removal
1) Remove the seat. Refer to “Exterior Parts Removal
and Installation (GSF650/S/A/SAK7) in Section 9D
(Page 9D-6)”.
2
2
1
1
I649G1920028-04
1. Turn signal light bulb (12 V 21 W x 4) 2. Lens
1
I718H1920027-01
1
I718H1920043-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
