Suzuki GSF650 Service Manual

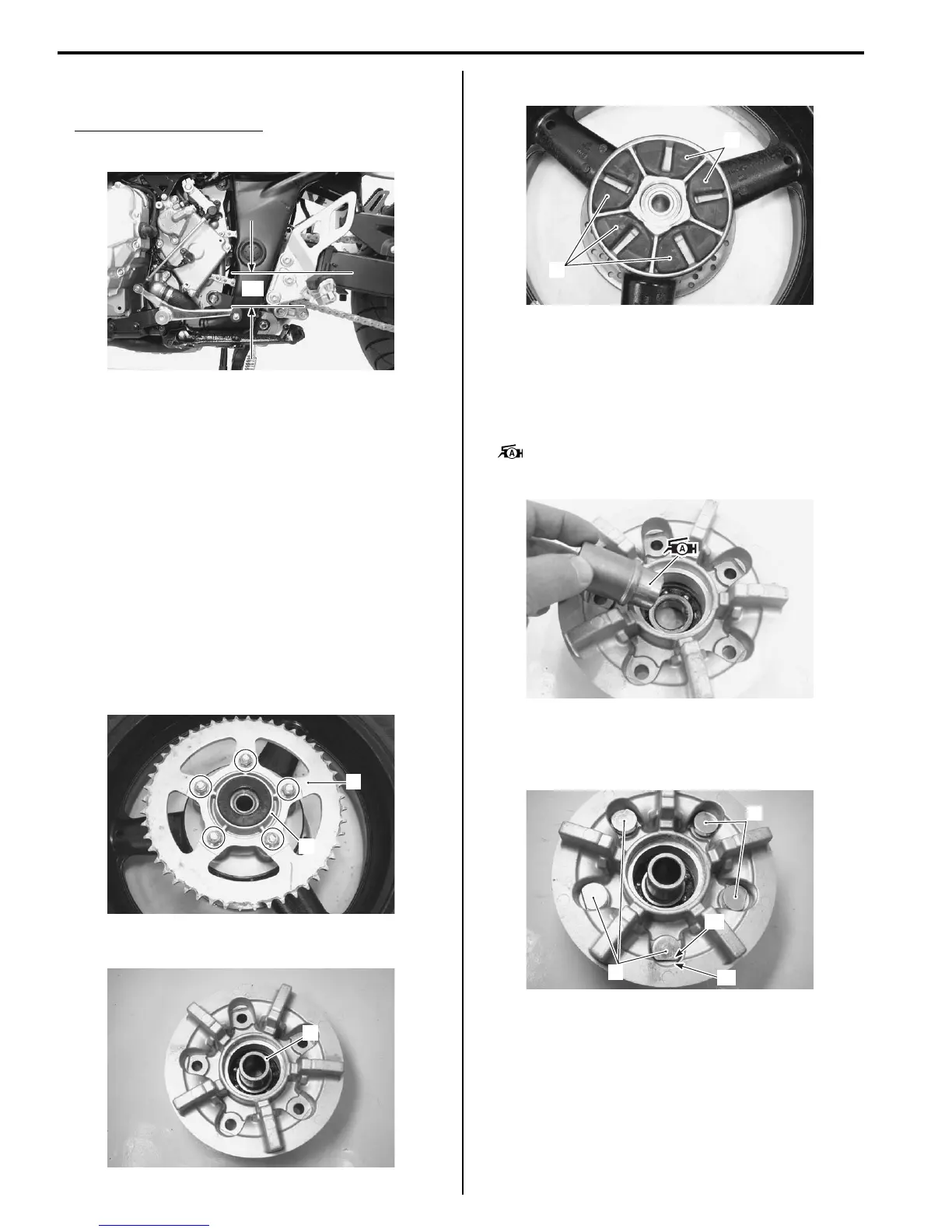

3A-4 Drive Chain / Drive Train / Drive Shaft:
• Install the gearshift lever to the gearshift shaft in the
correct position.
Gearshift lever height “a”
Standard: 45 – 55 mm (1.8 – 2.2 in)
• Adjust the drive chain slack. Refer to “Drive Chain
Inspection and Adjustment in Section 0B (Page 0B-
17)”.
Rear Sprocket / Rear Sprocket Mounting Drum
Removal and Installation
B817H23106003
Removal
1) Remove the rear wheel assembly by disengaging
the drive chain. Refer to “Rear Wheel Assembly
Removal and Installation (GSF650/S/U/SUK7) in
Section 2D (Page 2D-11)”.
2) Remove the rear sprocket nuts and separate the
rear sprocket (1) from its mounting drum (2).
3) Draw out the mounting drum (2) from the wheel hub.
4) Remove the retainer (3).
5) Remove the wheel dampers (4).
Installation
Install the rear sprocket and rear sprocket mounting
drum in the reverse order of removal. Pay attention to
the following points:
• Apply grease to the retainer.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Install the rear sprocket bolts (1), engage two flats “A”
on the end of rear sprocket bolts face with the same
shaped hole “B” on the rear sprocket mounting drum.
“a”
I717H1310013-01
1
2
I717H1310014-02
3
I717H1310015-01
4
4
I717H1310016-01
I717H1310017-01
1
1
“A”
“B”
I717H1310018-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
