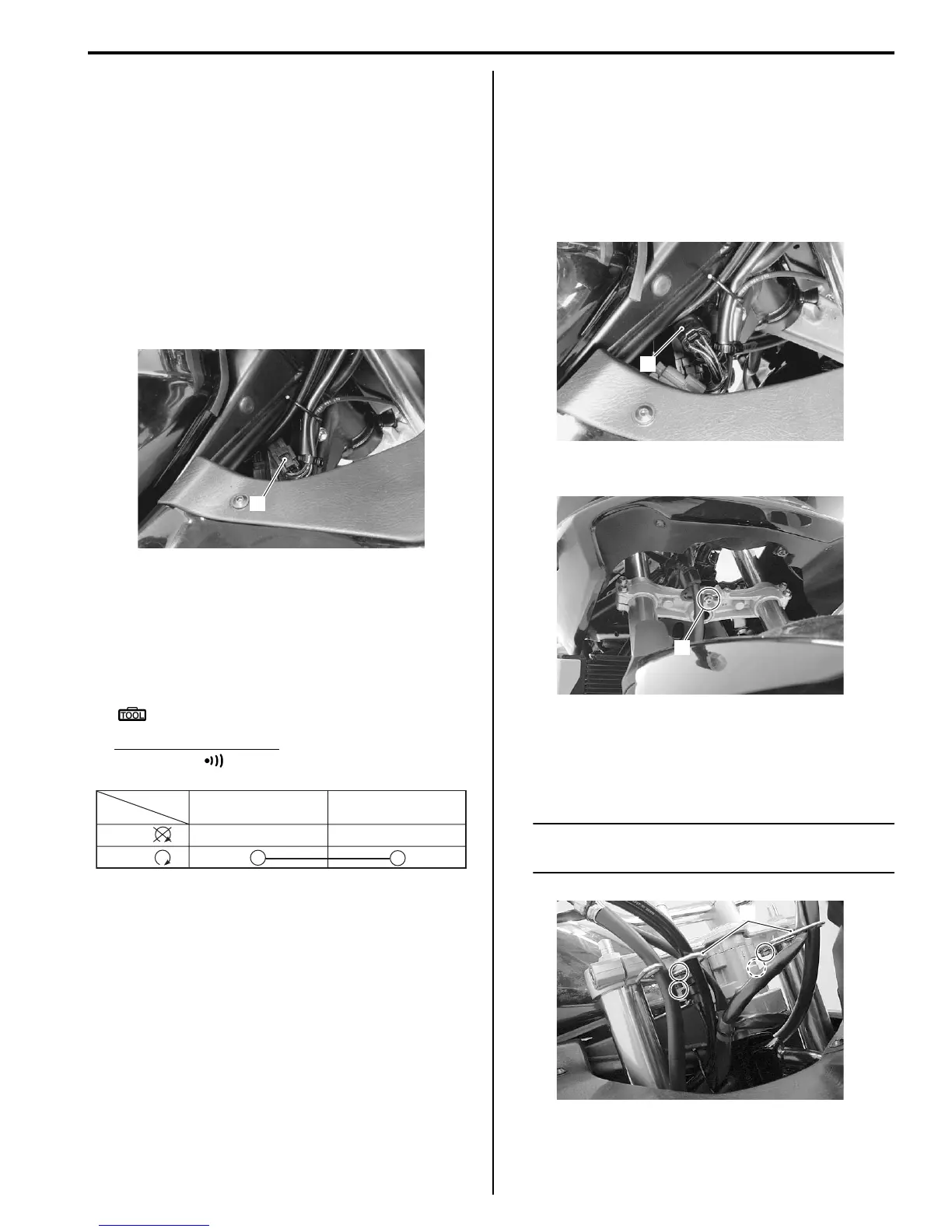

Ignition System: 1H-7
CKP Sensor Removal and Installation
B817H21806005
Refer to “Generator Removal and Installation in Section
1J (Page 1J-4)”.
Engine Stop Switch Inspection
B817H21806006
Inspect the engine stop switch in the following
procedures:
1) Turn the ignition switch OFF.
2) Remove the right frame head cover. (GSF650) Refer
to “Exterior Parts Removal and Installation (GSF650/
S/A/SAK7) in Section 9D (Page 9D-6)”.
3) Disconnect the right handlebar switch coupler (1).
4) Inspect the engine stop switch for continuity with a
tester.
If any abnormality is found, replace the right
handlebar switch assembly with a new one. Refer to
“Handlebars Removal and Installation in Section 6B
(Page 6B-3)”.
Special tool
: 09900–25008 (Multi-circuit tester set)
Tester knob indication
Continuity ( )
5) After finishing the engine stop switch inspection,
reinstall the removed parts.
Ignition Switch Inspection
B817H21806007
Refer to “Ignition Switch Inspection in Section 9C
(Page 9C-11)”.
Ignition Switch Removal and Installation
B817H21806008
Removal
1) Support the motorcycle with the center stand.
2) Remove the right frame head cover (GSF650). Refer
to “Exterior Parts Removal and Installation (GSF650/
S/A/SAK7) in Section 9D (Page 9D-6)”.
3) Disconnect the ignition switch coupler (1) and clamp.
4) Remove the brake hose clamp bolt (2).
5) Remove the combination meter bracket bolts
(GSF650) or cable guides (3) (GSF650S).
6) Dismount the handlebars by removing the handlebar
holder set nuts.
NOTE
Place a rag on the fuel tank to prevent the
fuel tank scratched.
1
I718H1180017-01
B/BI B/R
Color
Position
OFF
RUN
()
()
I649G1180022-02
1
I718H1180018-01
2
I717H1180008-01
3
I717H1180009-03
