Suzuki GSF650 Service Manual

9E-2 Body Structure:
Engine Mounting Bracket Bushing Replacement
B817H29506002
Replace the engine mounting bracket bushing if necessary, as shown in the body frame construction. Refer to “Body
Frame Construction (Page 9E-1)”.
Engine Mount Bushing Replacement
B817H29506003
Replace the engine mount bushing if necessary, as shown in the body frame construction. Refer to “Body Frame
Construction (Page 9E-1)”.

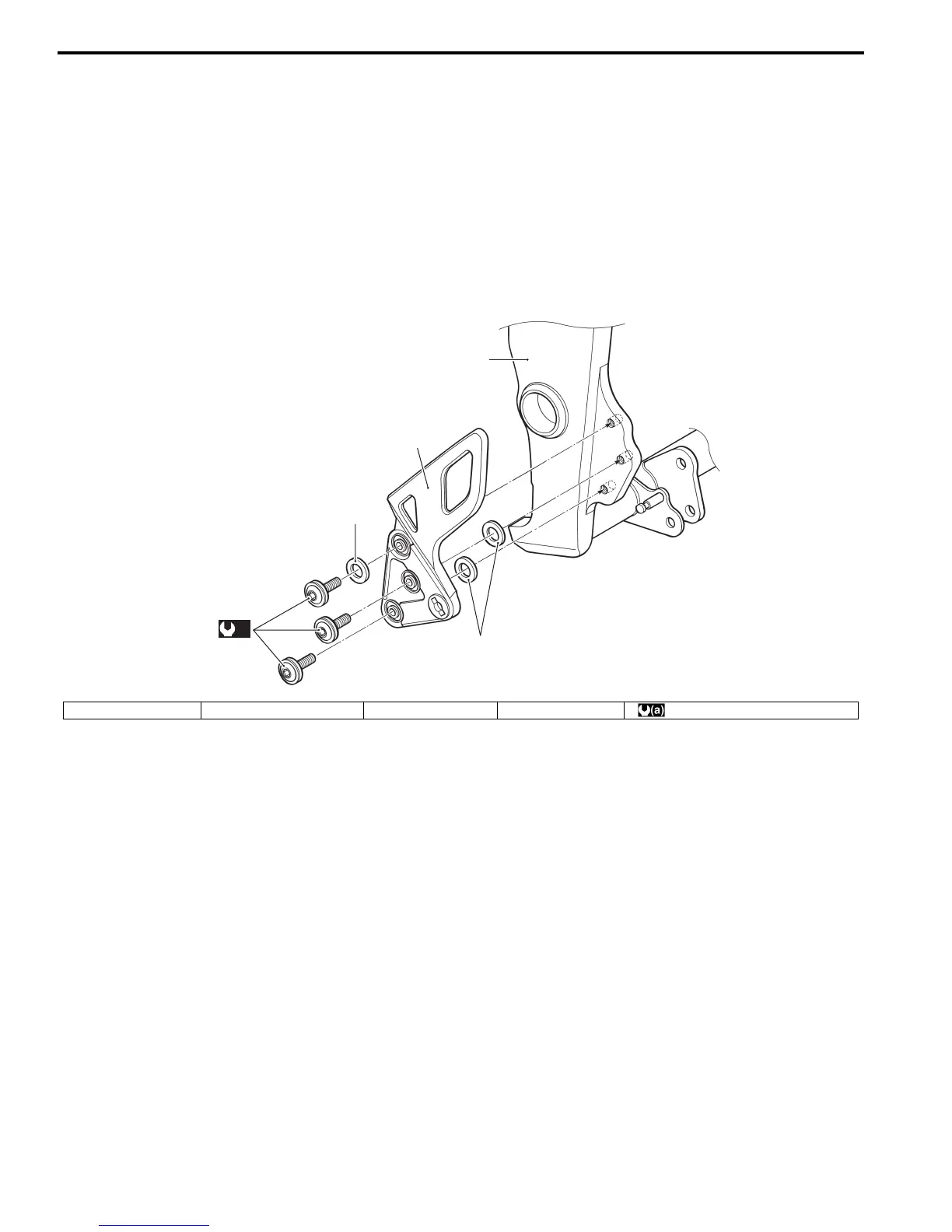

Front Footrest Bracket Construction
B817H29506004
GSF650S
3
3
2
1
(a)
4
I718H1950001-04
1. Frame 2. Footrest bracket 3. Washer 4. Bolt : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
