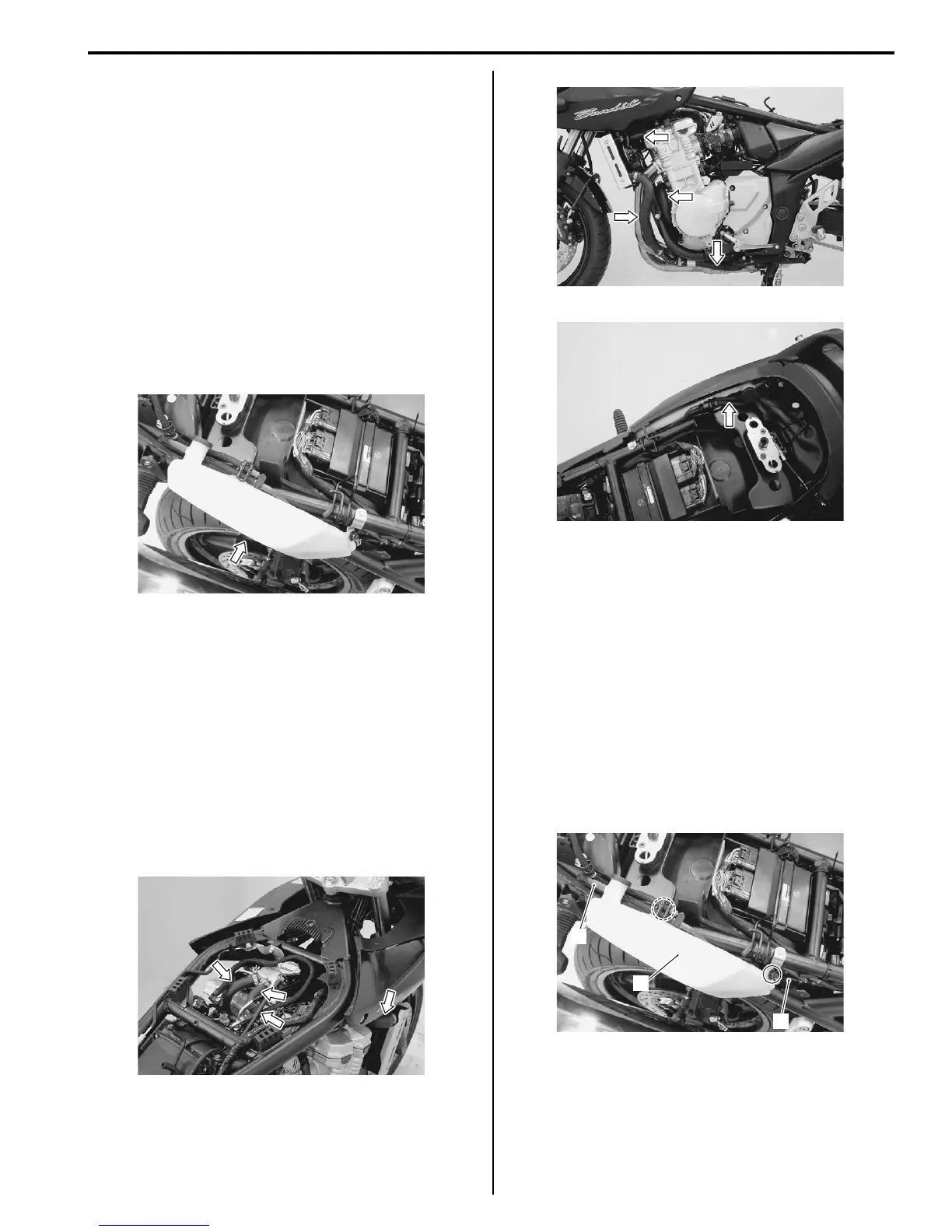

Engine Cooling System: 1F-7
2) Pour engine coolant and bleed air from the cooling
circuit. Refer to “Cooling System Inspection in
Section 0B (Page 0B-14)”.
3) Reinstall the fuel tank. Refer to “Fuel Tank Removal
and Installation in Section 1G (Page 1G-9)”.
Radiator Reservoir Tank Inspection
B817H21606006
Inspect the radiator reservoir tank in the following
procedures:
1) Remove the seat tail cover. Refer to “Exterior Parts
Removal and Installation (GSF650/S/A/SAK7) in
Section 9D (Page 9D-6)”.
2) Inspect the radiator reservoir tank cooling leaks. If
any defects are found, replace the radiator reservoir
tank with a new one.
Water Hose Inspection
B817H21606007
Inspect the water hoses in the following procedures:
1) Remove the seat, right frame cover and fuel tank.
Refer to “Fuel Tank Removal and Installation in
Section 1G (Page 1G-9)”.
2) Check the water hoses for crack, damage or engine
coolant leakage. If any defect is found, replace the
radiator hose with a new one.
3) Any leakage from the connecting section should be
corrected by proper tightening. Refer to “Water Hose
Routing Diagram (Page 1F-3)”.
4) After finishing the water hose inspection, reinstall the
removed parts.
Radiator Reservoir Tank Removal and
Installation
B817H21606008
Removal
1) Remove the seat tail cover. Refer to “Exterior Parts
Removal and Installation (GSF650/S/A/SAK7) in
Section 9D (Page 9D-6)”.
2) Remove the reservoir tank bolts.
3) Disconnect the hoses (1) and drain the engine
coolant.
4) Remove the reservoir tank (2).
I717H1160010-02
I717H1160011-01
I717H1160012-01
I717H1160013-01
1
1
2
I717H1160014-02
