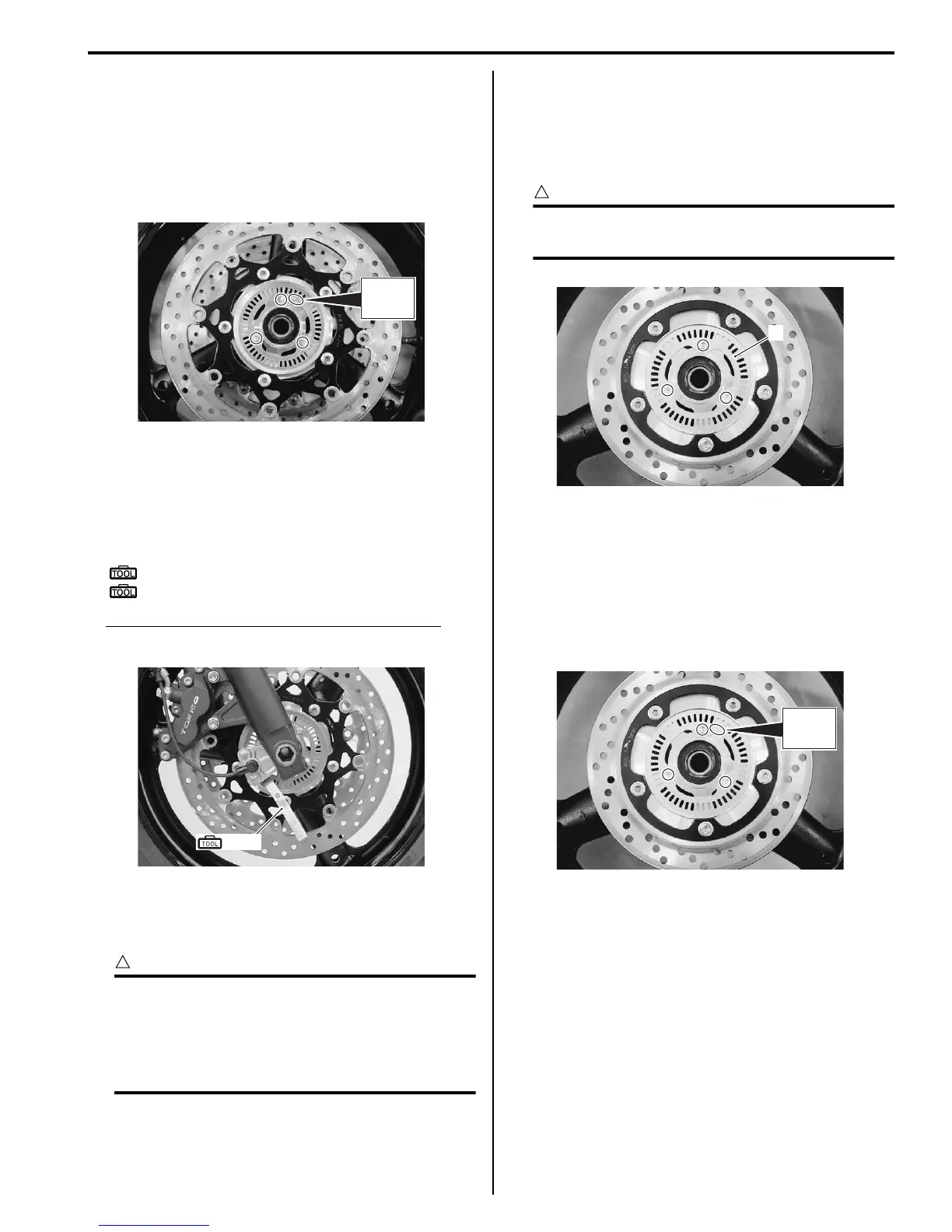

ABS: 4E-72
Installation
Refer to “Wheel Speed Sensor and Sensor Rotor
Inspection (Page 4E-73)”.
Install the front wheel speed sensor rotor in the reverse
order of removal. Pay attention to the following points:
• Install the wheel speed sensor rotor as the letters
“50T” face outside.
• Install the front wheel assembly. Refer to “Front Wheel
Assembly Removal and Installation (GSF650/S/U/
SUK7) in Section 2D (Page 2D-4)”.
• Check the clearance between the front wheel speed
sensor and sensor rotor using the thickness gauge.
Special tool
(A): 09900–20803 (Thickness gauge)
(B): 09900–20806 (Thickness gauge)
Wheel speed sensor – sensor rotor clearance
0.3 – 1.5 mm (0.012 – 0.059 in)
Rear Wheel Speed Sensor Rotor Removal and
Installation
B817H24506005
CAUTION
!
• The ABS is made up of many precision
parts; never subject it to strong impacts or
allow it to become dirty or dusty.
• Do not hit the rear wheel speed sensor
rotor when dismounting the rear wheel.
Removal
1) Remove the rear wheel assembly. Refer to “Rear
Wheel Assembly Removal and Installation (GSF650/
S/U/SUK7) in Section 2D (Page 2D-11)”.
2) Remove the rear wheel speed sensor rotor (1).
CAUTION
!
When replacing the tire, make sure not to
damage the sensor rotor.
Installation
Refer to “Wheel Speed Sensor and Sensor Rotor
Inspection (Page 4E-73)”.
Install the rear wheel speed sensor rotor in the reverse
order of removal. Pay attention to the following points:
• Install the wheel speed sensor rotor as the letters
“50T” face outside.
• Install the rear wheel assembly. Refer to “Rear Wheel
Assembly Removal and Installation (GSF650/S/U/
SUK7) in Section 2D (Page 2D-11)”.
50T
I717H2450027-01
(A), (B)
I717H2450009-01
1
I717H2450028-01
50T
I717H2450029-01
