Front Suspension: 2B-1
Suspension
Front Suspension
Repair Instructions

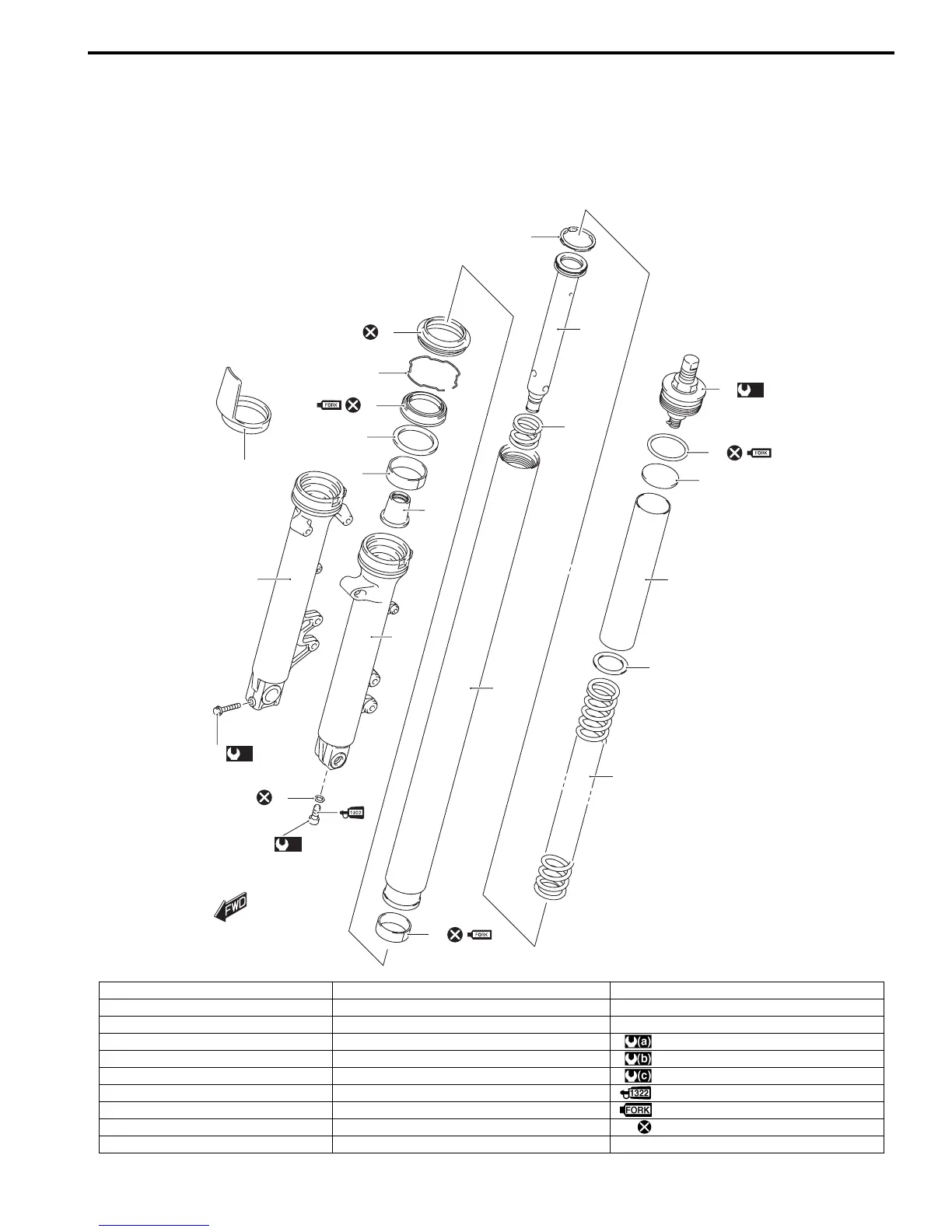

Front Fork Components
B817H22206001
(c)
18
19
20
21
22
23
16
15
14
17
13
(b)
11
10
9
7
6
5
4
3
2
8
(a)
12
1
I717H1220036-03
1. Front fork protector 11. Cylinder bolt 21. Spacer
2. Dust seal 12. Front axle pincj bolt 22. Washer
3. Oil seal stopper ring 13. Ring 23. Spring
4. Oil seal 14. Cylinder : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
5. Oil seal retainer 15. Spring : 30 N⋅m (3.0 kgf-m, 21.5 lb-ft)
6. Outer tube slide metal 16. Inner tube : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
7. Oil lock piece 17. Inner tube slide metal : Apply thread lock to thread part.
8. Outer tube (right) 18. Front fork cap bolt : Apply fork oil.
9. Outer tube (left) 19. O-ring : Do not reuse.
10. Gasket 20. Spring seat
