9C-1 Combination Meter / Fuel Meter / Horn:
Body and Acc essories
Combination Meter / Fuel Meter / Horn
General Description
Combination Meter System Description (GSF650/S/A/SAK7)
B817H29301001
This combination meter mainly consists of the stepping motor, LCD (Liquid Crystal Display) and LED (Light Emitting
Diode).
The rpm pointer is driven by the stepping motor.
The LCDs indicate Speed, Odo / Trip A / Trip B, Fuel level indicator and Clock / FI (DTC) respectively.
LED (Light Emitting Diode)
LED is used for the illumination light and each indicator light.
LED is maintenance free. LED is less electric-power consuming and stronger to vibration resistance compared to the
bulb.
FI
1
2 3 5
6
7
8
4
109 11 1213 13

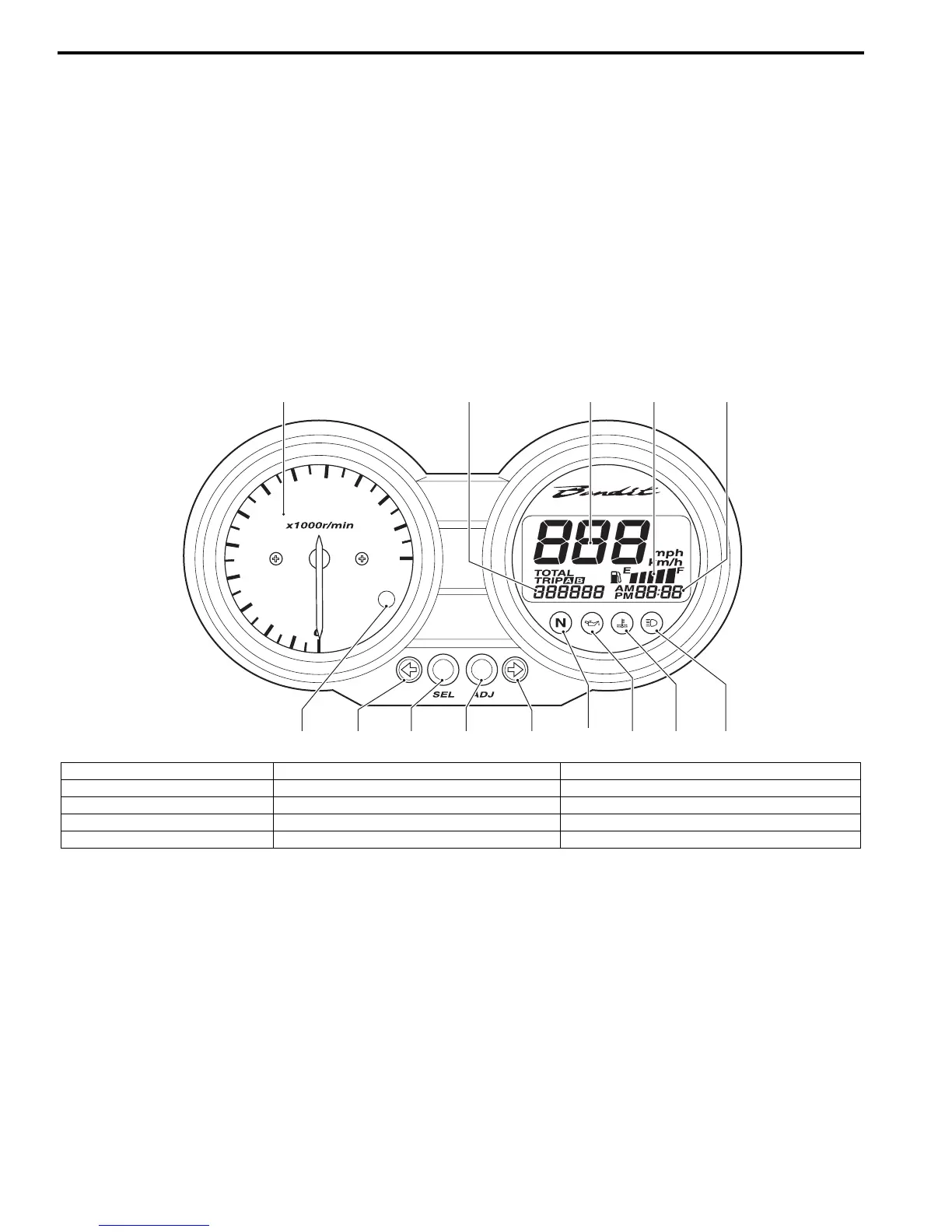

I717H1930001-01
1. Adjust switch (Trip / Clock) 6. Select switch (Odo / Trip A / Trip B) 11. LED (Engine coolant temperature indicator light)
2. Tachometer 7. LCD (FI / Clock) 12. LED (High-beam indicator light)
3. LCD (Speedometer) 8. LED (FI indicator light) 13. LED (Turn signal indicator light)
4. LCD (Odo / Trip A / Trip B) 9. LED (Neutral indicator light)
5. LCD (Fuel level indicator) 10. LED (Oil pressure indicator light)

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
