Suzuki GSF650 Service Manual

Starting System: 1I-10
8) Turn the ignition switch OFF.
9) Install the left frame cover. Refer to “Exterior Parts
Removal and Installation (GSF650/S/A/SAK7) in
Section 9D (Page 9D-6)”.

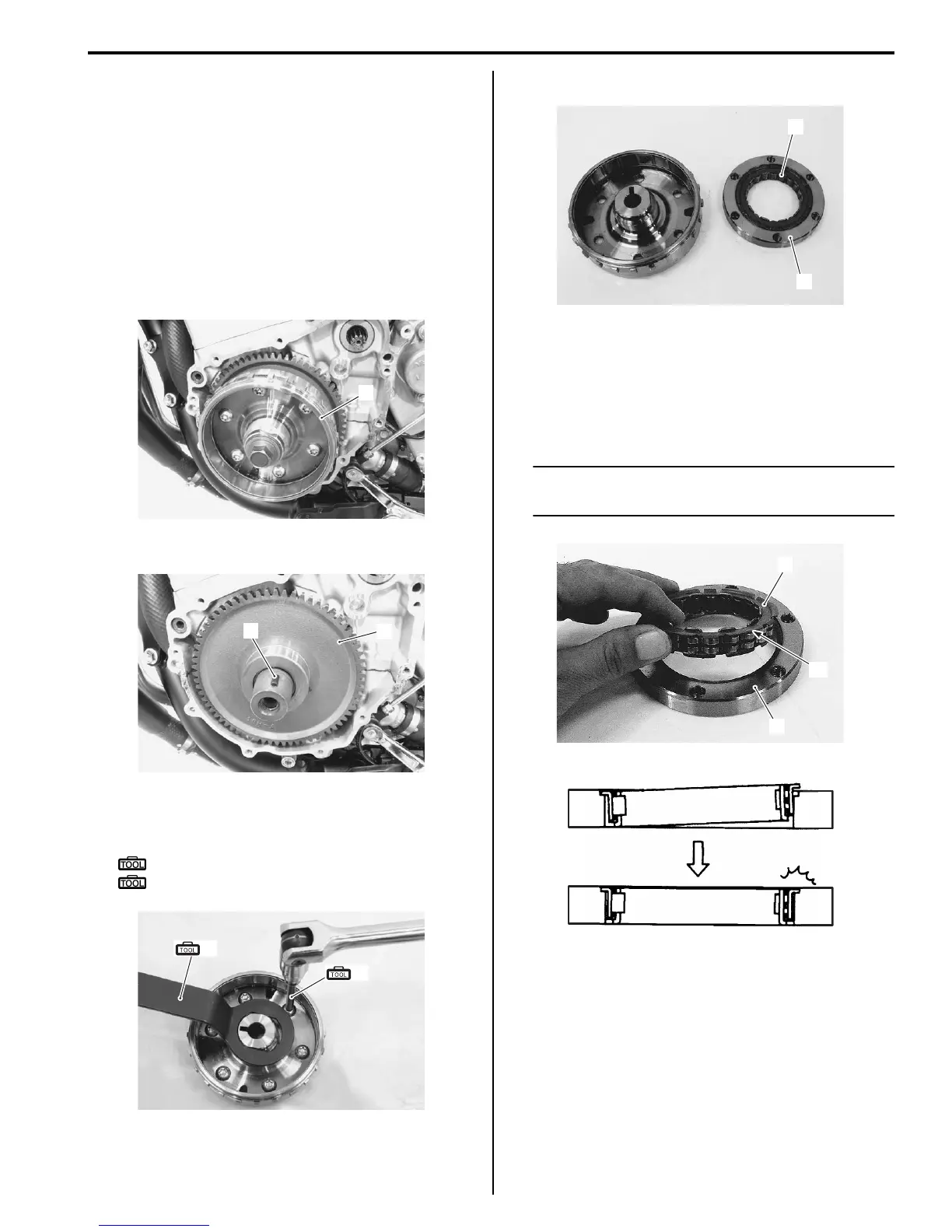

Starter Clutch Removal and Installation
B817H21906009
Removal
1) Drain engine oil.
2) Remove the generator rotor assembly (1). Refer to
“Generator Removal and Installation in Section 1J
(Page 1J-4)”.
3) Remove the key (2) and starter driven gear (3).
4) Hold the generator rotor with the special tools and
remove the starter clutch bolts.
Special tool
(A): 09930–44530 (Rotor holder)
(B): 09930–11920 (Torx bit (JT40H))
5) Remove the one way clutch (4) from the guide (5).
Installation
Install the starter clutch in the reverse order of removal.
Pay attention to the following points:
• When inserting the one way clutch (1) into the guide
(2), fit the flange “A” in the step of the guide (2).
NOTE
Be sure to seat the flange “A” of the one way
clutch (1) to the guide (2).
1
I717H1190019-01
2
3
I717H1190020-01
(A)
(B)
I717H1190021-01
5
4
I717H1190022-01
1
“A”
2
I718H1190030-02
I718H1190031-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
