1A-17 Engine General Information and Diagnosis:

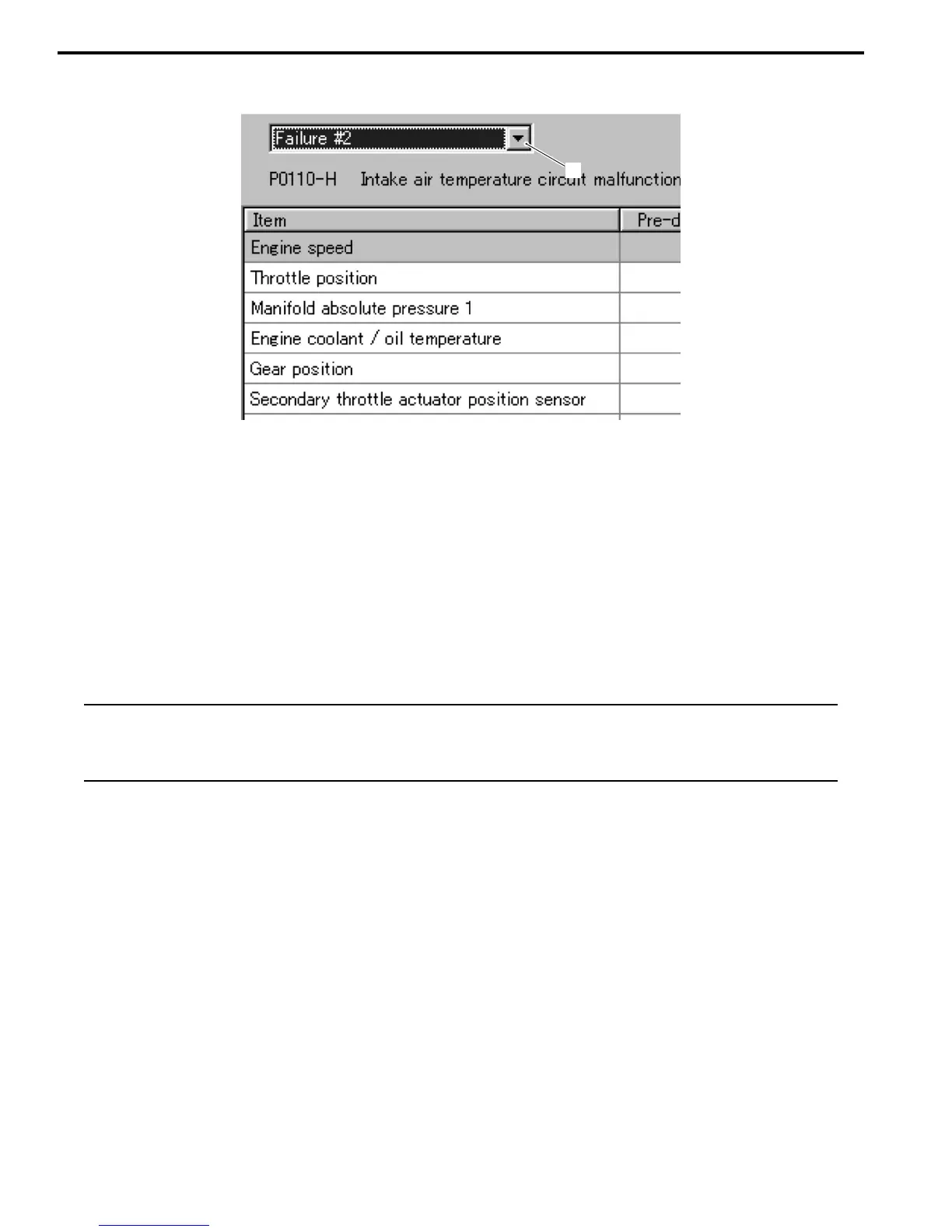

2) Click the drop down button (2), either “Failure #1” or “Failure #2” can be selected.
SDS Check
B817H21104005
Using SDS, sample the data at the time of new and periodic vehicle inspections.
After saving the sampled data in the computer, file them by model and by user.
The periodically filed data help improve the accuracy of troubleshooting since they can indicate the condition of vehicle
functions that has changed with time.
For example, when a vehicle is brought in for service but the troubleshooting of a failure is not easy, comparing the
current data value to past filed data value at time of normal condition can allow the specific engine failure to be
determined.
Also, in the case of a customer vehicle which is not periodically brought in for service with no past data value having
been saved, if the data value of a good vehicle condition have been already saved as a master (STD), comparison
between the same models helps facilitate the troubleshooting.
NOTE
• Before taking the sample of data, check and clear the Past DTC.
• A number of different data under a fixed condition as shown below should be saved or filed as
sample.
2
I718H1110009-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
