Suzuki GSF650 Service Manual

4E-17 ABS:
ABS Indicator Light Inspection
B817H24504003
Wiring Diagram
Refer to “ABS Unit Diagram (Page 4E-8)”.

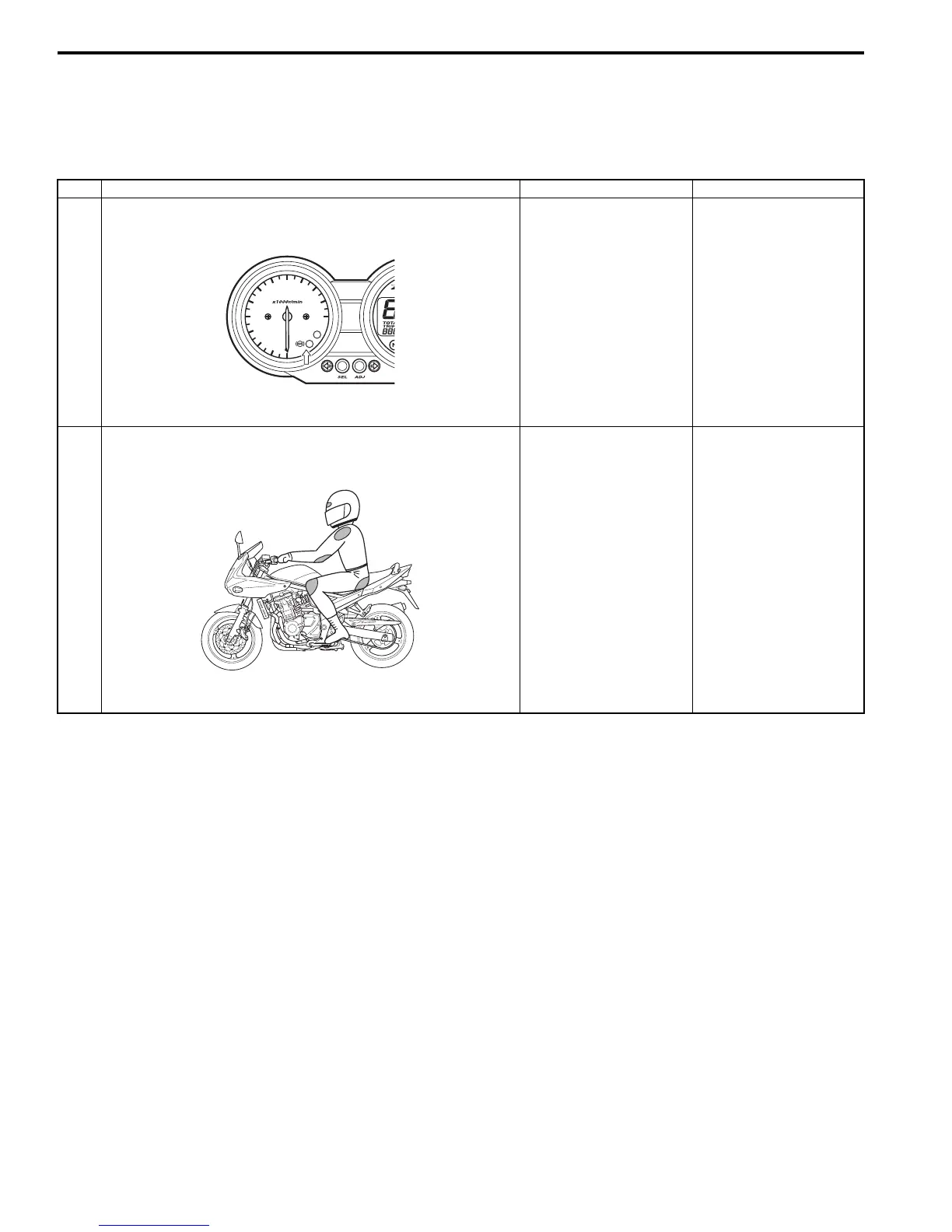

Troubleshooting
Step Action Yes No
1 1) Check if the ABS indicator light lights up when turning
the ignition switch ON.
Does the ABS indicator light up?
Go to Step 2. Go to Step 3.
2 (The ABS indicator light lights up)
1) Ride the motorcycle at more than 10 km/h (6.2 mile/h).
Does the ABS indicator light go off?
Normal (No DTC exists) • DTC output (Refer to
“DTC (Diagnostic
Trouble Code) Output
(Page 4E-23)”.)
• If DTC can not be
output (the ABS
indicator light does
not flash), go to Step
7.
FI
I718H1450122-04
I717H2450014-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
