Suzuki GSF650 Service Manual

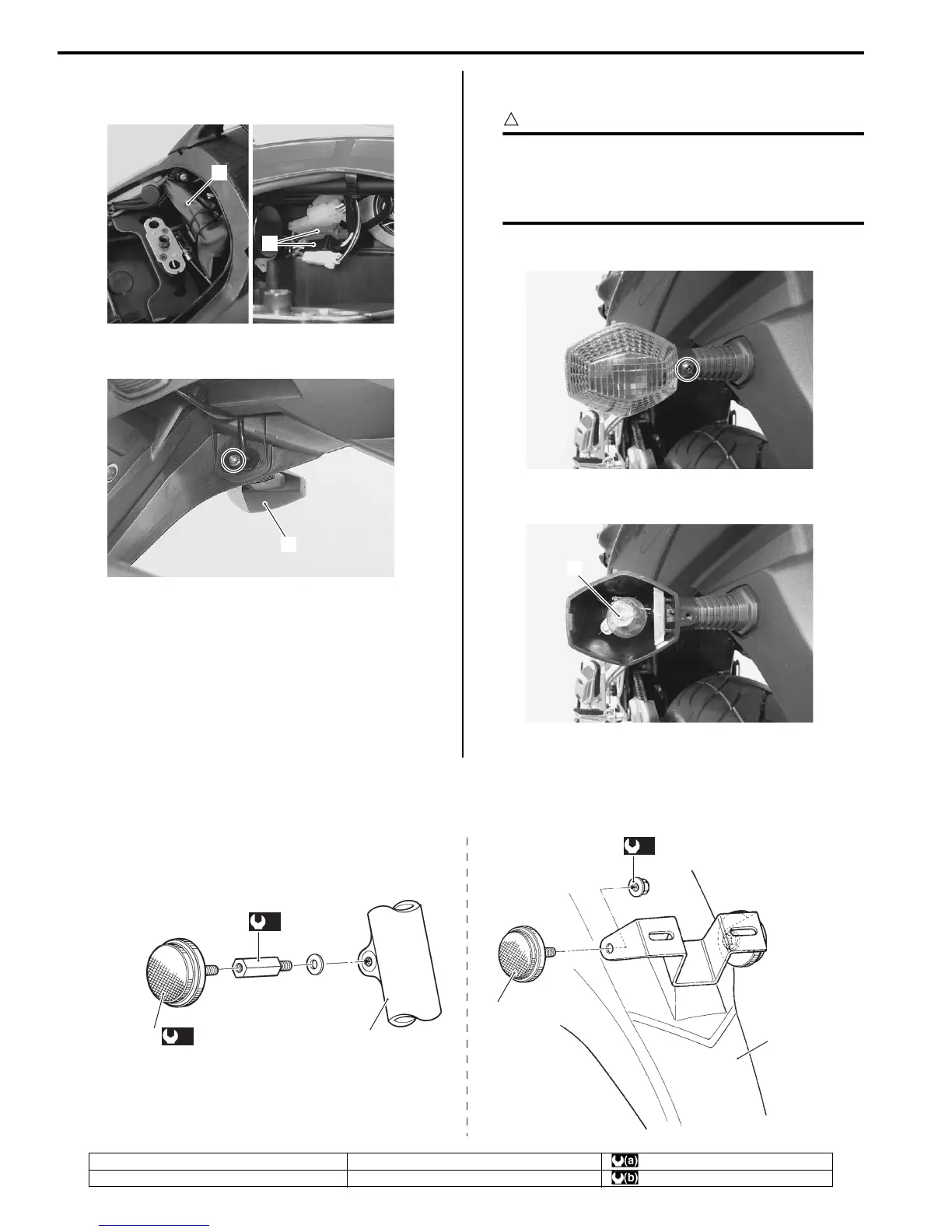

9B-9 Lighting Systems:
2) Remove the tool set (1) and disconnect the turn
signal light coupler (RH: Black, LH: Gray) (2).
3) Remove the turn signal light (3) by removing the nut.
Installation
Install the rear turn signal light in the reverse order of
removal.
Turn Signal Light Bulb Replacement
B817H29206016
CAUTION
!
If you touch the bulb with your bare hands,
clean the bulb with a cloth moistened with
alcohol or soapy water to prevent premature
bulb failure.
1) Remove the lens by removing the screw.
2) Replace the bulb (1).
3) Reinstall the lens.
Reflex Refractor Construction (GSF650/S/A/SAK7)
B817H29206017
1
2
I717H1920009-01
3
I718H1920029-02
I718H1920030-01
1
I718H1920031-01
(a)
1
(a)
(b)
2
3
4
I718H1920044-05
1. Front reflex refractor (For E-28) 3. Rear reflex refractor (For E-28) : 1.8 N⋅m (0.18 kgf-m, 1.3 lb-ft)
2. Front fork 4. Rear fender : 4.5 N⋅m (0.45 kgf-m, 3.25 lb-ft)

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
