Suzuki GSF650 Service Manual

Front Suspension: 2B-3

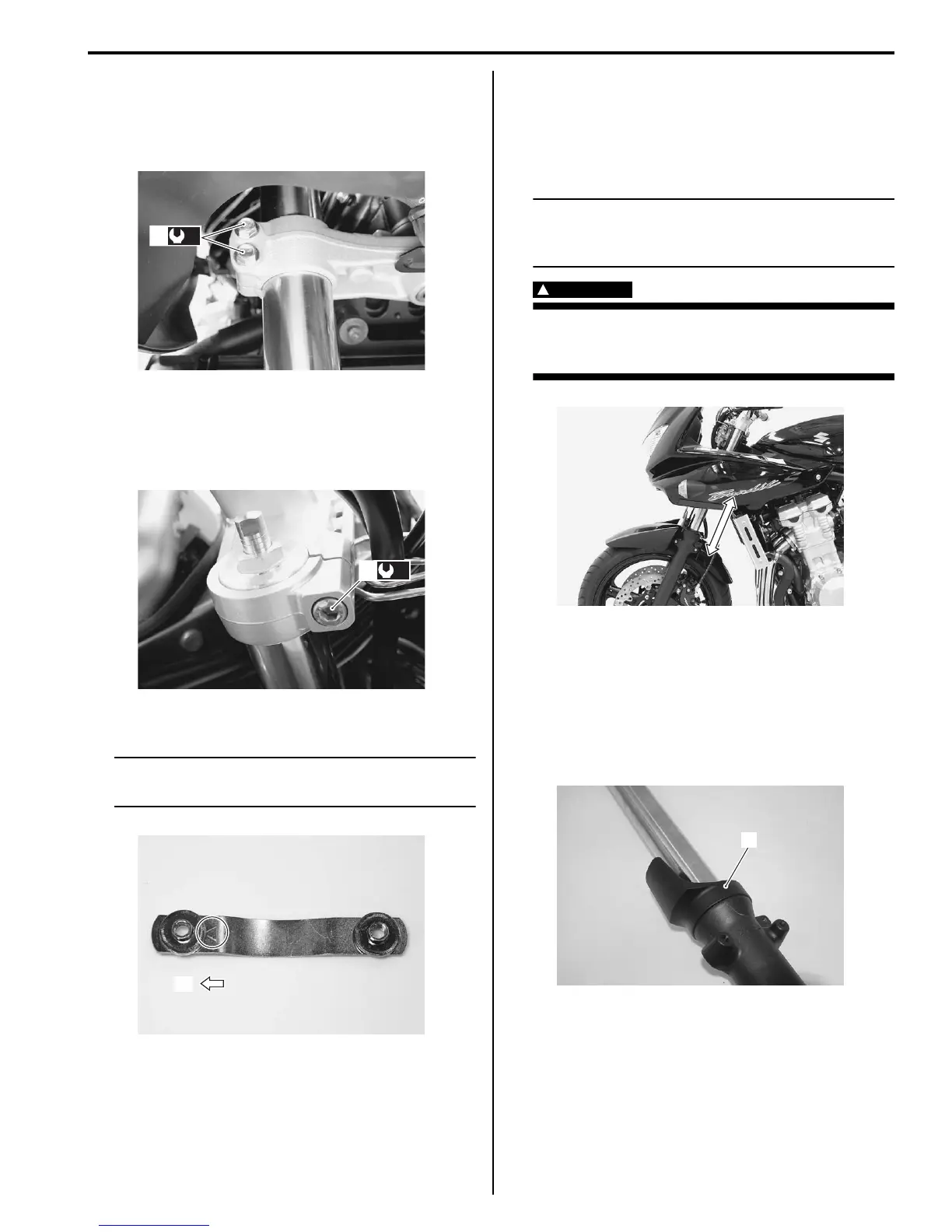

4) Tighten the front fork lower clamp bolts (1).
Tightening torque
Front fork lower clamp bolt (b): 23 N·m (2.3 kgf-
m, 16.5 lbf-ft)
5) Tighten the front fork upper fork clamp bolt (3).
Tightening torque
Front fork upper clamp bolt (c): 23 N·m (2.3 kgf-
m, 16.5 lbf-ft)
6) Set the front fender plate nut to the front fender.
NOTE
Face the triangle mark on the front fender
brace to the front side “A”.
7) Remount the front fender along with the fender plate
nut.
8) Install the front wheel assembly. Refer to “Front
Wheel Assembly Removal and Installation (GSF650/
S/U/SUK7) in Section 2D (Page 2D-4)”.
NOTE
Before tightening the front axle and front axle
pinch bolts, move the front fork up and down
four or five times.
WARNING
!
After remounting the brake caliper, pump the
brake lever until the pistons push the pads
correctly.
Front Fork Disassembly and Assembly
B817H22206003
Refer to “Front Fork Removal and Installation (Page 2B-
2)”.
Disassembly
1) Remove the front fork protector (1).
(b)
1
I717H1220006-01
(c)
3
I717H1220007-01
“A”
I718H1220010-02
I717H1220009-01
1
I717H1220010-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
