Suzuki GSF650 Service Manual

6B-1 Steering / Handlebar:
Steer ing
Steering / Handlebar
Repair Instructions

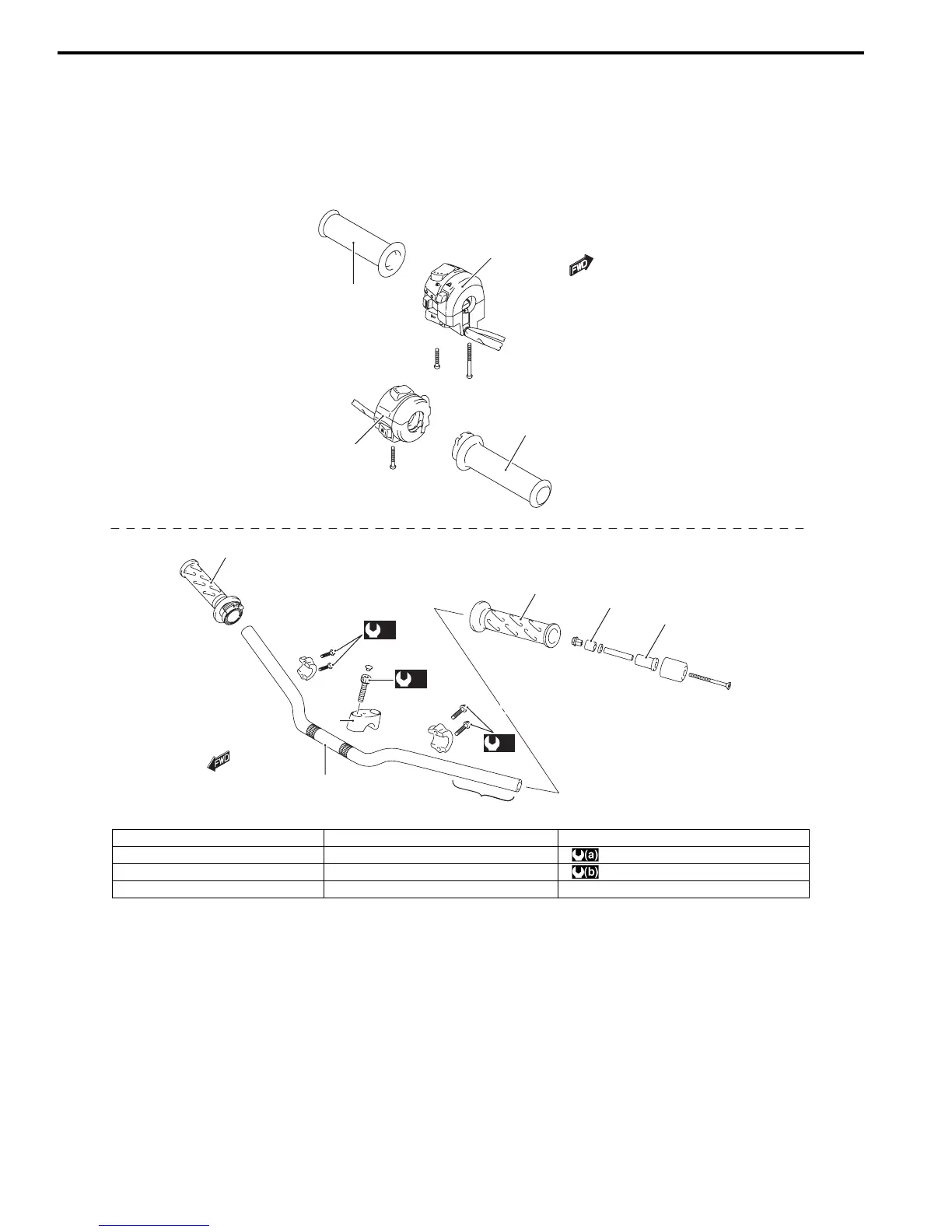

Handlebars Components
B817H26206001
4
1
(b)
“A”
2
(b)
1
4
8
7
(a)
3
5
6
I717H1620034-01
1. Throttle grip 5. Handle expander “A”: Apply handle grip bond.
2. Handlebars 6. Handle balancer expander : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
3. Handlebar holder (Upper) 7. Right handlebar switch box : 10 N⋅m (1.0 kgf-m, 7.0 lb-ft)
4. Grip rubber 8. Left handlebar switch box

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
