Suzuki GSF650 Service Manual

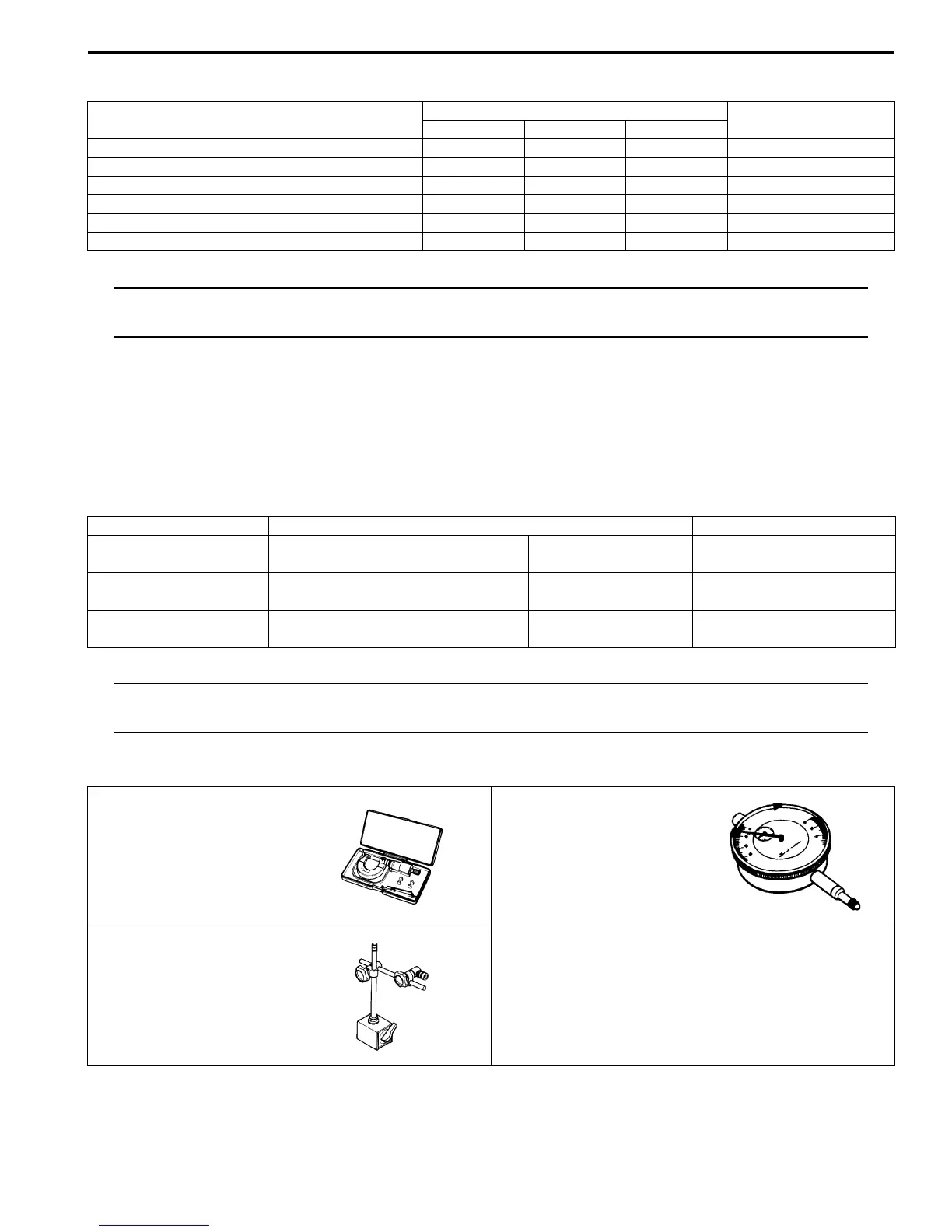

Rear Brakes: 4C-8
Tightening Torque Specifications
B817H24307002
NOTE
The specified tightening torque is also described in the following.
“Rear Brake Components (Page 4C-1)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List in Section 0C
(Page 0C-7)”.
Special Tools and Equipment
Recommended Service Material
B817H24308001
NOTE
Required service material is also described in the following.
“Rear Brake Components (Page 4C-1)”
Special Tool
B817H24308002
Fastening part
Tightening torque
Note
N⋅mkgf-mlbf-ft
Rear brake caliper mounting bolt 22 2.2 16.0 )(Page 4C-3)
Rear brake pad mounting pin 17 1.7 12.5 )(Page 4C-3)
Pad pin plug 2.5 0.25 1.8 )(Page 4C-3)
Rear brake caliper sliding pin 27 2.7 19.5 )(Page 4C-4)
Brake hose union bolt 23 2.3 16.5 )(Page 4C-4)
Brake disc bolt 23 2.3 16.5 )(Page 4C-7)
Material SUZUKI recommended product or Specification Note
Brake fluid DOT 4 — )(Page 4C-5) / )(Page 4C-
5)
Grease SUZUKI Silicone Grease or
equivalent
P/No.: 99000–25100 )(Page 4C-5) / )(Page 4C-
5)
Thread lock cement Thread Lock Cement Super 1360 or
equivalent
P/No.: 99000–32130 )(Page 4C-7)
09900–20205 09900–20607
Micrometer (0 – 25 mm) Dial gauge (1/100 mm, 10
mm)
)(Page 4C-7) )(Page 4C-7)
09900–20701
Magnetic stand
)(Page 4C-7)
