Suzuki GSF650 Service Manual

4E-9 ABS:

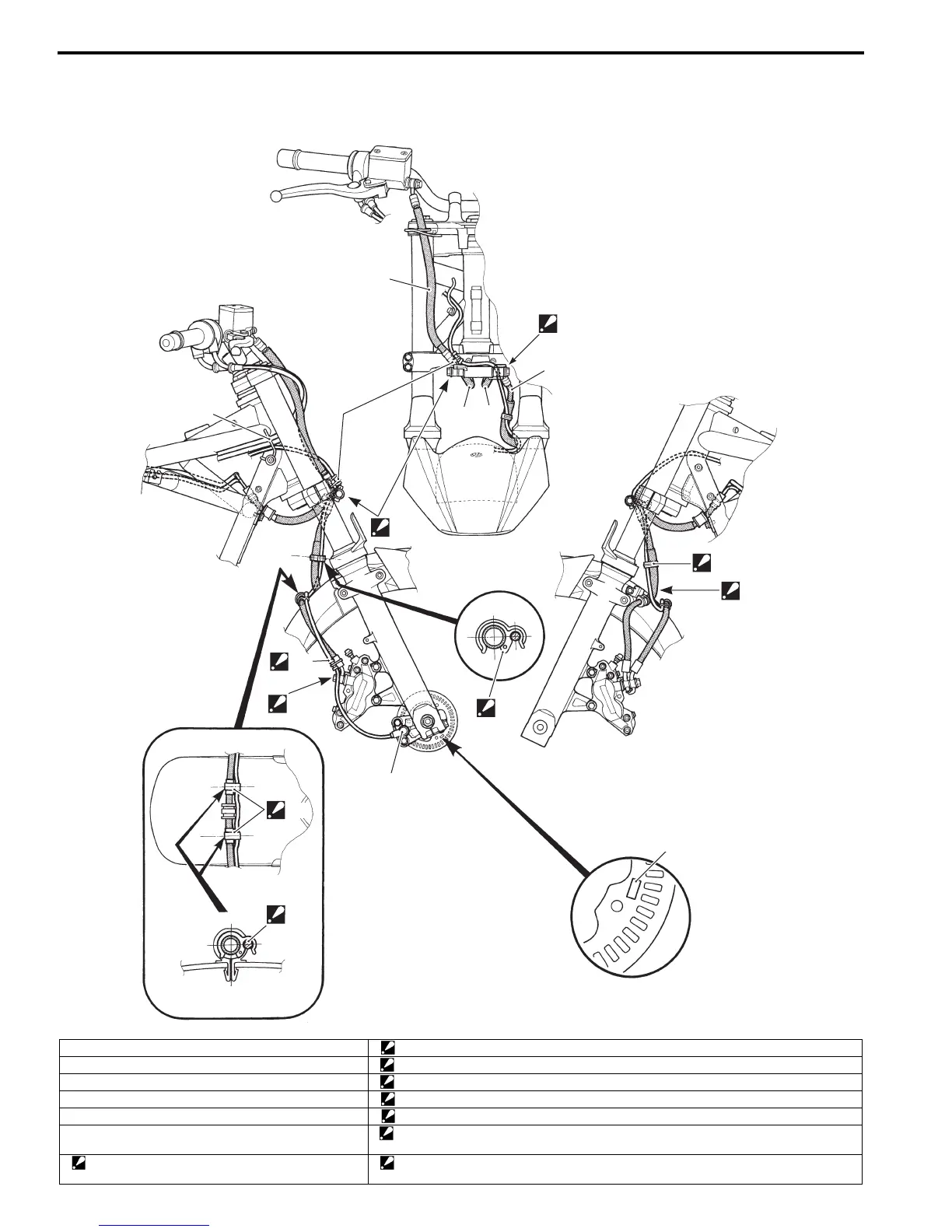

Front Wheel Speed Sensor Routing Diagram
B817H24502003
GSF650A/UA
3
6
“B”
5
4
“C”
1
2
“E”
“F”
“I”
“G”
“H”
8
7
“A”
“D”
I717H2450006-01
1. Clamp “B”: Pass through the sensor lead wire between brake hose No.2 and brake hose No.2 (L).
2. Guide “C”: Pass through the sensor lead wire in front of the brake hose.
3. Front brake hose No.1 “D”: Pass through the sensor lead wire outside of the brake hose.
4. Front brake hose No.1 (L) “E”: Clamp the sensor lead wire sleeve with the brake hose.
5. Front brake hose No.2 “F”: Pass through the sensor lead wire outside of the brake hose union bolt.
6. Front brake hose No.2 (L) “G”: Clamp the sensor lead wire at front side of the brake hose. Make clearance from the front
fender.
7: Clamp
: Clamp the sensor lead wire at the white marking.
“H”: Clamp the sensor lead wire on the protector of brake hose.

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
