Suzuki GSF650 Service Manual

Manual Transmission: 5B-15

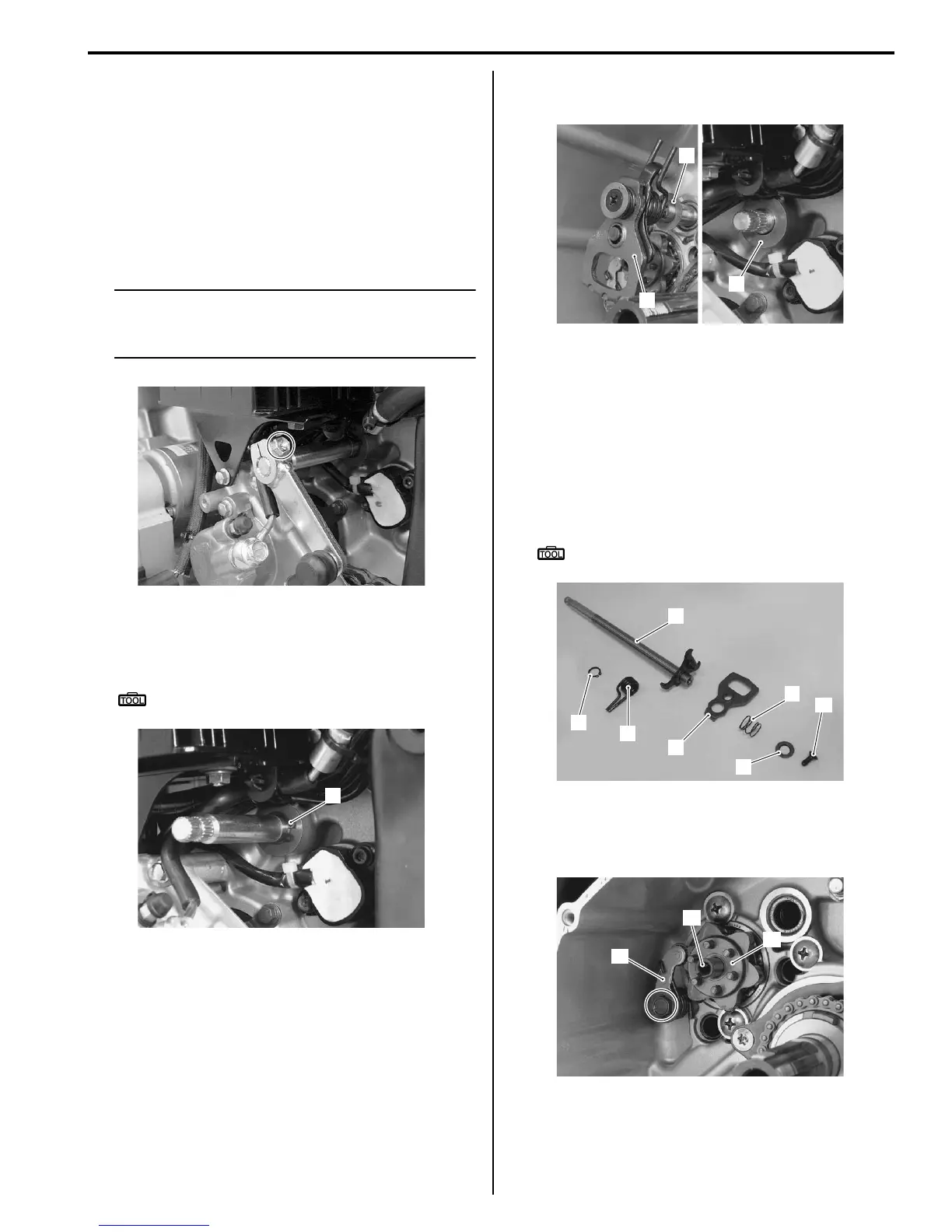

Gearshift Shaft / Gearshift Cam Plate Removal
and Installation
B817H25206014
Removal
1) Remove the engine sprocket outer cover. Refer to
“Engine Sprocket Removal and Installation in
Section 3A (Page 3A-2)”.
2) Disengage the gearshift lever link by removing the
bolt.
NOTE
Mark the gearshift shaft head at which the
gearshift link arm slit set for correct
reinstallation.
3) Remove the clutch components. Refer to“Clutch
Removal in Section 5C (Page 5C-12)”.
4) Remove the snap ring (1) from the gearshift shaft.
Special tool
: 09900–06107 (Snap ring pliers)
5) Remove the gearshift shaft assembly (2) and
washers (3).
6) Remove the following parts from the gearshift shaft
(4).
• Snap ring (5)
• Gearshift return spring (6)
• Gearshift cam drive plate (7)
• Plate return spring (8)
• Washer (9)
• End bolt (10)
Special tool
: 09900–06107 (Snap ring pliers)
7) Remove the gearshift cam plate bolt (11) and
gearshift cam plate (12).
8) Remove the gearshift cam stopper (13).
I717H1520021-01
1
I718H1520047-01
2
3
3
I718H1520048-02
5
6
7
8
4
9
10
I718H1520049-02
11
12
13
I718H1520050-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
