Suzuki GSF650 Service Manual

1J-8 Charging System:

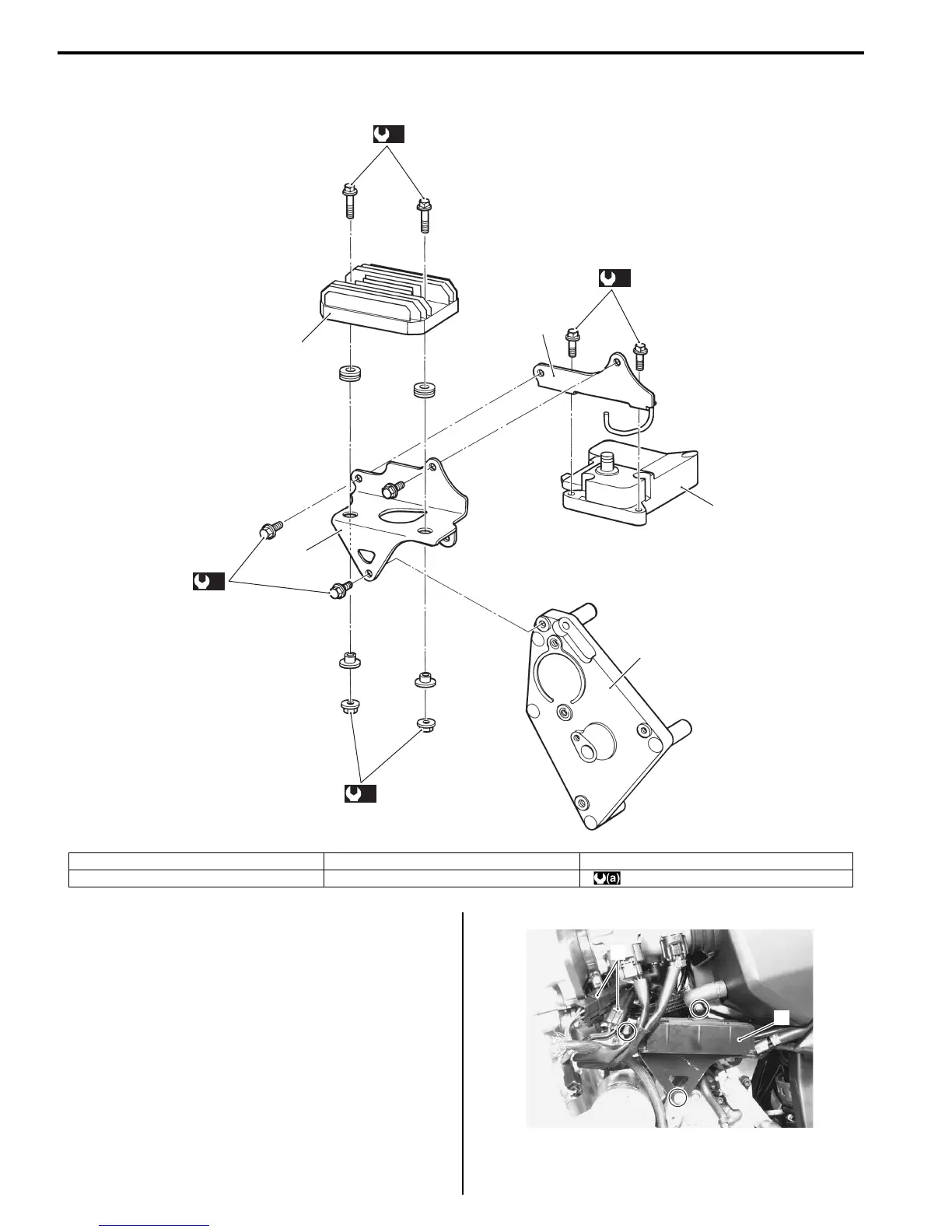

Regulator / Rectifier Construction
B817H21A06005
Regulator / Rectifier Inspection
B817H21A06006
Inspect the regulator/rectifier in the following procedures:
1) Turn the ignition switch OFF.
2) Disconnect the regulator/rectifier couplers (1).
3) Remove the regulator/rectifier (2).
1
2
3
4
5
(a)
(a)
(a)
(a)
I718H11A0002-01
1. Regulator/rectifier 3. Regulator/rectifier bracket No.2 5. Engine sprocket inner cover
2. Regulator/rectifier bracket No.1 4. Breather cover : 10 N⋅m (1.0 kgf-m, 7.0 lb-ft)
2
1
I717H11A0017-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
