Fuel System: 1G-15

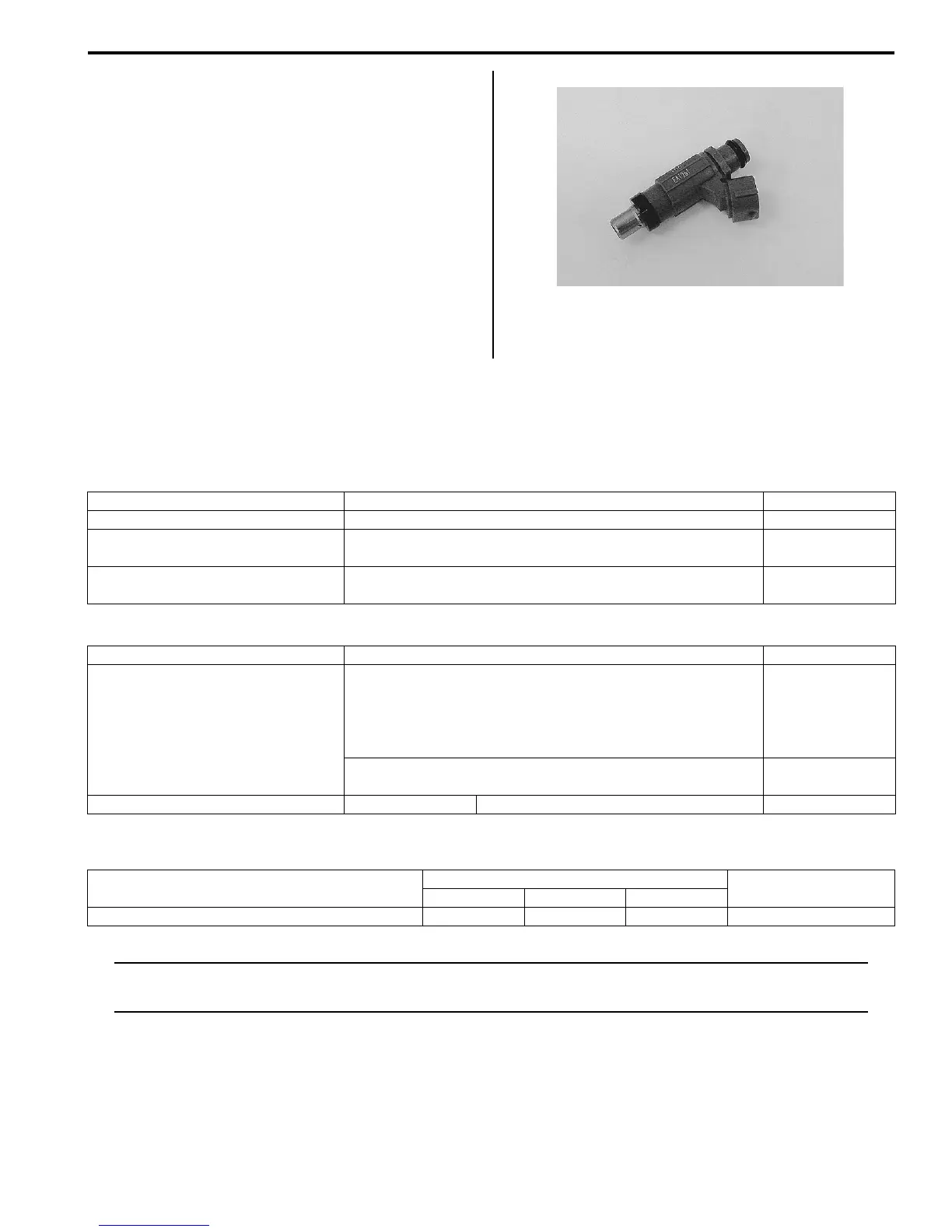

Fuel Injector Inspection and Cleaning
B817H21706018
Inspect the fuel injector in the following procedures:
1) Remove the fuel injector. Refer to “Throttle Body
Disassembly and Assembly in Section 1D (Page 1D-
11)”.
2) Check the fuel injector filter for evidence of dirt and
contamination. If present, clean and check for
presence of dirt in the fuel lines and fuel tank.
3) Install the fuel injector. Refer to “Throttle Body
Disassembly and Assembly in Section 1D (Page 1D-
11)”.
Specifications
Service Data
B817H21707001
Injector + Fuel Pump + Fuel Pressure Regulator
Fuel
Tightening Torque Specifications
B817H21707002
NOTE
The specified tightening torque is also described in the following.
“Fuel Pump Components (Page 1G-10)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List in Section 0C
(Page 0C-7)”.
I718H1170012-01
Item Specification Note
Injector resistance Approx. 11 – 13 Ω at 20 °C (68 °F) —
Fuel pump discharge amount
166 ml and more
For 10 sec., at 300 kPa (3.0 kgf/cm
2
, 43 psi)
—
Fuel pressure regulator operating
set pressure
Approx. 300 kPa (3.0 kgf/cm
2
, 43 psi) —
Item Specification Note
Fuel type
Use only unleaded gasoline of at least 87 pump octane or 91
octane (R/2 + M/2) or higher rated by the research method.
Gasoline containing MTBE (Methyl Tertiary Butyl Ether), less
than 10% ethanol, or less than 5% methanol with
appropriate cosolvents and corrosion inhibitor is permissible.
E-28
Gasoline used should be graded 91 octane or higher. An
unleaded gasoline type is recommended.
Others
Fuel tank capacity Including reserve 19 L (5.0/4.2 US/lmp gal)
Fastening part
Tightening torque
Note
N⋅mkgf-mlbf-ft
Fuel pump mounting bolt 10 1.0 7.0 )(Page 1G-12)
To Next Page
