6B-5 Steering / Handlebar:
3) Insert the spacers (2) between the steering upper
bracket and handlebar holders.
4) Set the handlebars.
5) Tighten the handlebar holder set nuts to the
specified torque.
Tightening torque
Handlebar holder set nut (a): 45 N·m (4.5 kgf-m,
32.5 lbf-ft)

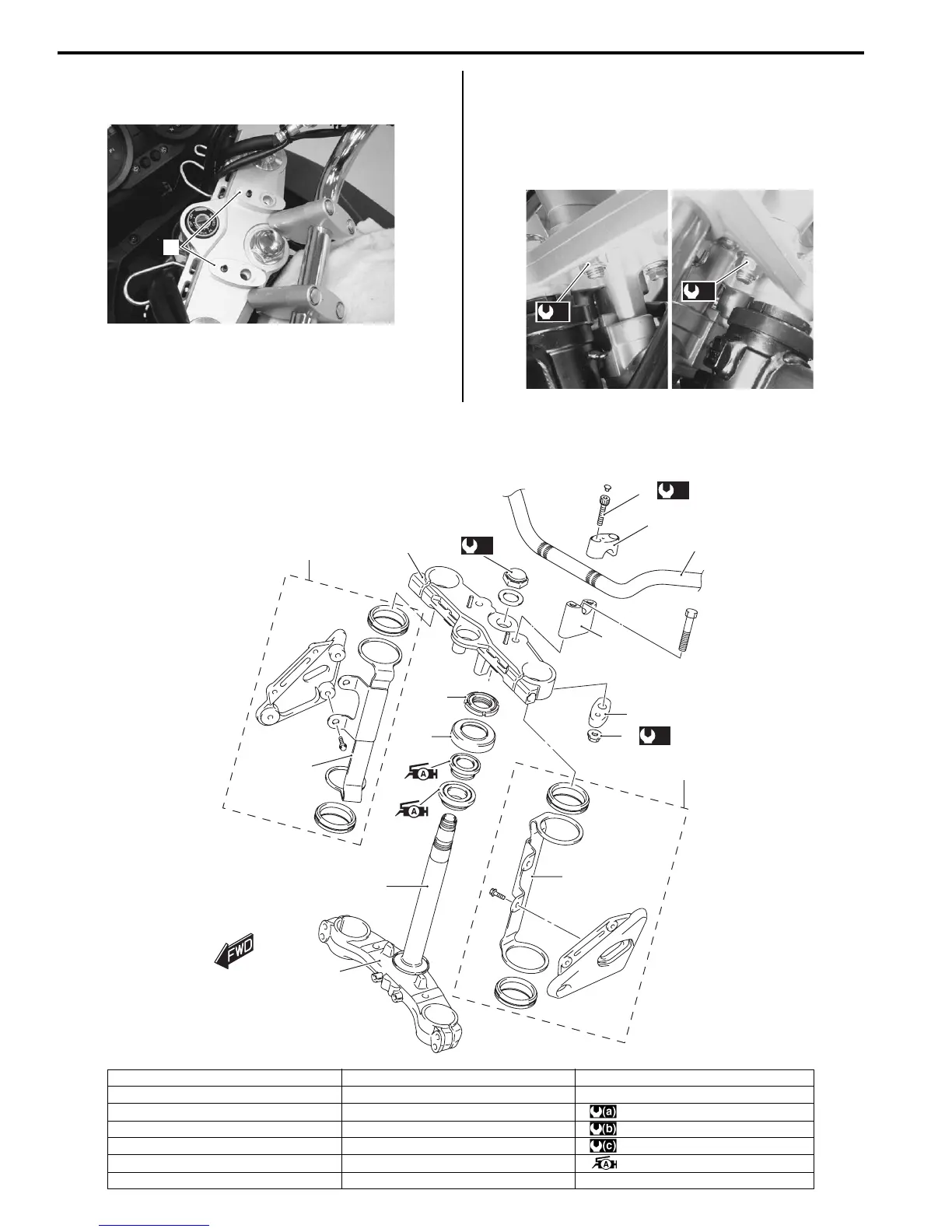

Steering Components
B817H26206006
2
I717H1620009-02
(a)
(a)
I717H1620010-01
3
15
12
11
10
[A]
[A]
15
(a)
1
2
4
(b)
5
6
7
8
9
13
14
(c)
I717H1620035-03
1. Handlebar holder bolt 8. Handlebar holder set nut 15. Headlight housing bracket
2. Handlebar holder (Upper) 9. Steering stem nut [A]: For GSF650
3. Handlebars 10. Dust seal : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
4. Handlebar holder (Lower) 11. Steering stem upper bearing : 65 N⋅m (6.5 kgf-m, 47.0 lb-ft)
5. Steering stem head nut 12. Steering stem lower bearing : 45 N⋅m (4.5 kgf-m, 32.5 lb-ft)
6. Steering stem upper bracket 13. Steering stem lower bracket : Apply grease to bearing.
7. Handlebar spacer 14. Lower seal
