Engine Mechanical: 1D-21

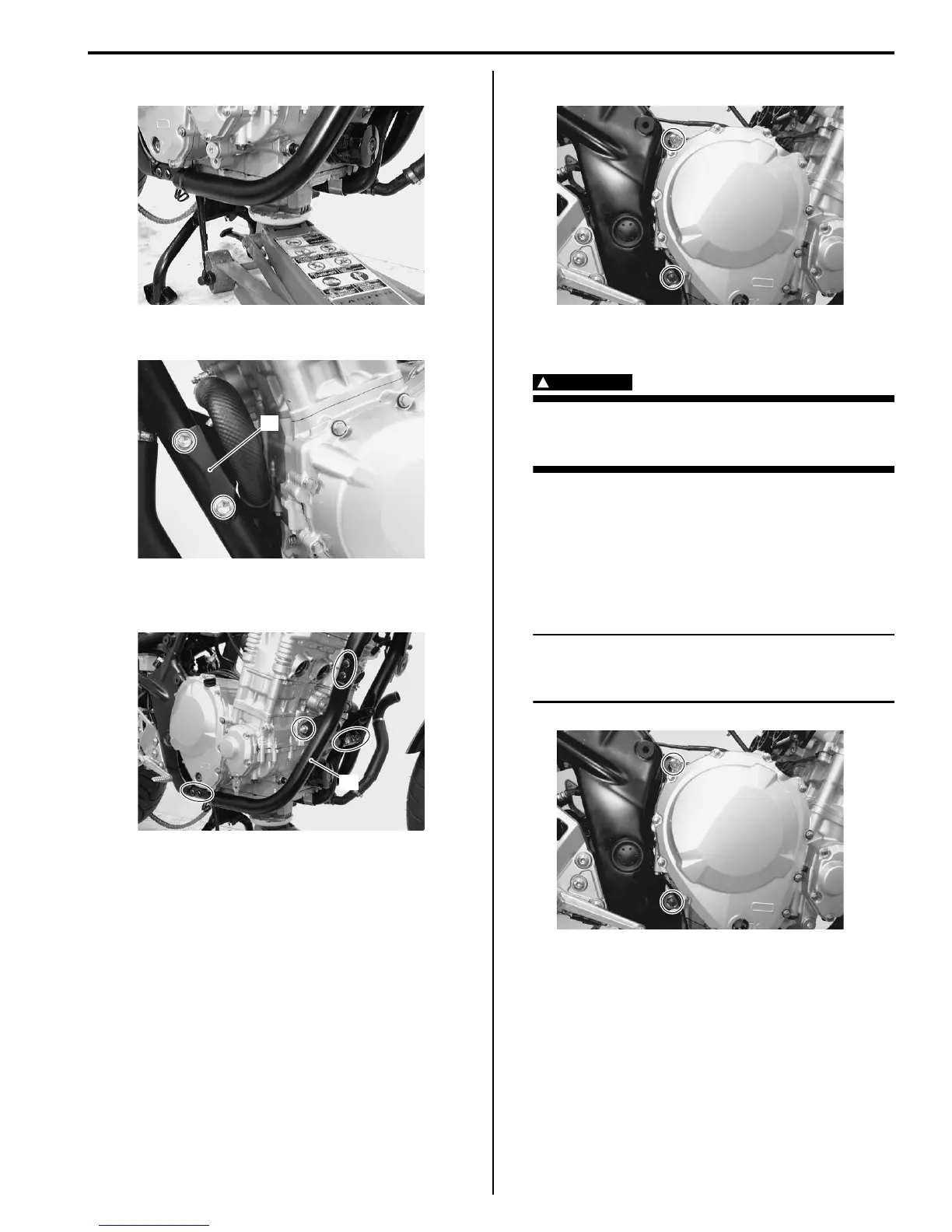

27) Support the engine with a proper jack.
28) Remove the engine mounting bracket (25).
29) Remove the frame down tube (26) by removing their
bolts and nuts.
30) Remove the engine mounting bolts and nuts.
31) Gradually lower the front side of the engine and
remove the engine.
WARNING
!
Care should be taken not to drop the engine
accidentally when the engine mounting bolts
and nuts are removed.
Engine Assembly Installation
B817H21406015
Reinstall the engine in the reverse order of engine
removal. Pay attention to the following points:
• Insert the two mounting bolts from left side, and
tighten their nuts.
NOTE
The engine mounting nuts are self-locking.
Once the nuts have been removed, they are
no longer of any use.
I717H1140052-01
25
I717H1140054-01
26
I717H1140053-02
I717H1140055-02
I717H1140055-02

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
