Suzuki GSF650 Service Manual

6B-11 Steering / Handlebar:
Handlebar Construction (GSX650FK8)
B817H26206012
Specifications
Tightening Torque Specifications
B817H26207001
NOTE
The specified tightening torque is also described in the following.
“Handlebars Components (Page 6B-1)”
“Handlebar Construction (GSF650/S/A/SAK7) (Page 6B-2)”
“Steering Components (Page 6B-5)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque Specifications in Section
0B (Page 0B-24)”.

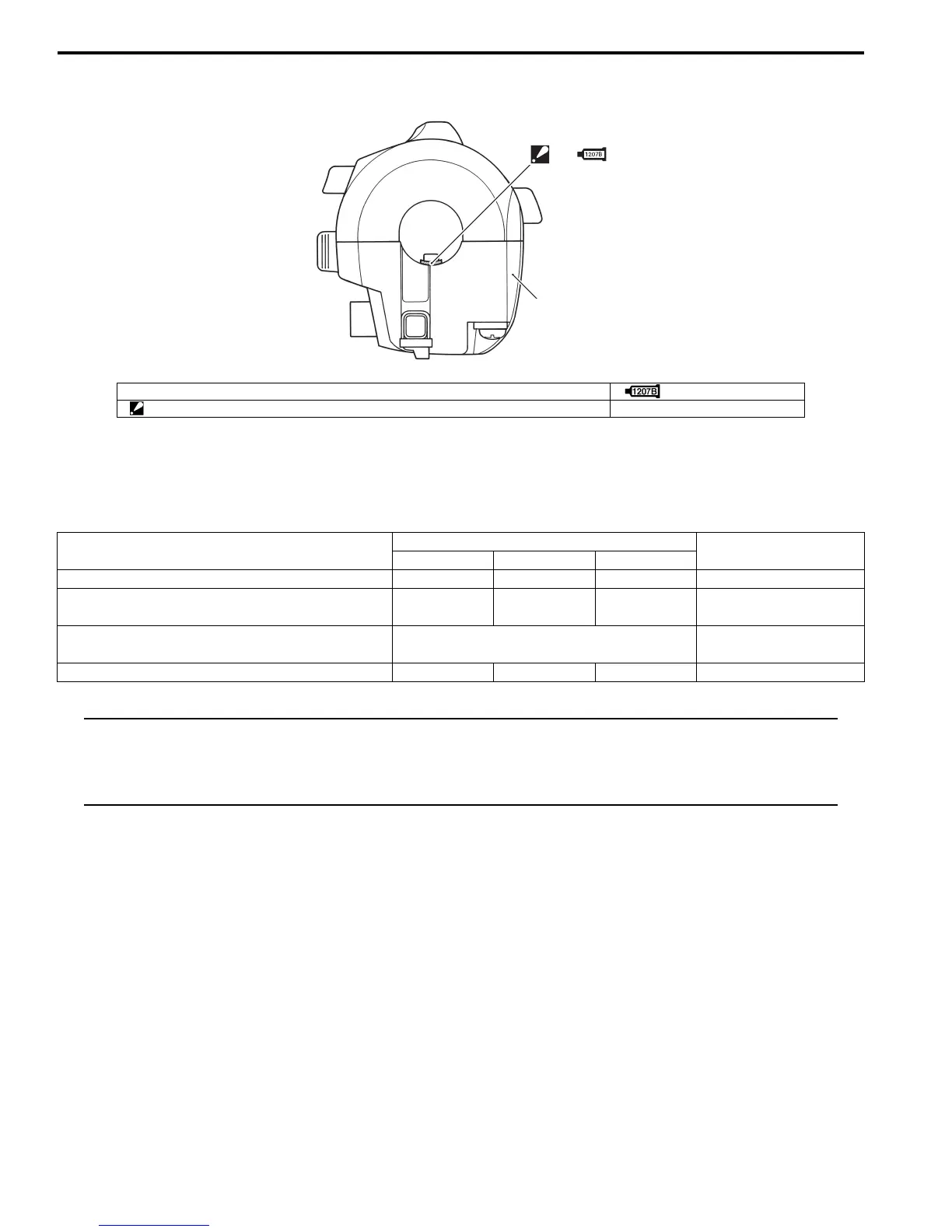

1. Handlebar switch (LH) : Apply bond.
“A”: Apply a small amount of the bond 1207B to inside of the handlebar switchbox.
“A”
1
I817H2620001-01
Fastening part
Tightening torque
Note
N⋅mkgf-mlbf-ft
Handlebar holder bolt 23 2.3 16.5 )(Page 6B-3)
Handlebar holder set nut
45 4.5 32.5
)(Page 6B-5) /
)(Page 6B-8)
Steering stem nut 45 N⋅m (4.5 kgf-m, 32.5 lb-ft) then turn back
1/2 – 1/4.
)(Page 6B-8)
Steering stem head nut 65 6.5 47.0 )(Page 6B-8)

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
