Suzuki GSF650 Service Manual

Combination Meter / Fuel Meter / Horn: 9C-16
Oil Pressure Indicator Inspection (GSX650FK8)
B817H29306024

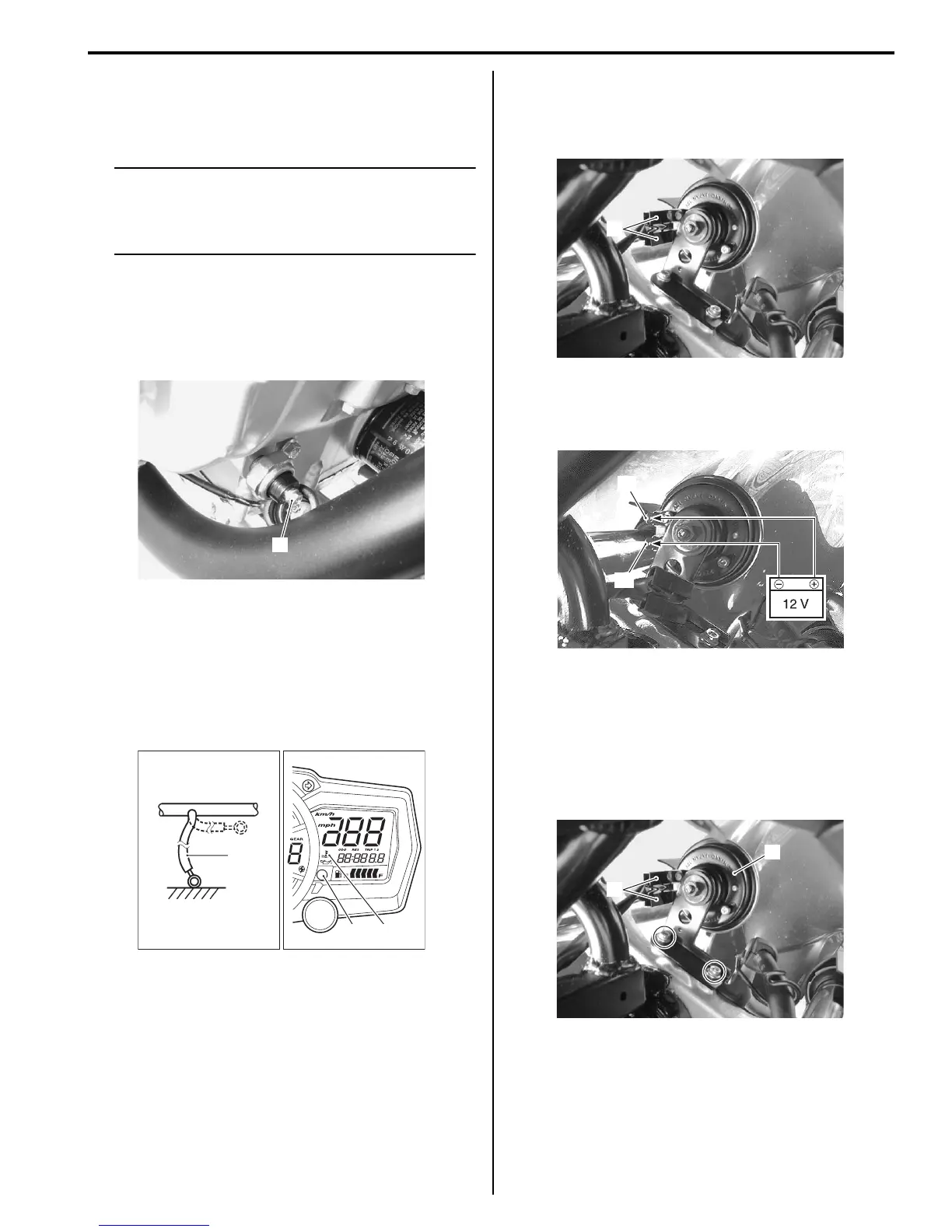

Inspect the oil pressure indicator in the following
procedures:
NOTE
Before inspecting the oil pressure switch,
check if the engine oil level is correct. Refer
to “Engine Oil and Filter Replacement in
Section 0B (Page 0B-12)”.
1) Remove the right under cowling. Refer to “Exterior
Parts Removal and Installation (GSX650FK8) in
Section 9D (Page 9D-14)”.
2) Disconnect the oil pressure switch lead wire (1) from
the oil pressure switch.
3) Turn the ignition switch to ON.
4) Check if the oil pressure indicator (LED) “A” and
(LCD) “B” will light up when grounding the lead wire
(1).
If the oil pressure indicator does not light up, replace
the combination meter unit with a new one after
checking connection of couplers.
Horn Inspection (GSX650FK8)
B817H29306025
Inspect the horn in the following procedures:
1) Disconnect the couplers (1).
2) Connect a 12 V battery to terminal “A” and terminal
“B”. If the sound is not heard from the horn, replace
the horn with a new one.
3) Connect the horn coupler.
Horn Removal and Installation (GSX650FK8)
B817H29306026
Removal
1) Disconnect the horn couplers (1).
2) Remove the horn (2) by removing the mounting nut.
Installation
Install the horn in the reverse order of removal.
1
I717H1930013-01
1
“B”“A”
I817H2930011-02
1
I817H2930012-01
“A”
“B”
I817H2930014-02
1
2
I817H2930013-02
