Suzuki GSF650 Service Manual

2D-9 Wheels and Tires:

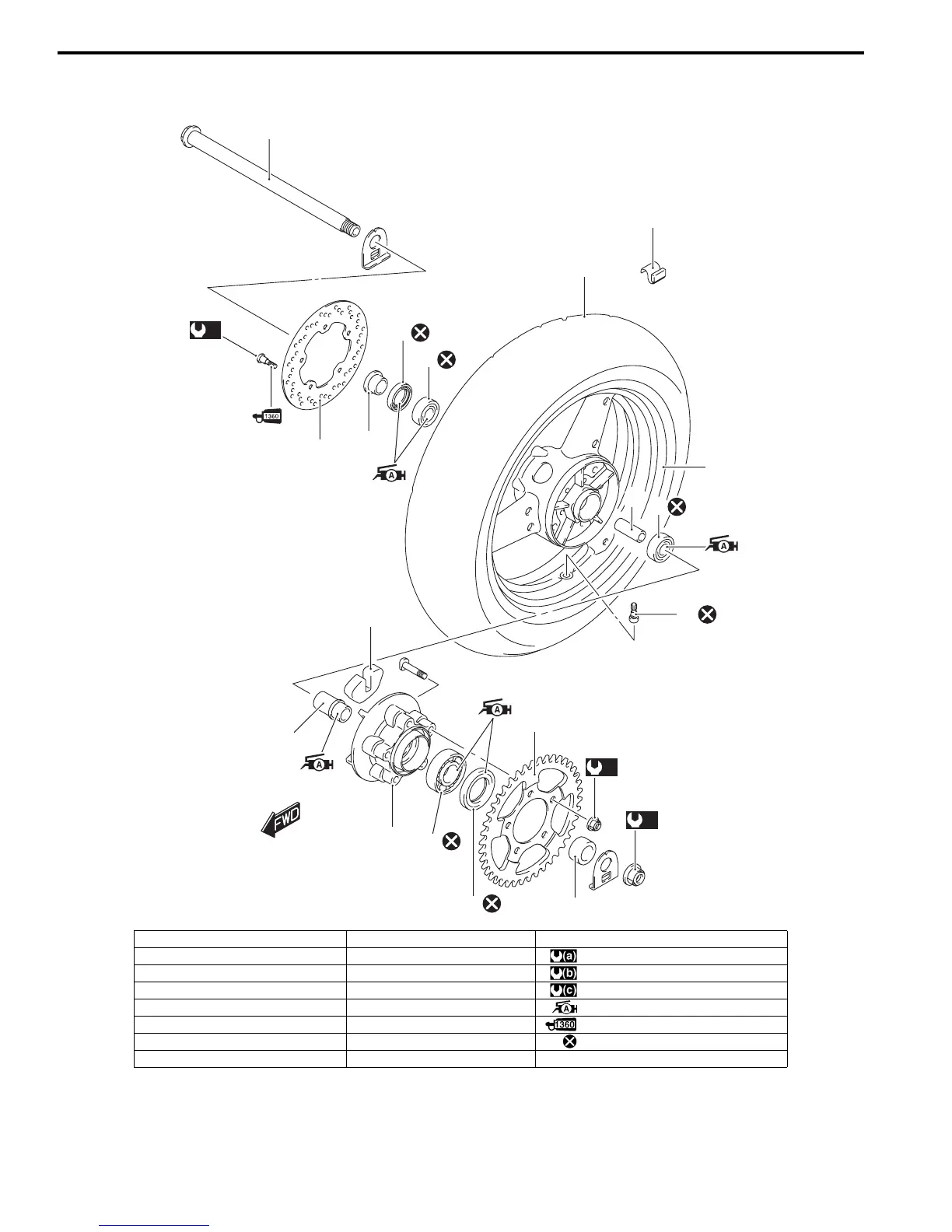

Rear Wheel Components (GSF650/S/U/SUK7)
B817H22406006
5
6
14
15
17
16
1
(a)
2
3
4
5
7
8
9
10
11
12
(b)
(c)
13
I717H1240041-02
1. Rear axle 9. Sprocket mounting drum 17. Wheel balancer
2. Brake disc 10. Bearing : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
3. Spacer 11. Dust seal : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
4. Dust seal 12. Sprocket : 100 N⋅m (10.0 kgf-m, 72.5 lb-ft)
5. Bearing 13. Collar : Apply grease.
6. Spacer 14. Rear wheel : Apply thread lock to thread part.
7. Wheel damper 15. Tire : Do not reuse.
8. Retainer 16. Air valve

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
