Suzuki GSF650 Service Manual

9D-6 Exterior Parts:
3) Push in the head of center piece until it becomes
flush with the fastener outside face.

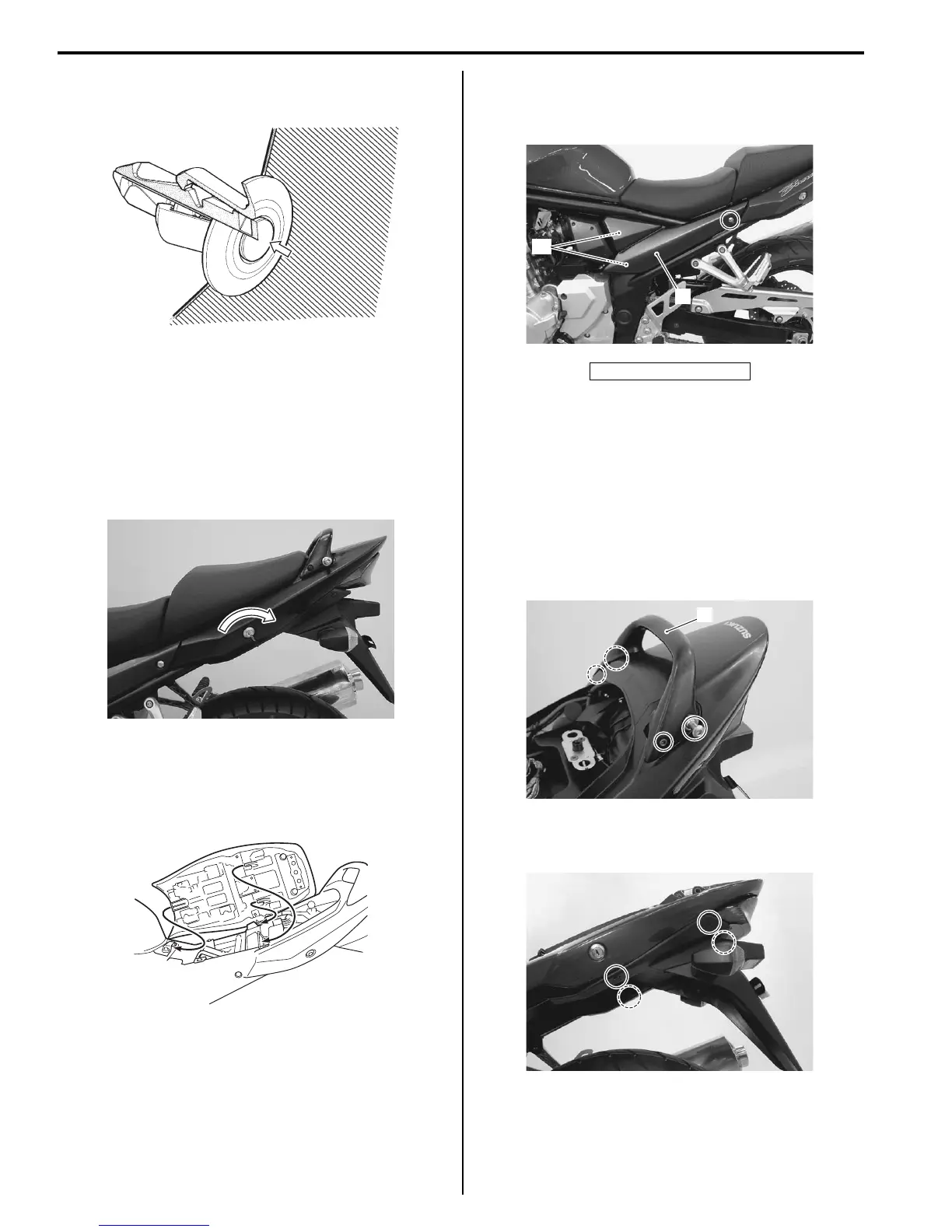

Exterior Parts Removal and Installation
(GSF650/S/A/SAK7)
B817H29406007
Seat
Removal
1) Unlock the seat with the ignition key.
2) Remove the front and rear seats as an assembly.
Installation
Slide the seat hooks into the seat hook retainers and
push down firmly until the seat snaps into the locked
position.
Frame Cover
Removal
Remove the frame covers (1), left and right.
Installation
Install the frame covers in the reverse order of removal.
Pillion Rider Handle and Seat Tail Cover
Removal
1) Remove the seat.
2) Remove the frame covers, left and right.
3) Remove the pillion rider handle (1).
4) Remove the fasteners. Refer to “Fastener Removal
and Installation (Page 9D-5)”.
I649G1940007-02
I717H1940002-01
I718H1940032-03
“A”: Hooked point
1
“A”
I718H1940005-02
1
I717H1940003-01
I718H1940007-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
