Suzuki GSF650 Service Manual

Brake Control System and Diagnosis: 4A-2

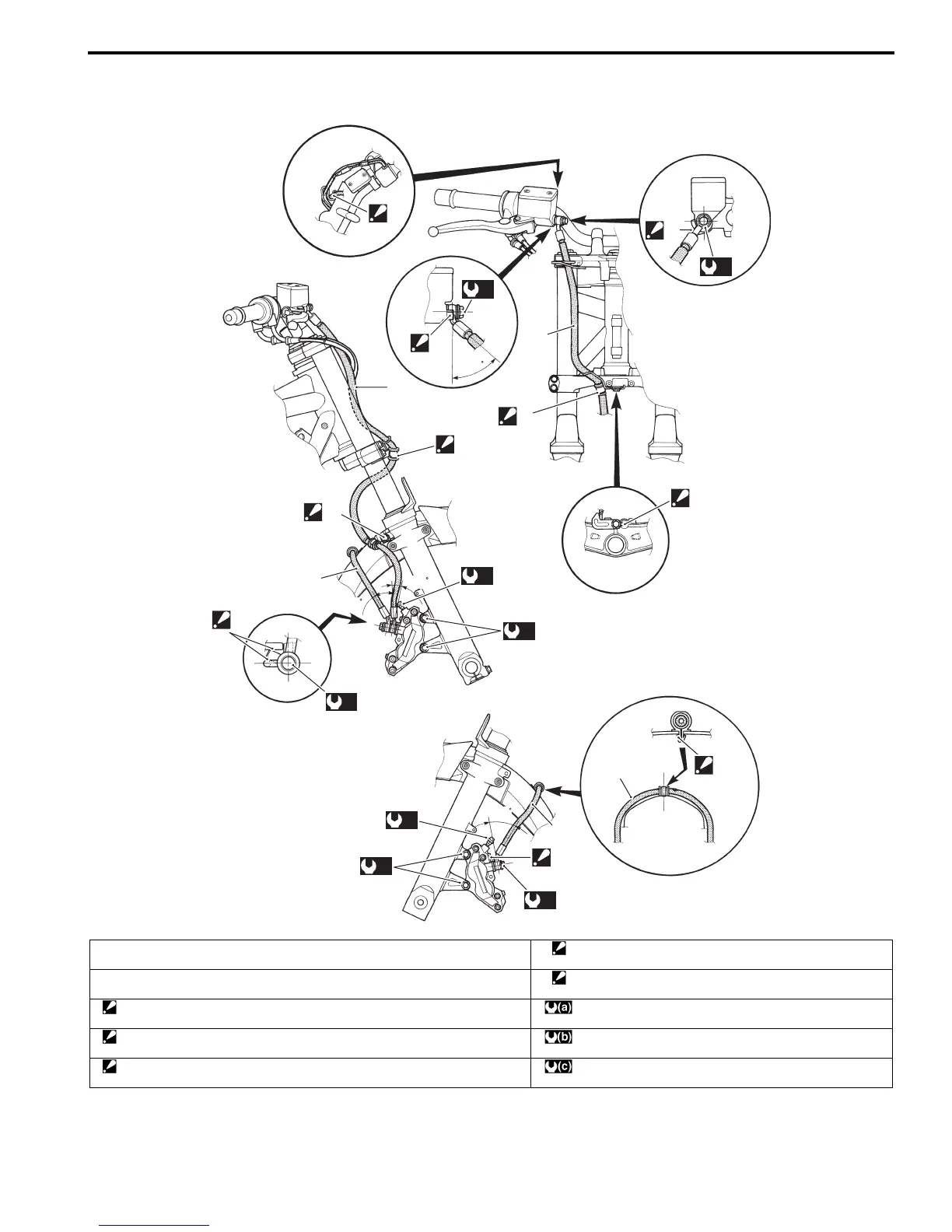

Front Brake Hose Routing Diagram (GSF650S)
B817H24102002
49
7
3
(a)
3
(a)
1
5
4
1
5
2
4
3
14
42
42
(b)
(a)
(c)
(c)
(b)
2
3
(a)
2
6
I717H1410028-01
1. Front brake hose No.1 6: Clamp
: Insert the clamp to the hole of the front fender fully.
2. Front brake hose No.2 7: Front brake hose No.1
: Pass the front brake hose No.1 to the brake hose guide.
3: Stopper
: After the brake hose union has contacted the stopper, tighten the union bolt.
: 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
4: Clamp
: After positioning the clamp with the stopper, tighten the clamp bolt.
: 8.5 N⋅m (0.85 kgf-m, 6.1 lb-ft)
5: Brake hose
: Clamp the brake hose firmly.
: 25 N⋅m (2.5 kgf-m, 18.0 lb-ft)

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
