Suzuki GSF650 Service Manual

Clutch: 5C-4

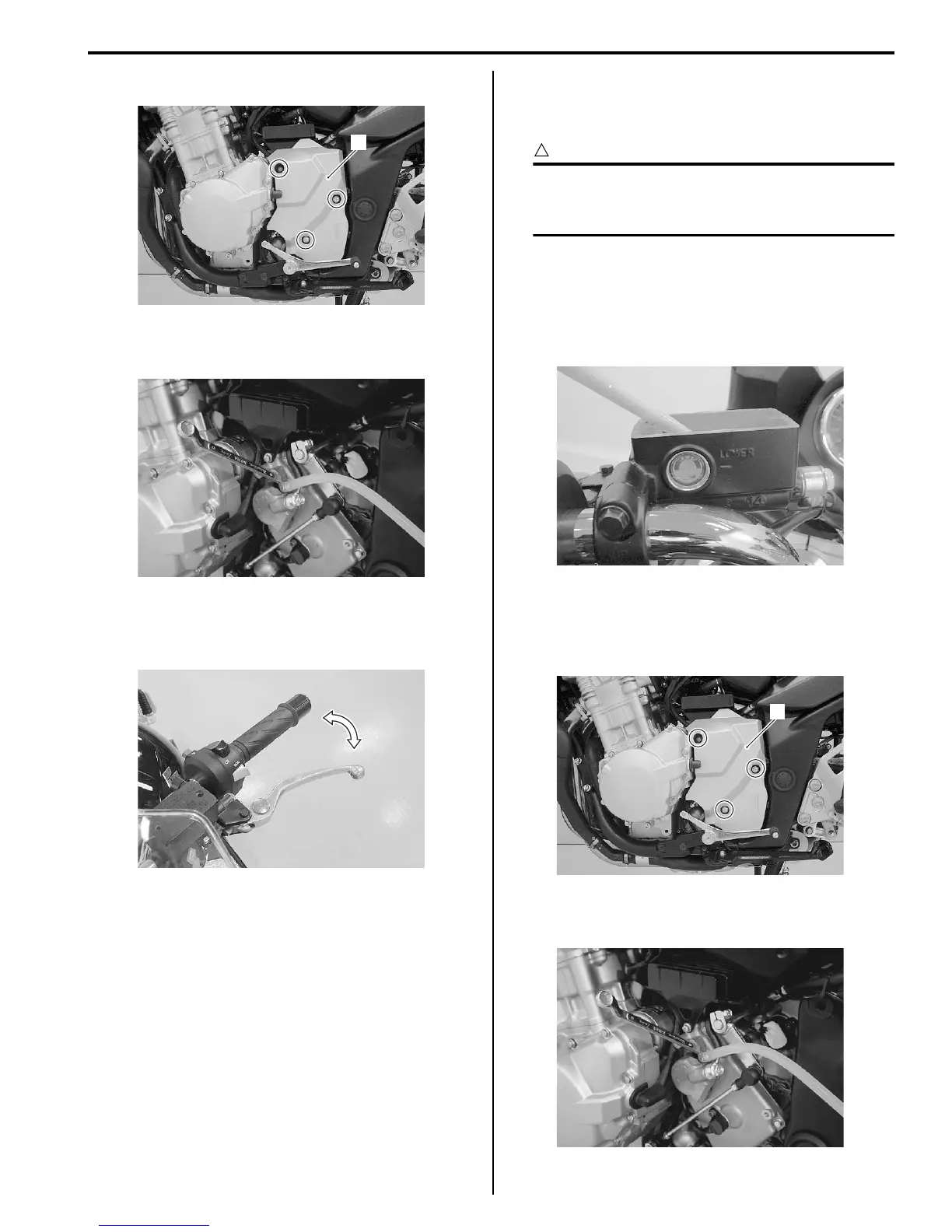

3) Remove the engine sprocket outer cover (1).
4) Attach a pipe to the bleeder valve and insert the free
end of the pipe into a receptacle.
5) Squeeze and release the clutch lever several times
in rapid succession, and squeeze the lever fully
without releasing it.
6) Loosen the bleeder valve by turning it a quarter of a
turn so that the fluid runs into the receptacle; this will
remove the tension of the clutch lever causing it to
touch the handlebar grip.
7) Close the valve, pump and squeeze the lever, and
open the valve.
8) Repeat this process until the fluid flowing into the
receptacle no longer contains air bubbles.
9) Close the bleeder valve and disconnect the pipe.
Tightening torque
Air bleeder valve (Clutch): 6 N·m (0.6 kgf-m, 4.5
lbf-ft)
10) Fill the reservoir with brake fluid to the upper end of
the inspection window.
11) Reinstall the removed parts.
Clutch Fluid Replacement
B817H25306005
CAUTION
!
Handle brake fluid with care: the fluid reacts
chemically with paint, plastic, rubber
materials, etc.
1) Place the motorcycle on a level surface and keep the
handlebars straight.
2) Remove the clutch fluid reservoir cap and
diaphragm.
3) Suck up the old clutch fluid as much as possible.
4) Fill the reservoir with new clutch fluid.
BF: Brake fluid (DOT 4)
5) Remove the engine sprocket outer cover (1).
6) Connect a clear hose to the air bleeder valve and
insert the other end of hose into a receptacle.
1
I717H1530036-01
I717H1530028-01
I718H1530010-01
I718H1530011-01
1
I717H1530036-01
I717H1530028-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
