Suzuki GSF650 Service Manual

Rear Brakes: 4C-2

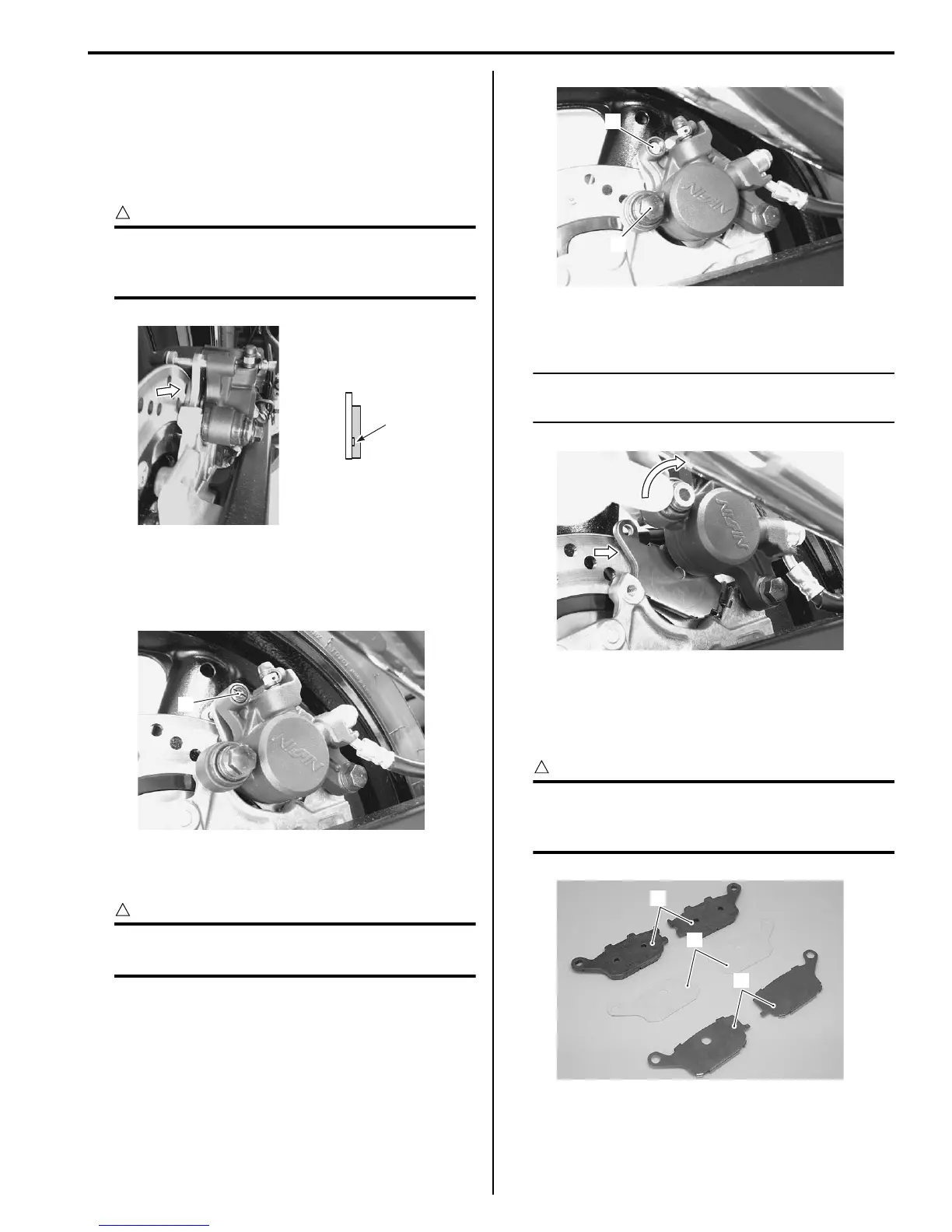

Rear Brake Pad Inspection
B817H24306002
The extent of brake pads wear can be checked by
observing the grooved limit line “A” on the pads. When
the wear exceeds the grooved limit line, replace the
pads with new ones. Refer to “Rear Brake Pad
Replacement (Page 4C-2)”.
CAUTION
!
Replace the brake pad as a set, otherwise
braking performance will be adversely
affected.
Rear Brake Pad Replacement
B817H24306003
1) Remove the plug (1).
2) Remove the pad mounting pin (2).
3) Remove the caliper mounting bolt (3).
CAUTION
!
Do not operate the brake pedal while
dismounting the pads.
4) Remove the brake pads with the rear caliper pivoted
up.
NOTE
When removing the pads, push the piston all
the way into brake caliper.
5) Clean up the caliper especially around the caliper
piston.
6) Assemble the new brake pad (4), insulator (5) and
shim (6).
CAUTION
!
Replace the brake pads as a set, otherwise
braking performance will be adversely
affected.
“A”
I717H1430001-01
1
I717H1430002-01
2
3
I717H1430003-01
I717H1430004-01
5
6
4
I718H1430019-02

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
