Suzuki GSF650 Service Manual

Fuel System: 1G-9

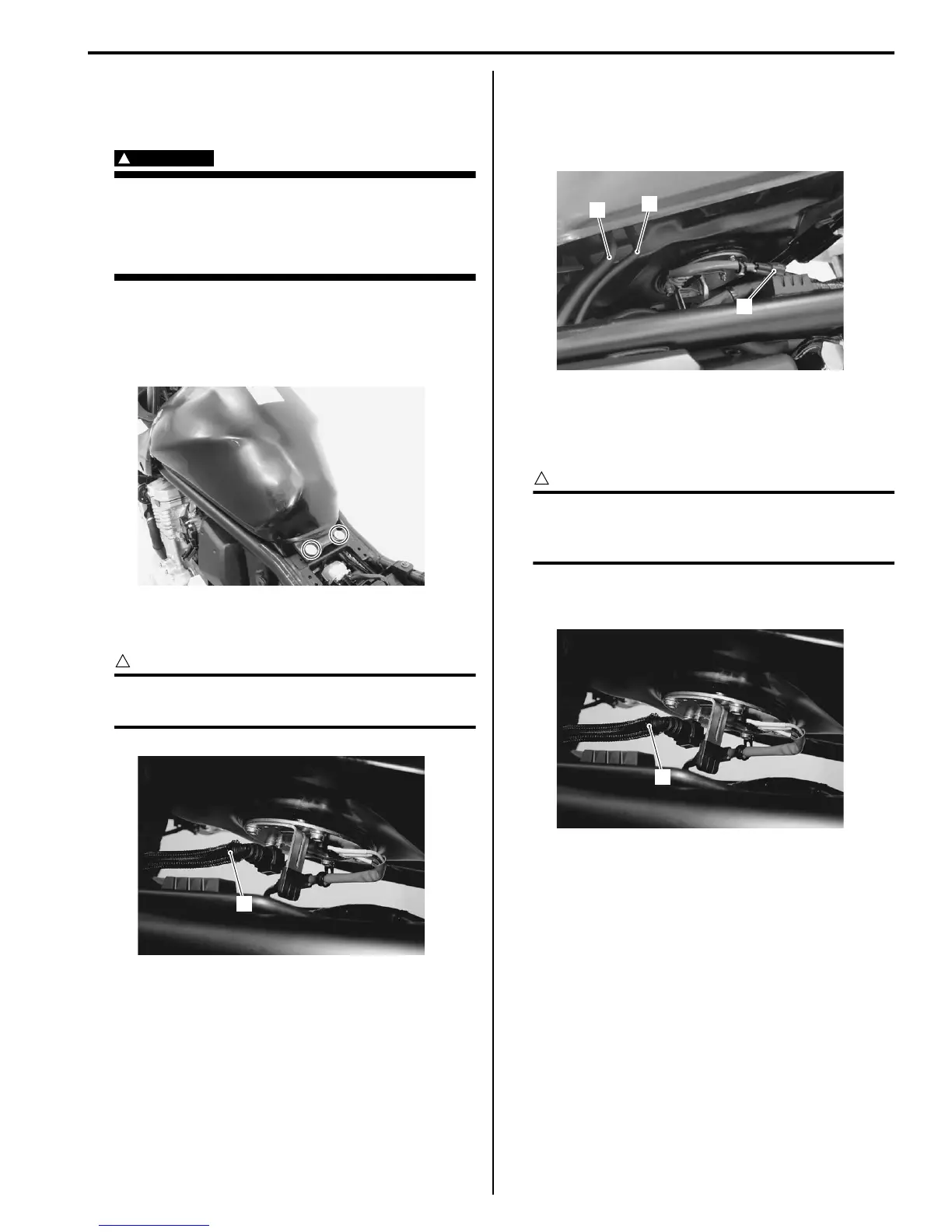

Fuel Tank Removal and Installation
B817H21706010
Removal
WARNING
!
• Keep away from fire or spark.
• Spilled gasoline should be wiped off
immediately.
• Work in a well-ventilated area.
1) Remove the seat. Refer to “Exterior Parts Removal
and Installation (GSF650/S/A/SAK7) in Section 9D
(Page 9D-6)”.
2) Remove the fuel tank mounting bolts.
3) Place a rag under the fuel feed hose and disconnect
the fuel feed hose (1).
CAUTION
!
When removing the fuel tank, do not leave
the fuel feed hose (1) on the fuel pump side.
4) Disconnect the fuel tank air breather hose (2) and
water drain hose (3).
5) Disconnect the fuel pump lead wire coupler (4).
6) Remove the fuel tank.
Installation
Install the fuel tank in the reverse order of removal. Pay
attention to the following points:
CAUTION
!
Be careful not to bend the hoses. Refer to
“Fuel Tank Drain Hose and Breather Hose
Routing Diagram (Page 1G-3)”.
• Connect the fuel feed hose (1) until it locks securely (a
click is heard).
I717H1170006-01
1
I717H1170001-01
2
3
4
I717H1170007-01
1
I717H1170001-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
