Suzuki GSF650 Service Manual

2C-1 Rear Suspension:
Suspension
Rear Suspension
Repair Instructions

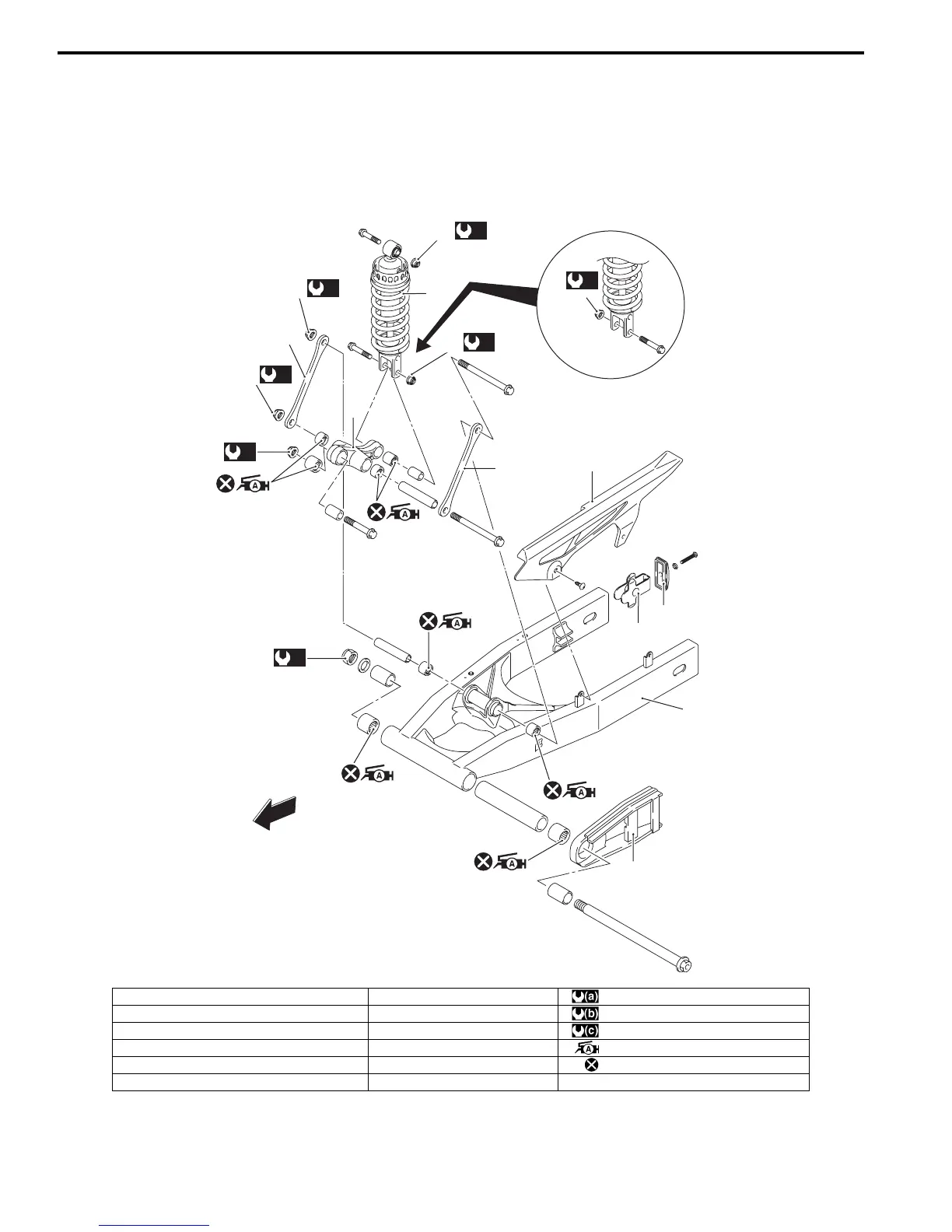

Rear Suspension Components
B817H22306001
(a)
2
From November 2008 production
3
(a)
2
(a)
2
(b)
6
3
(b)
6
(c)
5
4
7
9
10
11
(c)
12
8
1
FWD
FWD
I817H2230001-01
1. Rear shock absorber 7. Chain case : 50 N⋅m (5.0 kgf-m, 36.0 lb-ft)
2. Rear shock absorber mounting nut 8. Swingarm : 78 N⋅m (7.8 kgf-m, 56.5 lb-ft)
3. Cushion rod 9. Chain adjuster : 100 N⋅m (10.0 kgf-m, 72.5 lb-ft)
4. Cushion lever 10. Chain adjuster guide : Apply grease to the bearing.
5. Cushion lever mounting nut 11. Chain buffer : Do not reuse.
6. Cushion rod mounting nut 12. Swingarm pivot nut

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
