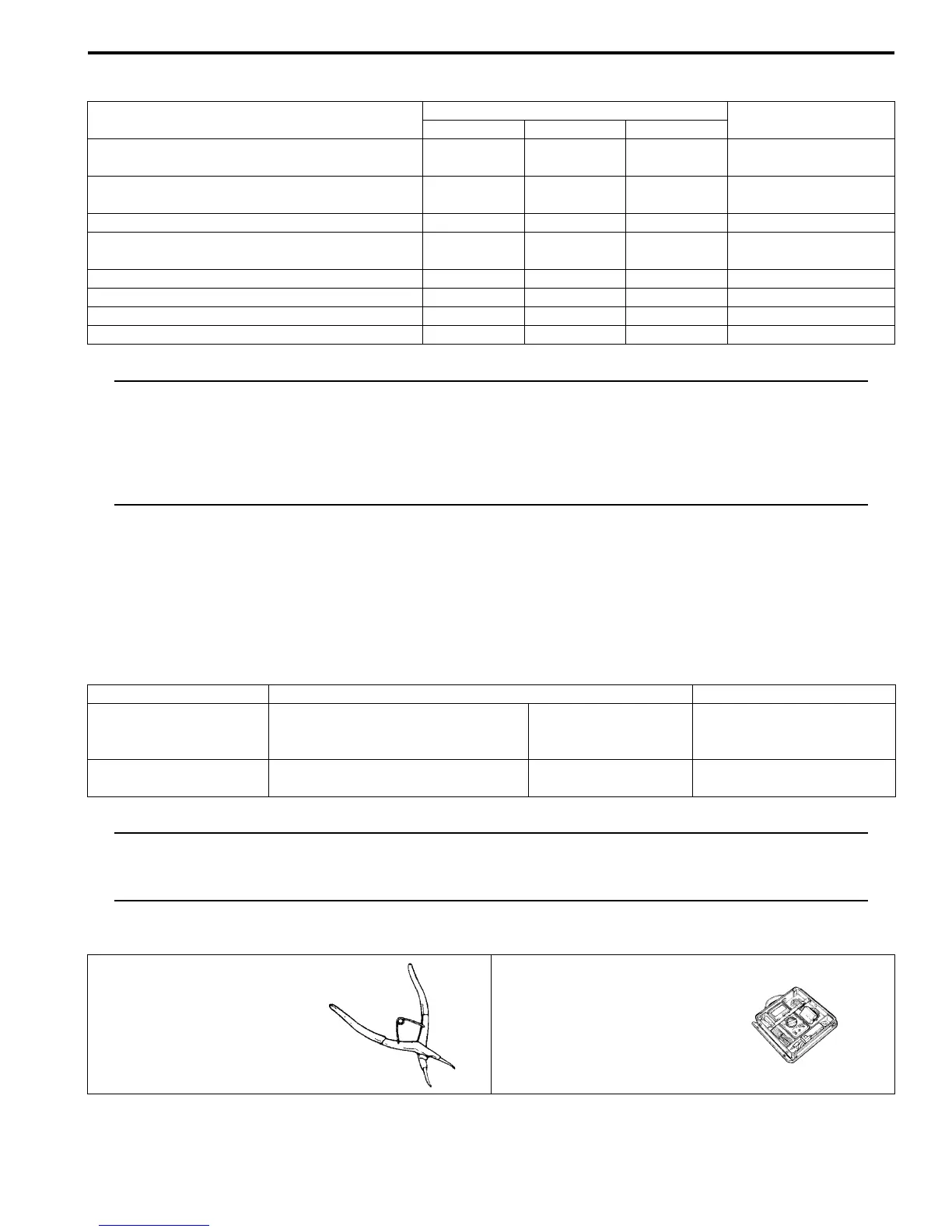

Brake Control System and Diagnosis: 4A-16
Tightening Torque Specifications
B817H24107002
NOTE
The specified tightening torque is also described in the following.
“Front Brake Hose Routing Diagram (GSF650) (Page 4A-1)”
“Front Brake Hose Routing Diagram (GSF650S) (Page 4A-2)”
“Rear Brake Hose Routing Diagram (Page 4A-3)”
“Front Brake Master Cylinder Components (Page 4A-9)”
“Rear Brake Master Cylinder Components (Page 4A-12)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List in Section 0C
(Page 0C-7)”.
Special Tools and Equipment
Recommended Service Material
B817H24108001
NOTE
Required service material is also described in the following.
“Front Brake Master Cylinder Components (Page 4A-9)”
“Rear Brake Master Cylinder Components (Page 4A-12)”
Special Tool
B817H24108002
Fastening part
Tightening torque
Note
N⋅mkgf-mlbf-ft
Air bleeder valve (Front brake)
8.5 0.85 6.1
)(Page 4A-6) /
)(Page 4A-7)
Air bleeder valve (Rear brake)
6 0.6 4.5
)(Page 4A-6) /
)(Page 4A-8)
Master cylinder holder bolt (Upper and Lower) 10 1.0 7.0 )(Page 4A-10)
Brake hose union bolt
23 2.3 16.5
)(Page 4A-10) /
)(Page 4A-13)
Brake lever pivot bolt 6 0.6 4.5 )(Page 4A-11)
Brake lever pivot bolt lock-nut 6 0.6 4.5 )(Page 4A-11)
Rear brake master cylinder mounting bolt 23 2.3 16.5 )(Page 4A-13)
Rear brake master cylinder rod lock-nut 18 1.8 13.0 )(Page 4A-13)
Material SUZUKI recommended product or Specification Note
Brake fluid DOT 4 — )(Page 4A-7) / )(Page 4A-
7) / )(Page 4A-11) /
)(Page 4A-14)
Grease SUZUKI Silicone Grease or
equivalent
P/No.: 99000–25100 )(Page 4A-11) /
)(Page 4A-14)
09900–06108 09900–25008
Snap ring pliers Multi-circuit tester set
)(Page 4A-10) /
)(Page 4A-14)
)(Page 4A-4) / )(Page 4A-
5)
