Suzuki GSF650 Service Manual

9B-7 Lighting Systems:

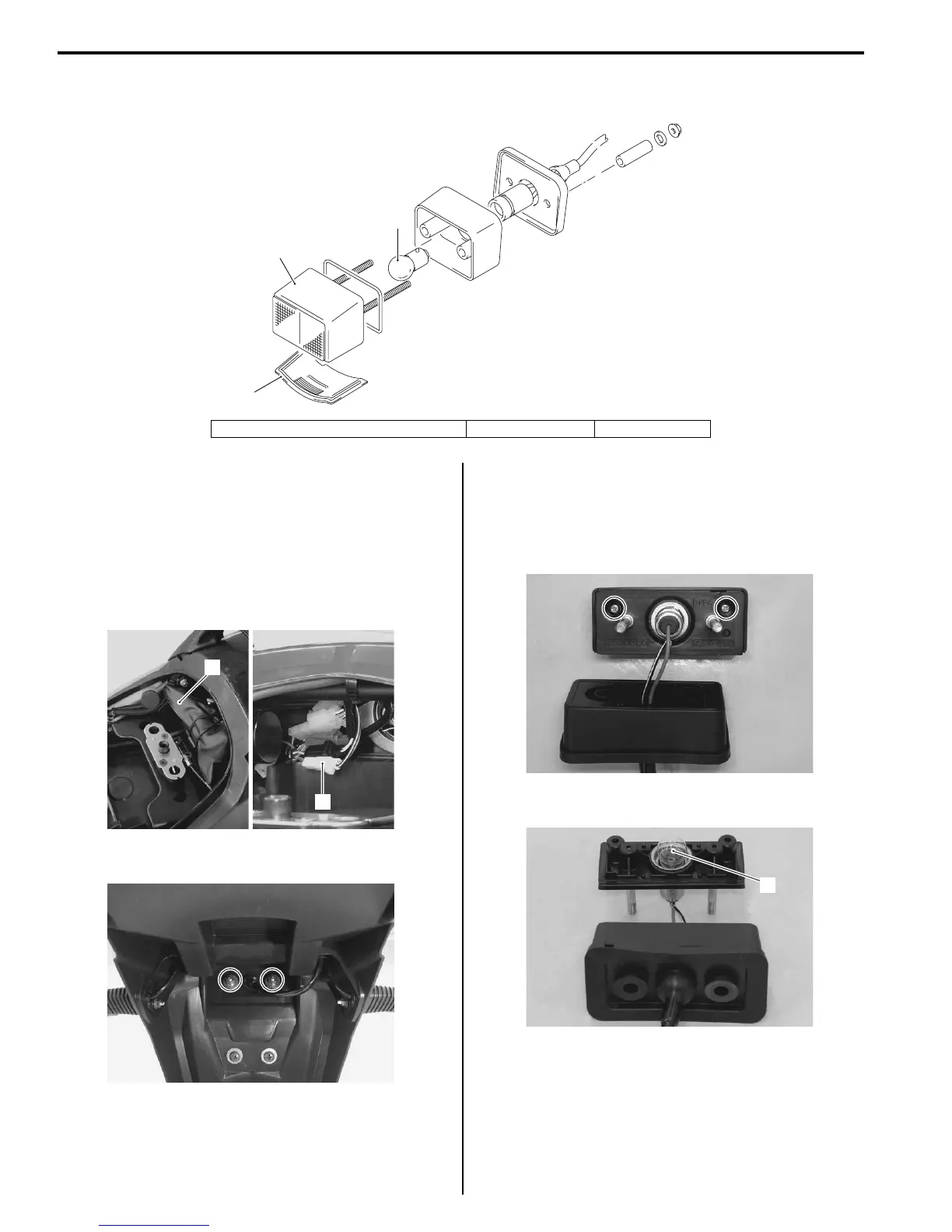

License Plate Light Components
B817H29206010
License Plate Light Removal and Installation
B817H29206011
Removal
1) Remove the seat. Refer to “Exterior Parts Removal
and Installation (GSF650/S/A/SAK7) in Section 9D
(Page 9D-6)”.
2) Remove the tool set (1) and disconnect the license
plate light coupler (2).
3) Remove the license plate light by removing the nuts.
Installation
Install the license plate light in the reverse order of
removal.
License Plate Light Bulb Replacement
B817H29206012
1) Remove the license plate light. Refer to “License
Plate Light Removal and Installation (Page 9B-7)”.
2) Remove the lens by removing the screws.
3) Replace the bulb (1).
4) Reinstall the removed parts.
2
3
1
I649G1920023-03
1. License plate light bulb (12 V 5 W) 2. Lens cover 3. Lens
1
2
I717H1920008-01
I718H1920023-01
I718H1920024-01
1
I718H1920026-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
