ENGINE 3-57

TRANSMISSION

DISASSEMBLY

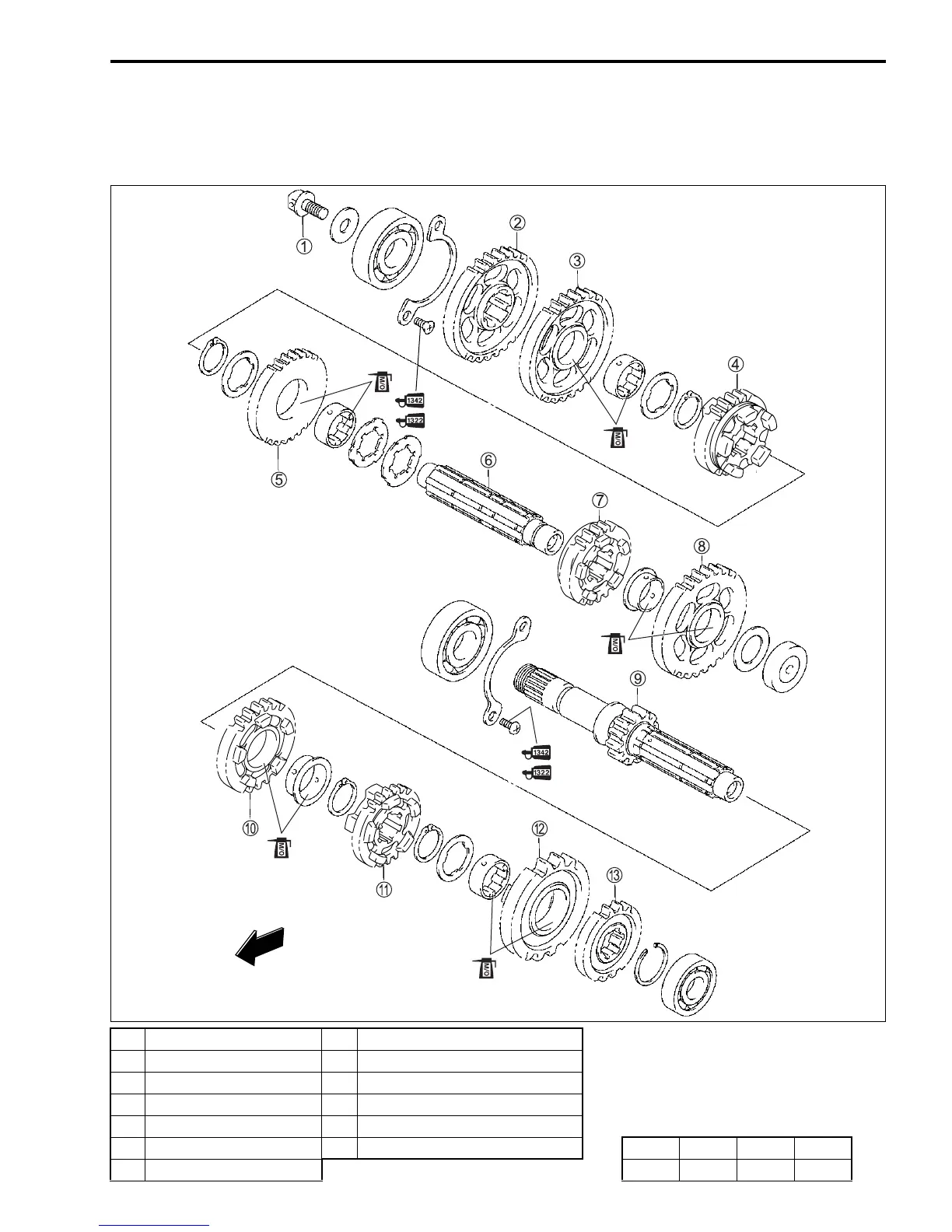

• Disassemble the transmission gears as shown in the illustration.

1 Driveshaft bolt 8 2nd driven gear

2 Over driving gear 9 Countershaft/1st drive gear

3 1st driven gear 0 4th drive gear

4 4th driven gear A 3rd drive gear

5 3rd driven gear B 5th drive gear 

6 Driveshaft C 2nd drive gear ITEM N·m kgf-m lb-ft

7 5th driven gear 1 65 6.5 47.0

FWD

(USA)

(Others)

(USA)

(Others)

SAMPLE
