Suzuki Intruder VZ800 User Manual

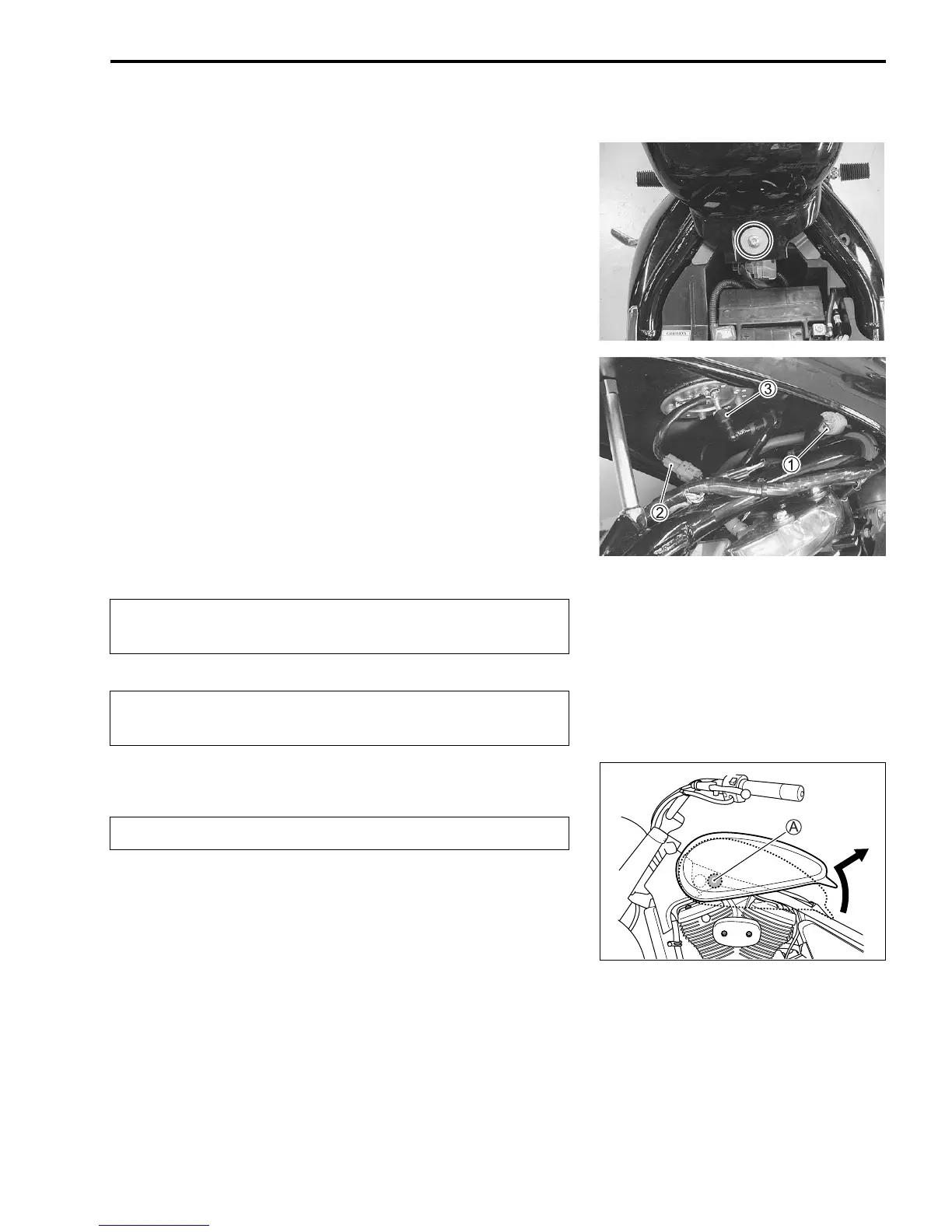

FUEL SYSTEM AND THROTTLE BODY 6-3
FUEL SYSTEM
FUEL TANK REMOVAL
• Remove the seats. (8-3)
• Remove the fuel tank mounting bolt.
• Lift and support the fuel tank about 10 cm (3.94 in) with the
proper stay.
NOTE:
Be careful not to lift the fuel more than about 10 cm (3.94 in), or
hoses will be twisted.
• Remove the pilot lamp coupler 1.
• Disconnect the fuel pump lead wire coupler 2.
• Place a rag under the fuel feed hose and remove the fuel feed
hose 3.


• Remove the fuel tank.

FUEL TANK INSTALLATION
• Installation is in the reverse order of removal.
When removing the fuel tank, do not leave the fuel
feed hose 3 on the fuel tank side.
Gasoline is highly flammable and explosive.
Keep heat, spark and flame away.
Be careful not to damage the frame A by the fuel tank.
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
