Suzuki Intruder VZ800 User Manual

FUEL SYSTEM AND THROTTLE BODY 6-13

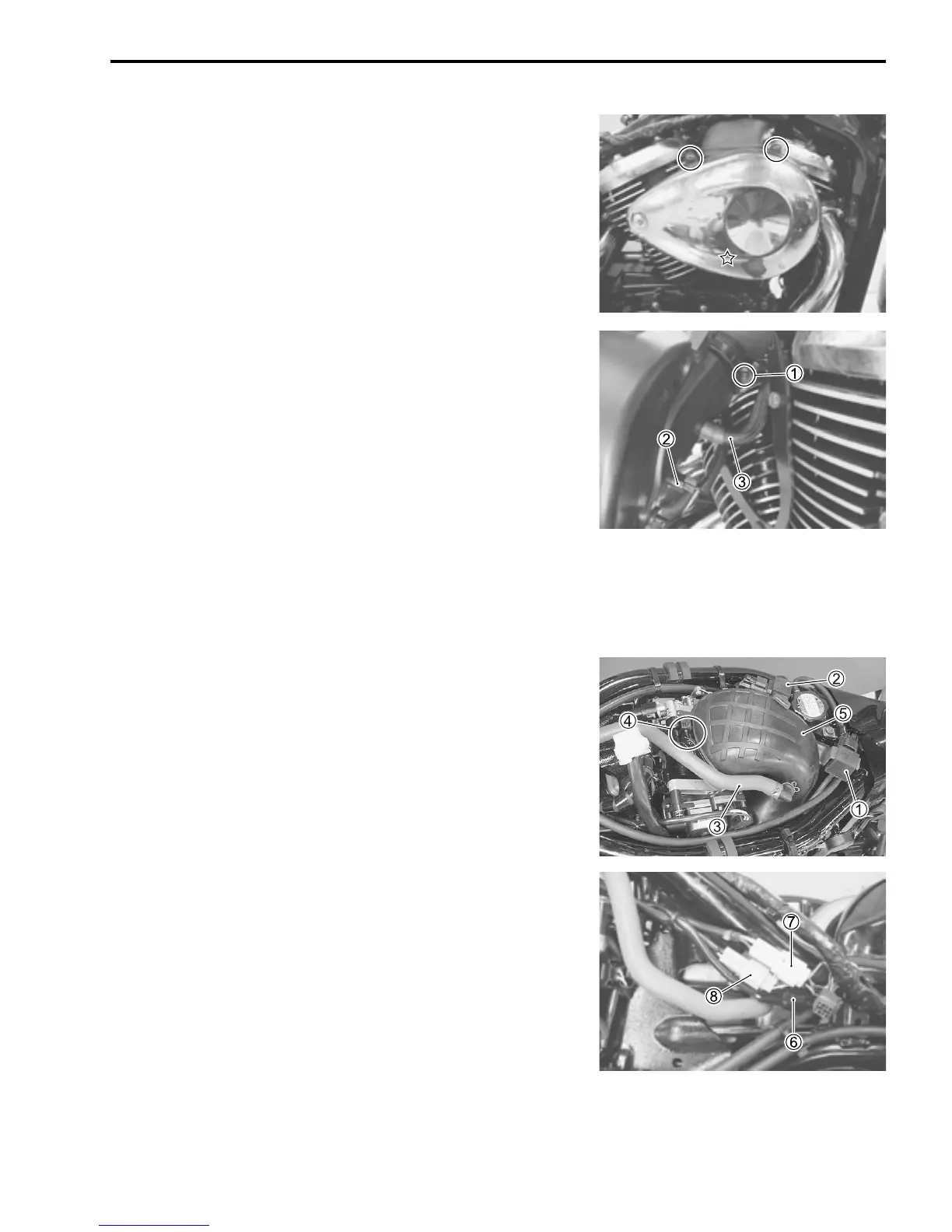

AIR CLEANER BOX REMOVAL
• Remove the fuel tank. (6-3)
• Remove the bolts.
: Hooked part
• Loosen the clamp screw 1.
• Disconnect the IAP sensor lead wire coupler 2.
• Disconnect the PAIR hose 3.
• Remove the air cleaner box.
AIR CLEANER BOX INSTALLATION
Installation is in the reverse order of removal.
THROTTLE BODY REMOVAL
• Remove the air cleaner box. (Above)
• Remove the IAP sensors (Front cylinder side 1 and Rear cyl-
inder side 2) from the mount stay.
• Remove the PCV hose 3 and loosen the clamp screw 4.
• Remove the air intake pipe 5.
• Disconnect the TP sensor lead wire coupler 6, STVA lead
wire coupler 7 and STP sensor lead wire coupler 8.
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
