CHASSIS 8-33

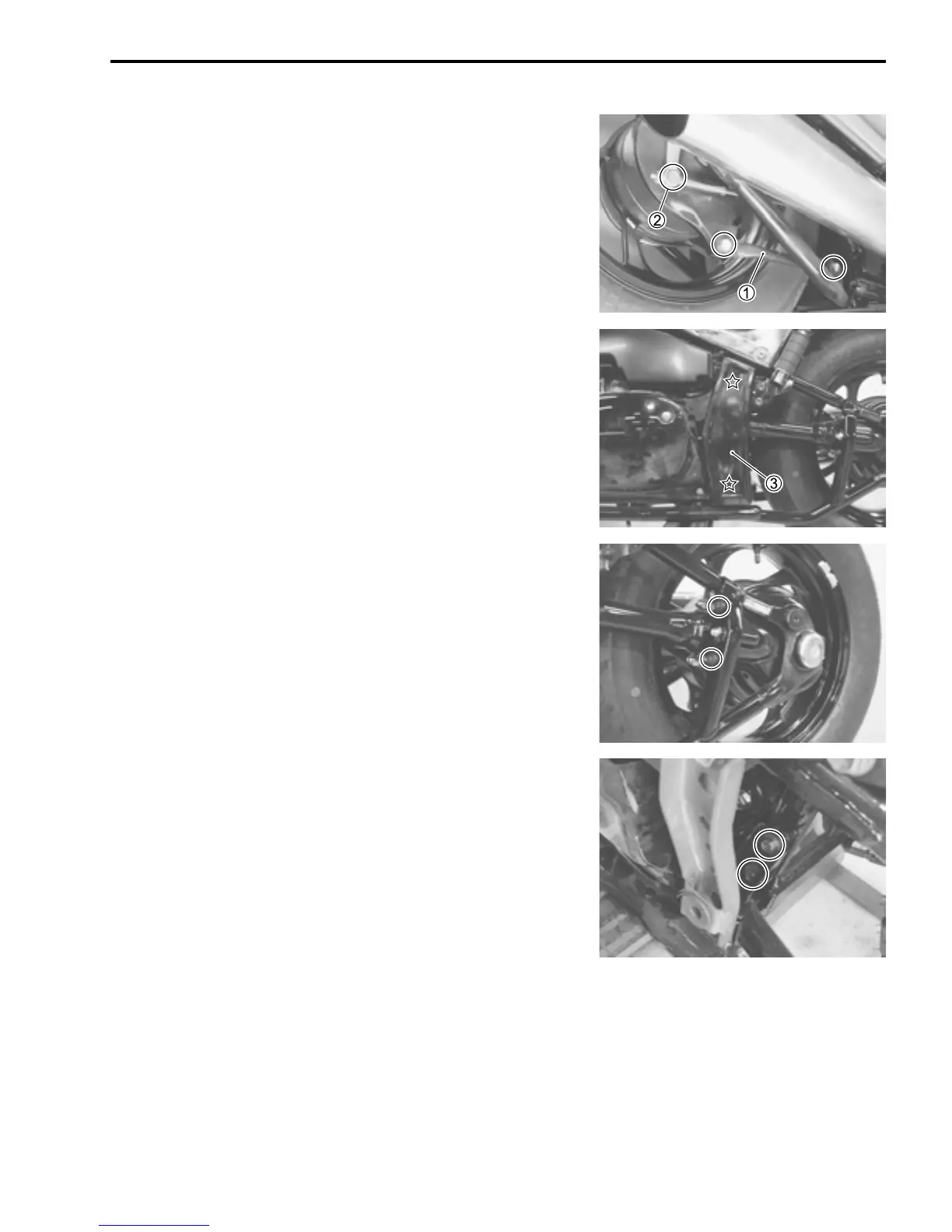

REMOVAL
• Raise the rear wheel off the ground and support the motorcy-
cle with a jack or wooden block.
• Remove the rear brake rod 1.
• Remove the torque link rod 2.
• Remove the left frame cover. (8-3)
• Remove the left frame lower cover 3.
: Hooked part
• Remove the rear swingarm left cover mounting bolts.
• Remove the rear swingarm left cover.
