Suzuki Intruder VZ800 User Manual

CHASSIS 8-7
REMOVAL AND DISASSEMBLY

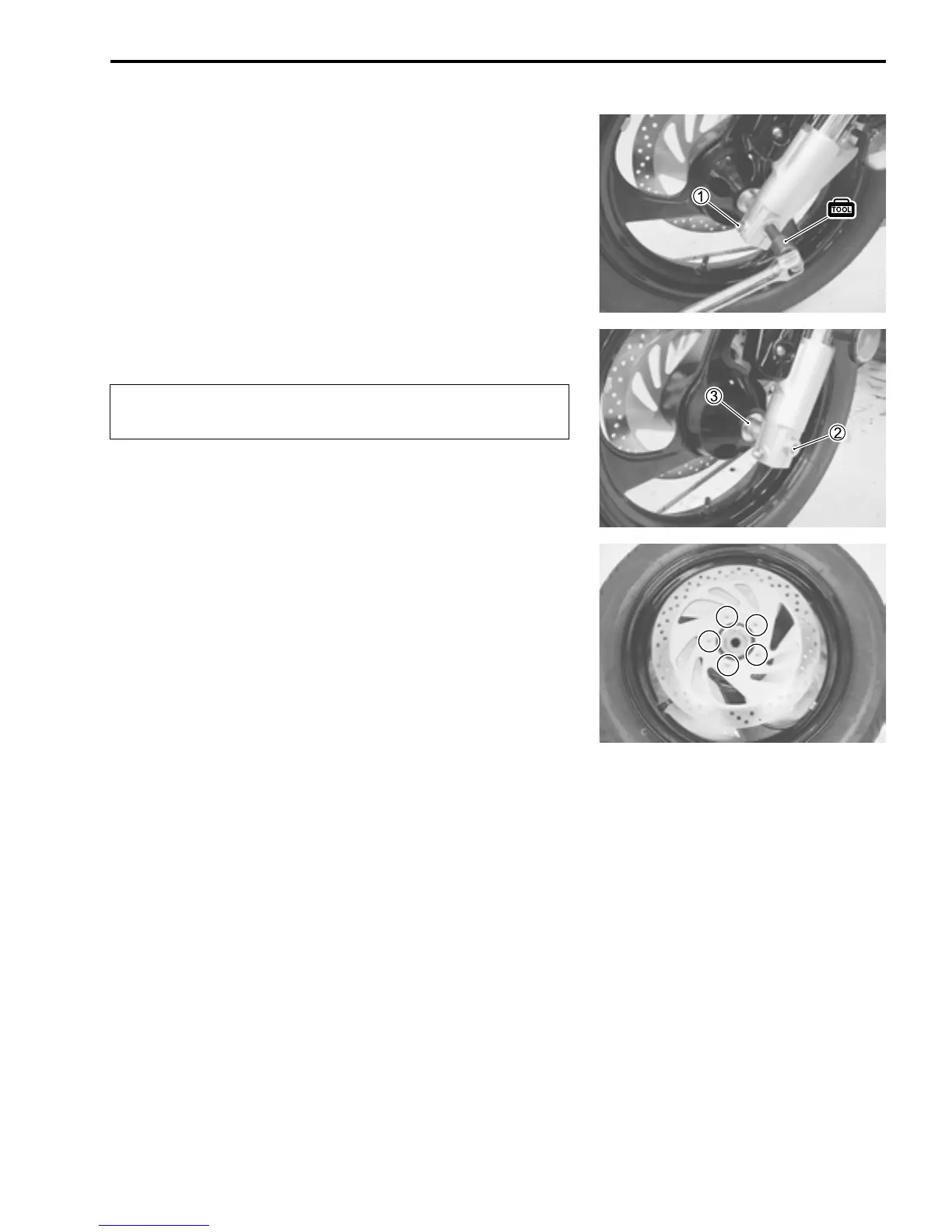

• Loosen the front axle pinch bolt 1.
• Loosen the front axle with the special tool.
 09900-18710: Hexagon socket (12 mm)
• Raise the front wheel off the ground with a jack or a wooden
block.
• Remove the front axle 2, spacer 3 and front wheel.

• Remove the brake disc by removing its bolts.
Do not operate the brake lever during or after front
wheel removal.
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
