CHASSIS 8-65

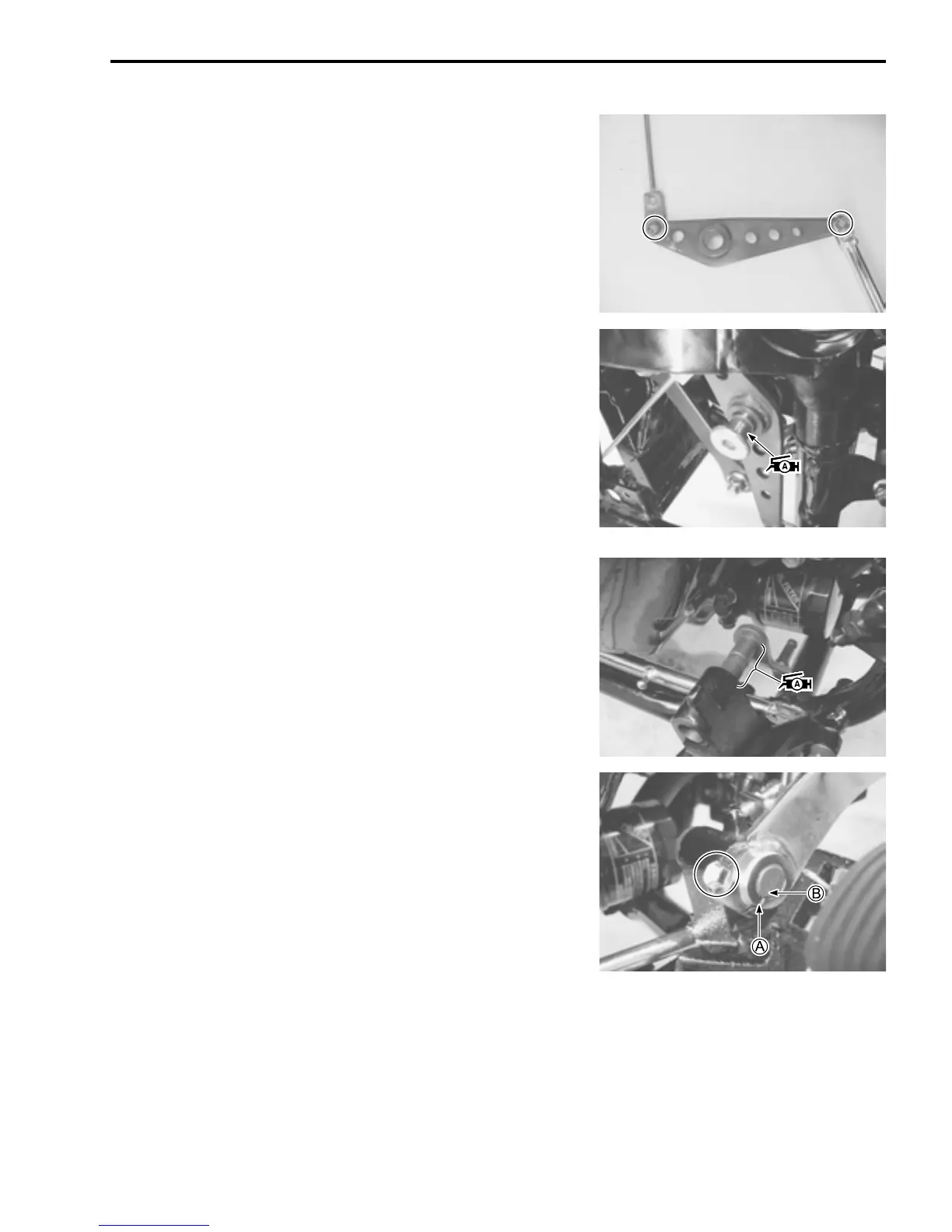

• Remove the cotter pins.
REASSEMBLY REMOUNTING
Reassemble and remount the rear brake rod in the reverse
order of removal and disassembly. Pay attention to the following
points.
• Apply grease to the rear brake link pivot bolt and tighten it to
the specified torque.
 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
 Rear brake link pivot bolt: 29 N·m (2.9 kgf-m, 21 lb-ft)
• Apply grease to the rear brake pedal shaft.
 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
• Tighten the rear brake pedal mount bolt to the specified
torque.
 Rear brake pedal mount bolt: 11 N·m (1.1 kgf-m, 8.0 lb-ft)
NOTE:
* When remounting the rear brake pedal onto the rear brake
pedal shaft, align the rear brake pedal mounting surface A
with the punch mark B.
* After remounting the rear wheel, check for proper brake opera-
tion. (2-21)
• Install the exhaust pipes and mufflers. (3-10)
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
